5.2. Electrical Connection of the D-FL200-20 Transducers
The transducers are delivered with a plug connection. The terminal layout is shown in (Fig. 17) Layout
of the transducer plug
.

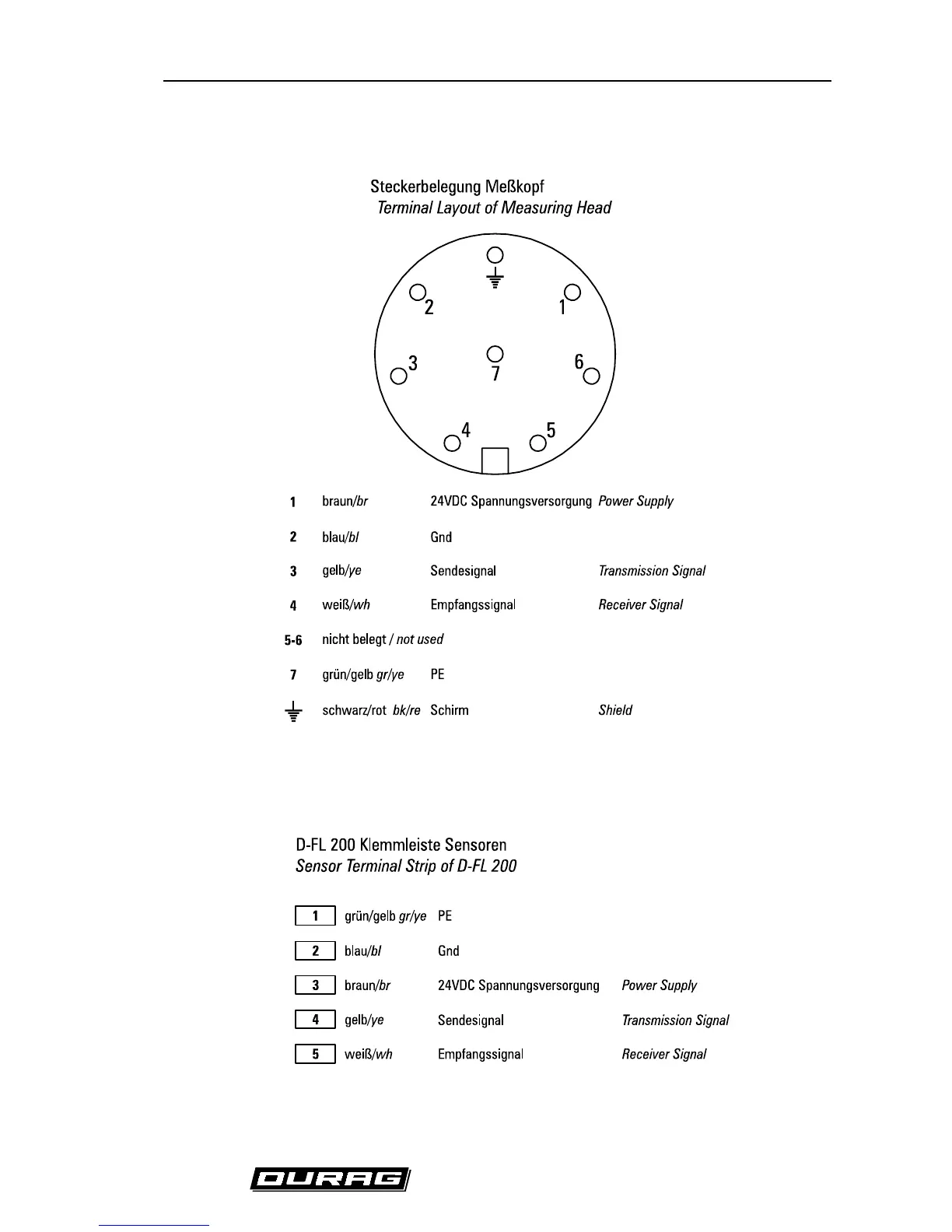

(Fig. 17) Layout of the transducer plug
The sensor electronics are located in the transducer, along with a terminal strip. This terminal strip was
wired to the plug at the factory. The pin-out of this connector is shown in
(Fig. 18) Layout of the
terminal strip on the sensor board.
(Fig. 18) Layout of the terminal strip on the sensor board
