DURAG D-FL 200 - (Fig. 23) Second Page; Parameter

D-FL 200 / Rev. 6 27
______________________________________________________________________________________________________
Industrie Elektronik GmbH & Co KG

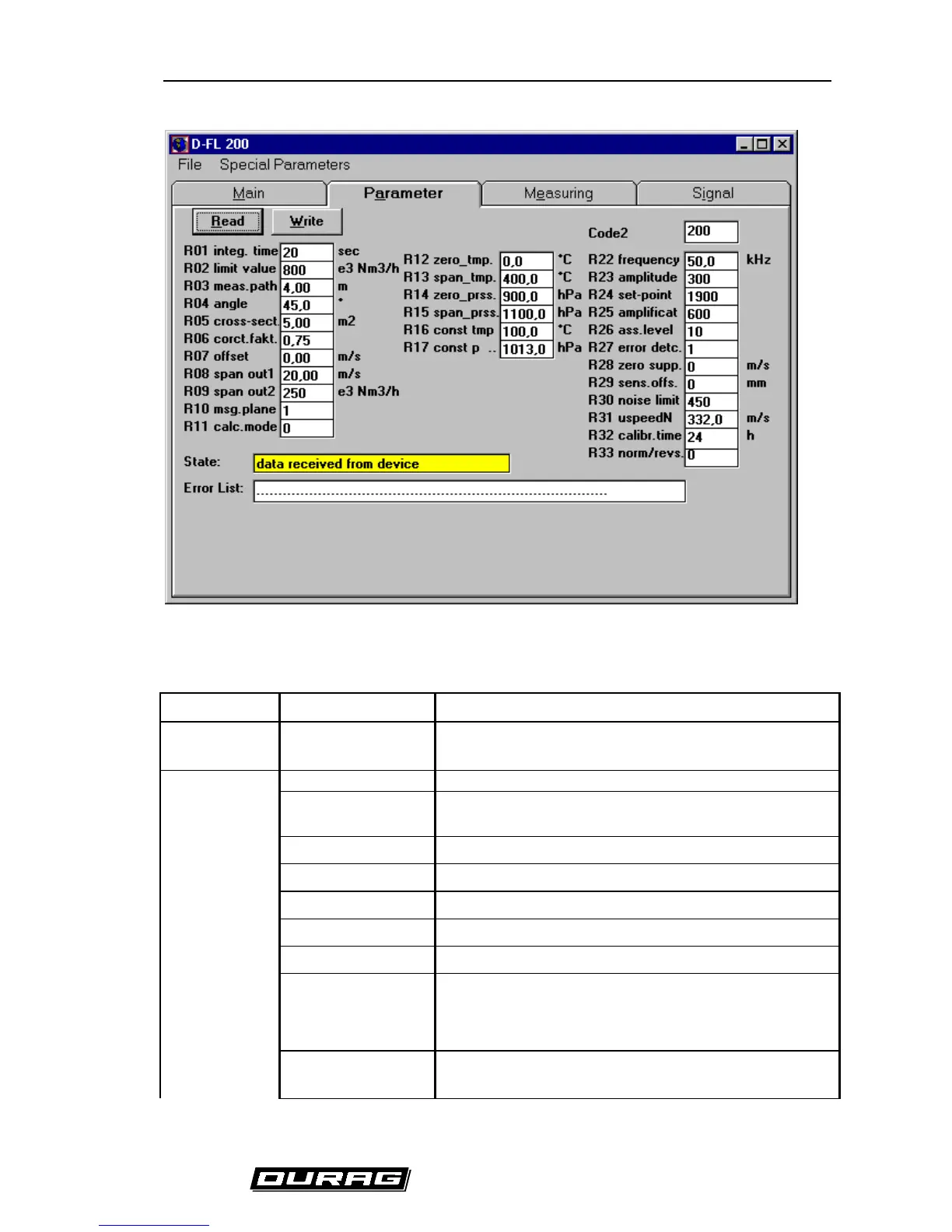

(Fig. 23) Second page / Parameter
Parameter Parameter name Meaning
Code 1
Store release code for parameterisation with
‘STO-Key’
code = 100
R01 integration time Integration time (1-180s)
R02 limit value Limit value 1,in relation to the standard volumetric flow (1-
9999x10
3
Nm
3
/h) (1Nm
3
/h =35,3Nft
3
/h)
R03 measuring path
Measuring path length (0-30m) (1m=3,28ft)
R04 Angle
Angle of installation (0°-80°)
R05 Cross-section
Stack cross section (0-99,99m²) (1m²=10,76ft²)
R06 Corct-factor
Correction factor (0-5)
default 1
R07 Offset
Zero point offset (-2m/s…+2m/s)
default 0
R08 Span mA .out1
Measuring range end value of the mA output for
the standard volumetric flow measurement
(1-99,99x10
3
Nm³/h) (1Nm
3
/h =35,3Nft
3
/h)
R09 Span mA .out2
Measuring range end value of the mA output for
the gas velocity measurement (0-99,99 m/s)
