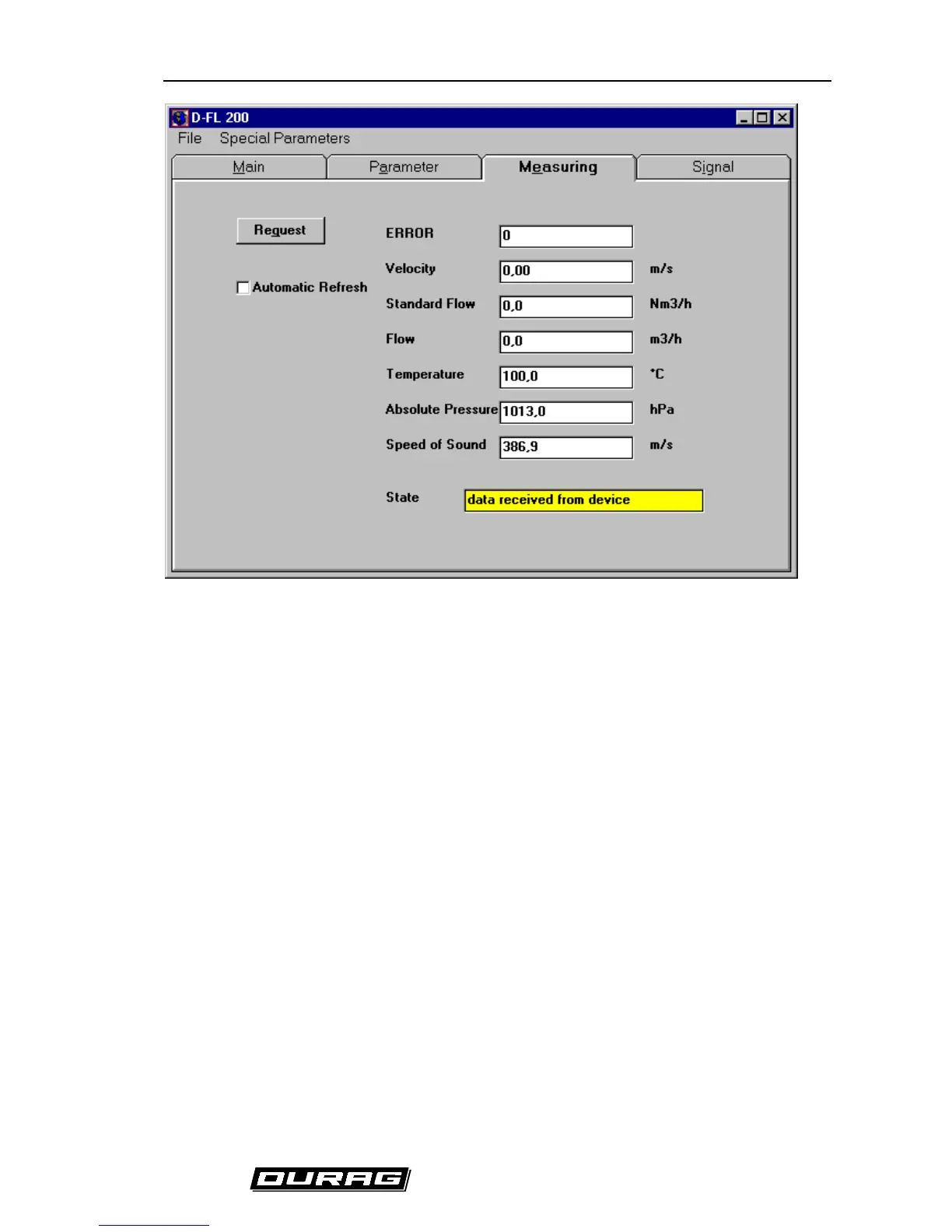

(Fig. 24) Third page / Measuring
Meaning of the items:
Request : single request of measuring values
automatic refresh : automatic refresh every 5 seconds
ERROR : automatically display of the error-code
Velocity : gas velocity [ m/s ] (1m/s=3,28ft/s)
Standard Flow : standard gas flow [ m³/h ] (1m³/h=35,3ft³/h)
Flow : absolute gas flow [ m³/h ] (1m³/h=35,3ft³/h)
Temperature : gas temperature [ °C ] (y[°F]=1,8x[°C]+32)
Absolute Pressure : absolute pressure [ hPa ]
Speed of Sound : stored speed of sound [ m/s ] (1m/s=3,28ft/s)
State : state of communication
- data received from device
- communication error
- data saved in device
