6.12 Setting the sewing-foot stroke
CAUTION !
Subclass -170010; -180010 has no automatic speed restriction.
It is essential to reduce the speed when working with a large
sewing-foot stroke (see the plaque on the sewing-foot-stroke lever).
Excessive speed makes sewing noticeably noisy and causes damage
to the machine.

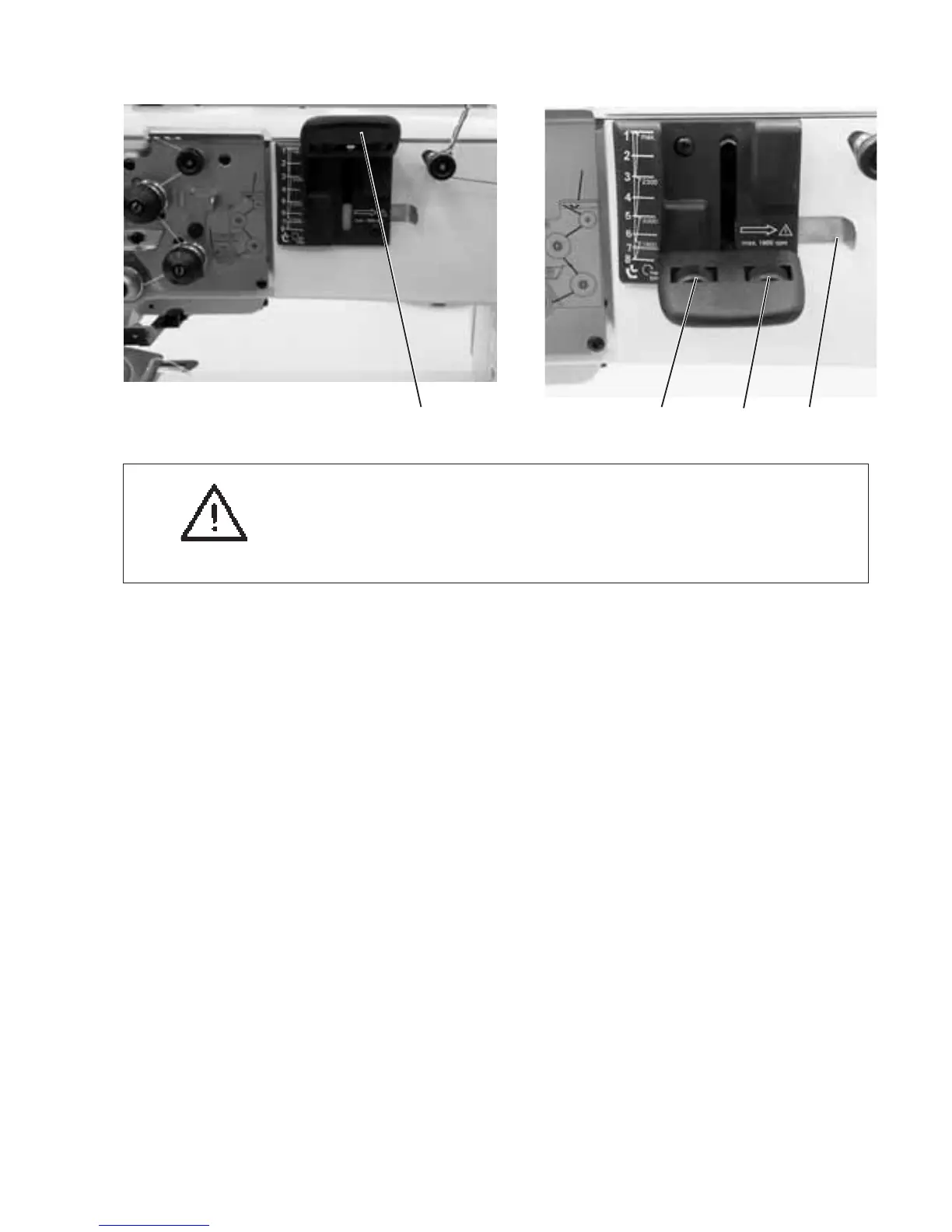

The required sewing-foot-stroke height is adjusted w ith the
sewing-foot-stroke lever 5.
If you have to sew with a s ewing foot stroke larger than 5 mm, the
slide 6 must be shifted to the right.
With the slide 6 actuated, sewn may only be done w ith reduced
speed.
The knurled nuts 3 and 4 integral to the sewing-foot-stroke lever can
be used to set stop screws for the minimum and maximum sewing-foot
stroke.
–
Sewing-foot-stroke lever fully up = minimum sewing-foot-stroke
height.
–
Sewing-foot-stroke lever fully down = maximum s ewing-foot-stroke
height.
19
5
436
