7. EFKA DC1600/DA82GA direct-current positioning actuator
7.1 General
Operation
The DC1600/DA82GA sewing drive must be commissioned and
operated with the V810 or V820 operating panel.
Operating instructions
These operating instructions give the key functions and the meaning of
the operating-panel symbols, and describe how operator-level
parameter values are changed by the operator.
For a detailed description of the control please consult the “EFKA
DA82GA” operating manual.
Functions of the DA82GA sewing-drive control
The functions of the DA82GA sewing-drive control are determined by
the program and the parameter settings. When parameter values are
correct the control is properly set for the relevant class and subclass.
Actuator parameter values are pre-set by EFKA prior to delivery.
Certain parameters must be altered for each c lass and subclass: see
the set-up instructions. All parameters are correctly set on delivery.
Access authorisation for command entry
To prevent the unwanted alteration of pre-set functions there are three
levels of command entry. These are as follows:
-themanufacturer has access to the highest level and all
subordinate levels with a code number. “manufacturer level”
-thetechnician has access to the two lower
levels with a code number. “technician level”
-theoperator has access to the lowest level with no code number.
“operator level”
7.2 V810 operating panel

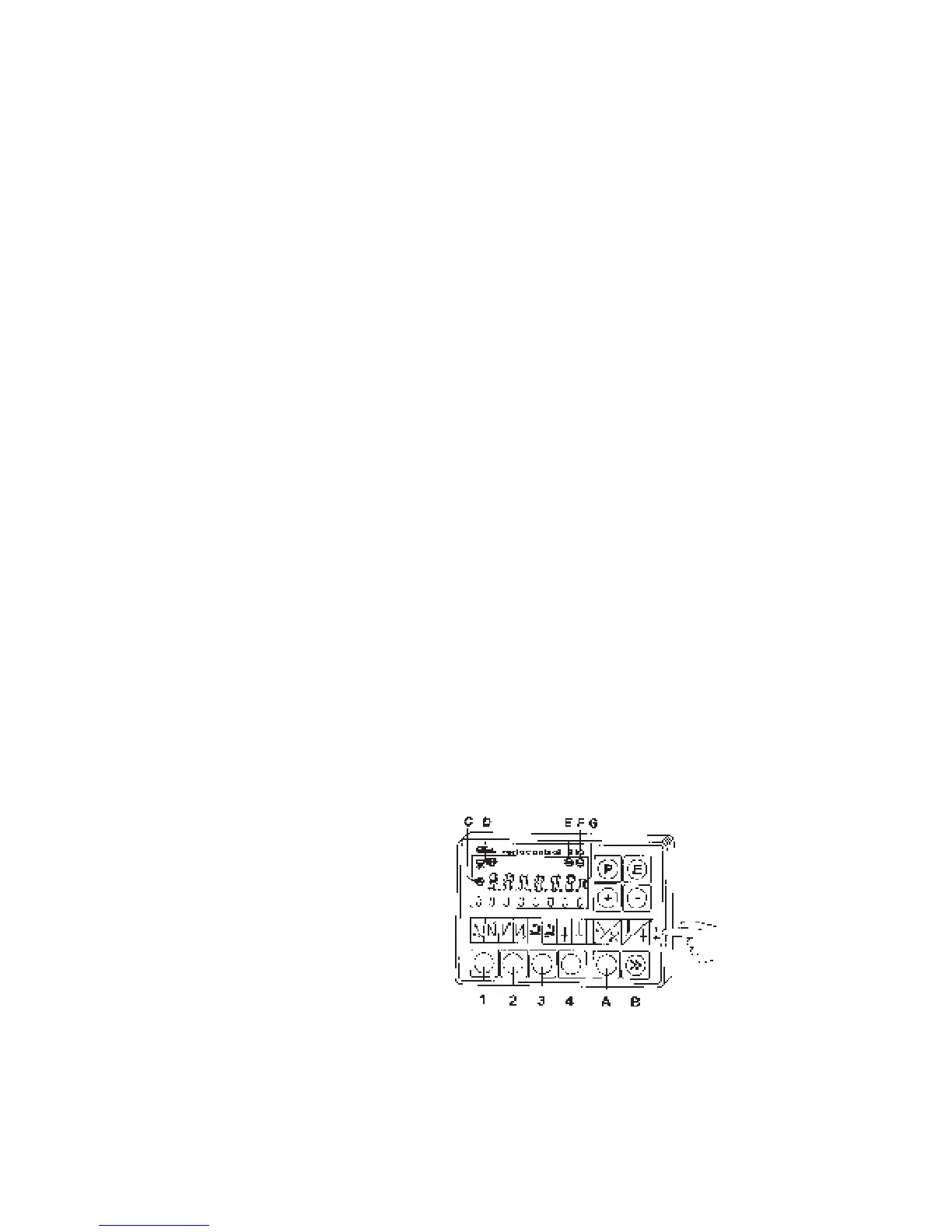

7.2.1 Operating and display elements on the V810 operating panel
