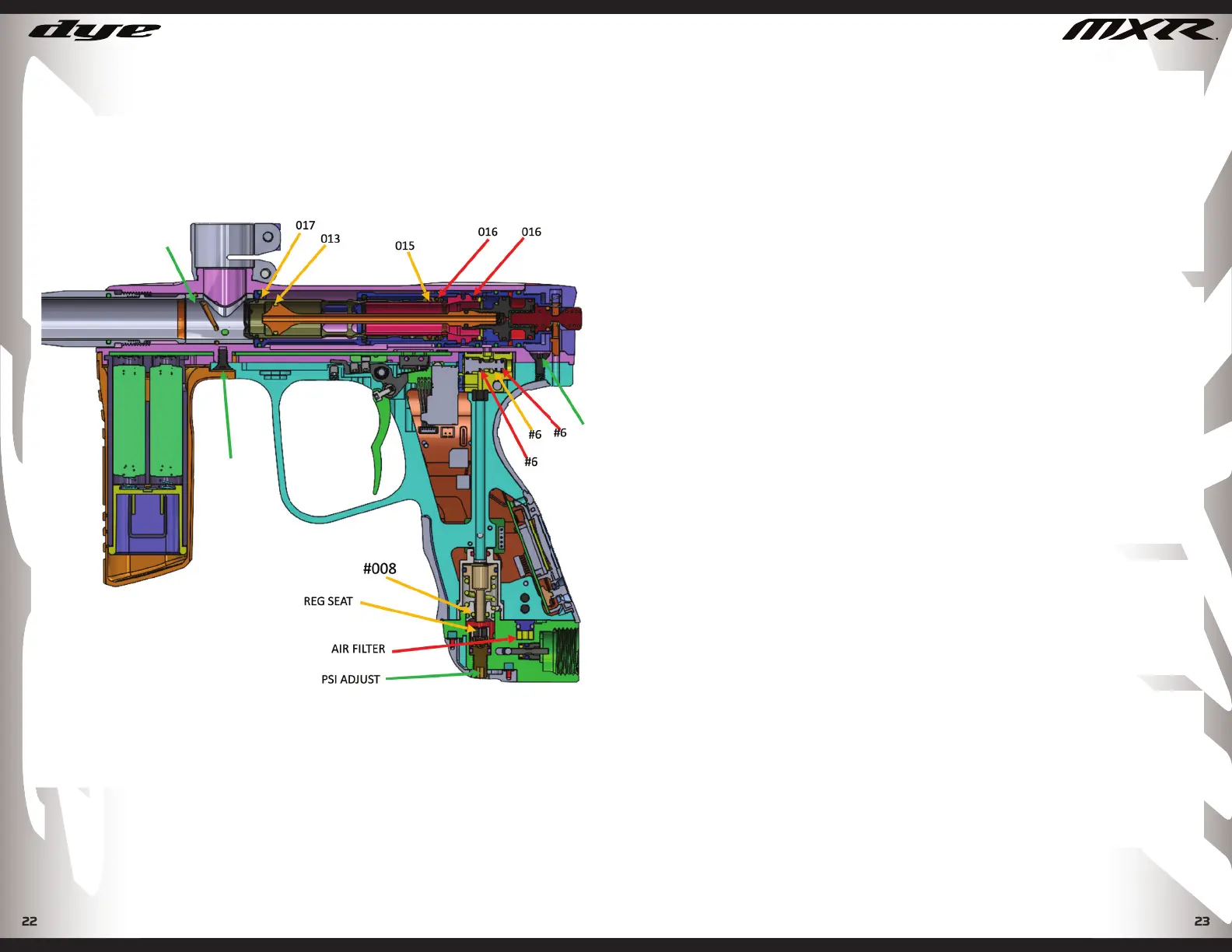

SERVICE DIAGRAM
DIAGRAM
DYEPAINTBALL.COMDYEPAINTBALL.COM
LEVEL 0 SERVICE
PREVENT MAINTENANCE WEEKLY
• WIPE BOLT CLEAN AND APPLY FRESH LUBE
• INSPECT SEALS FOR DAMAGE
• CHECK SCREWS ARE TIGHT
• INSPECT AND CLEAN BREECH SLEEVE
• PSI BETWEEN 120-130
• CONFIRM SETTINGS
• SMART DWELL: Med
• SMART ABS: Med
• EYE DELAY: 8
SERVICE LEVELS
LEVEL 1 SERVICE
BOLT, SOLENOID LEAK / POOR CYCLE
SERVICE BOLT KIT – REPLACE ORINGS
• 0RANGE 017 – FRONT CAN
• YELLOW 013– FRONT VALVE
• RED O15– BOLT GUIDE
• WIPE CLEAN APPLY FRESH LUBE
SERVICE SOLENOID
• REPLACE: BLACK #6 – 2nd SOLENOID SPOOL SEAL
• WIPE CLEAN AND APPLY FRESH LUBE
SERVICE HYPER REG
• REPLACE YELLOW 008 – REG PISTON SHAFT
• INSPECT REG SEAT, REPLACE OR FLIP AS NEEDED
• WIPE CLEAN AND APPLY FRESH LUBE
LEVEL – 2 SERVICE
LEAK BETWEEN BODY AND FRAME
SERVICE BOLT KIT – REPLACE ORINGS
• BROWN 016– BOLT SAIL
• BROWN 016– REAR OF BOLT GUIDE
• WIPE CLEAN APPLY FRESH LUBE
LEVEL – 2 SERVICE
LOW VELOCITY/ POOR FPS / EFFICIENCY
SERVICE SOLENOID
• REPLACE: BLACK #6 – 1st AND 3rd SOLENOID SPOOL SEAL
• WIPE CLEAN AND APPLY FRESH LUBE
SERVICE HYPER REG/ ASA
• INSPECT AIR FILTER, CLEAN OR REPLACE AS NEEDED
