MOS HARDWARE
The MXR electrical layout was
designed with separate components
for quick isolated service access. The
upper board contains the eyes, power
connectors, and the micro switch is
retained by a single clip. The transfer
connector, OLED, and main board are
separately mounted inside the grip
frame.

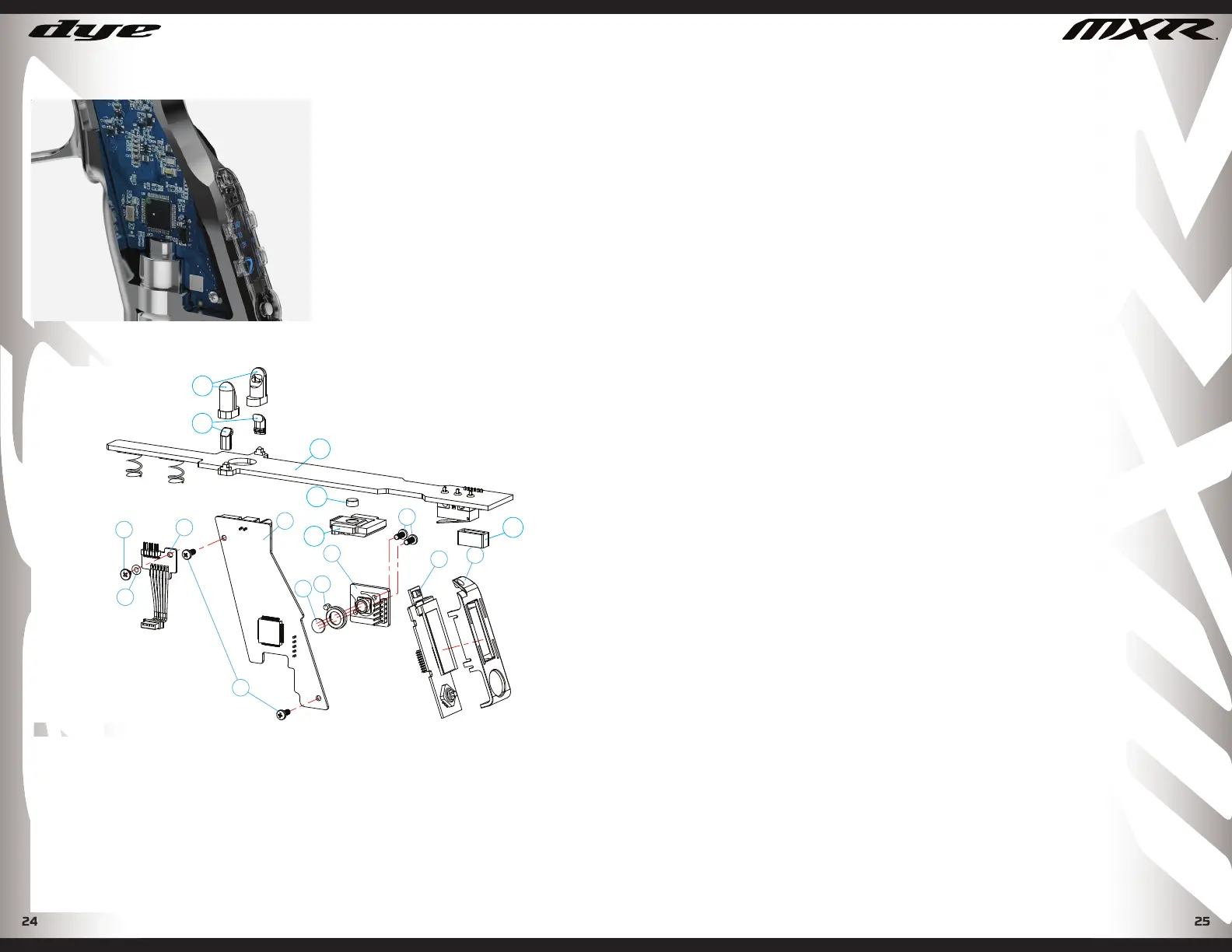

CIRCUIT BOARD LAYOUT
CIRCUIT BOARD COMPONENTS
30
25
32
33
31
30
26
69
27
28
29
4
5
7
8
9
10
PARTS LIST
4 - TAAC EYE Tower Seal
5 - TAAC IR EYE Tower
6 - O-ring 03*05*t1.0,N70
7 - MXR Body Board Set
8 - Connector Rubber Cover
9 - Magnet D4*2mm
10 - MXR Board Retaining Clip
25 - MXR Main Circuit Board Set
26 - MXR OLED Board Set
27 - MXR Pressure PCB Set
28 - Pressure Seal Pad, NBR70,grp
29 - Steel Mesh Filter
30 - M2*5 Philips Head Screw
31 - MXR Transfer Board Set
32 - M2*3mm Flat head Screw
33 - 2*1mm N70 O-ring 1x2mm
69 - MXR OLED Holder
