TRIGGER
1. Post-travel adjustment.
2. Pre-travel adjustment.
3. Breakaway magnet resistance.
4. Reach angle adjustment.
The Mag X Reach Trigger system is fully adjustable. You do not need to remove
the trigger or the frame to make adjustments. To adjust, use a 5/64” ( Blue ) allen
wrench.
1. POST-TRAVEL ( the ending point of the pull)
Rotating the post-travel adjustment clockwise will shorten the overall trigger pull by
reducing the travel after the micro switch has been activated.
NOTE: If the screw is adjusted too far, the trigger will not be allowed to travel far
enough to depress the switch and fi re the marker.
2. PRE-TRAVEL ( the starting point of the pull)
Rotating the pre-travel adjustment screw clockwise will shorten the overall trigger
pull by moving the trigger closer to the activation point.
NOTE: If the screw is adjusted too far, the trigger will be held against the switch and
the marker will not be able to fi re.
3. BREAKAWAY MAGNET RESISTANCE
This screw is accessed in front of the trigger blade. Rotating the screw clockwise will
increase the force required to pull the trigger.
NOTE: If the screw is adjusted too far, it can act as the pre-travel setting.
4. REACH ADJUSTMENT
Loosening the reach adjustment setscrew, the angle of the trigger blade can be set
by the user.
NOTE: Ensure that the trigger blade does not restrict movement of the trigger. The
blade should not make contact with the frame when the trigger is pulled. Also, make
sure the blade is installed straight and that it does not bind at the top of the frame or
this may prevent proper trigger movement.

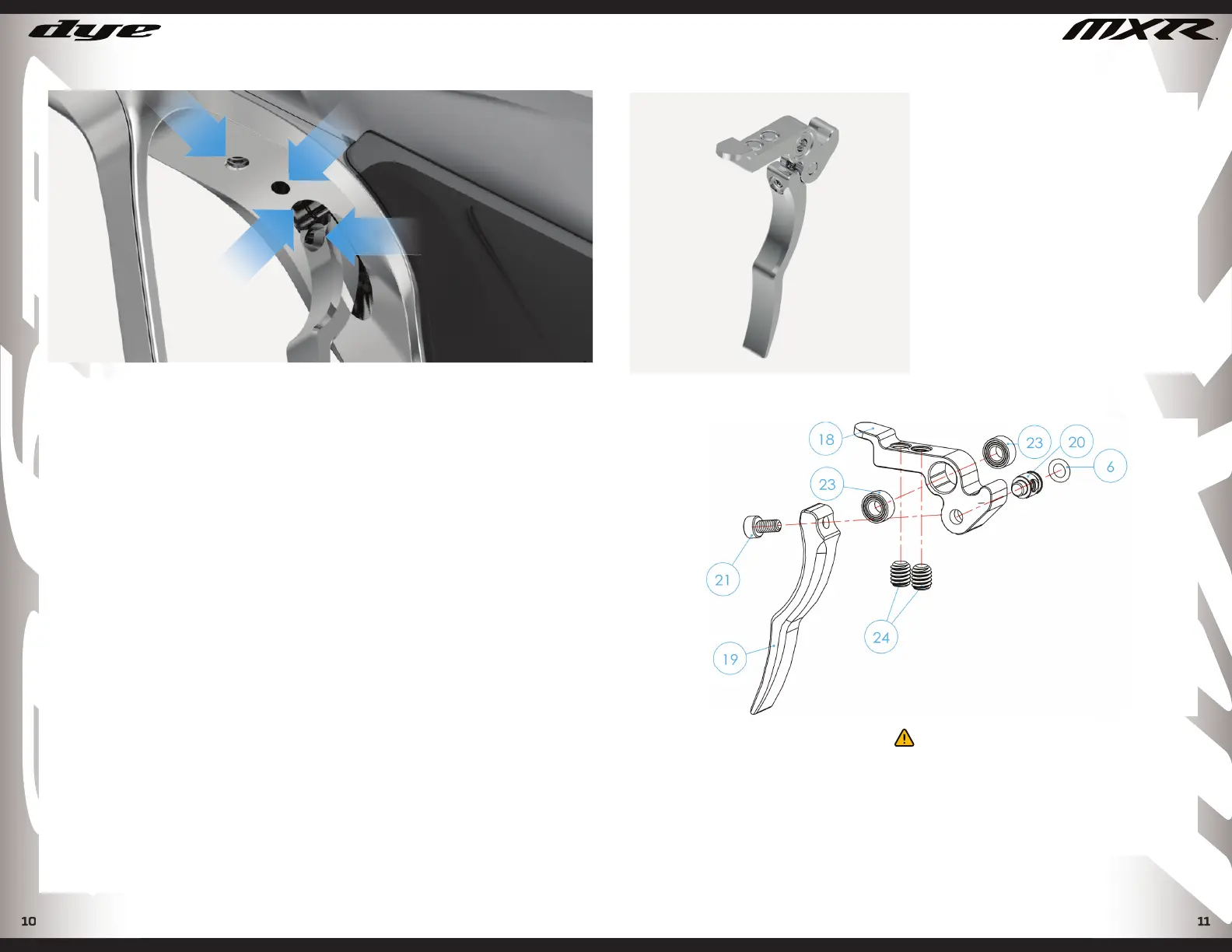

TRIGGER ADJUSTMENT
1
2
3
4
Your marker features the MAG X
REACH trigger system. The pre-
travel, post-travel, and rake angle are
adjustable using the 5/64” ( Blue )
allen key provided.
• Superior trigger speed
• All-new trigger design
• Magnetic return force
• Adjustable trigger angle
• Full travel adjustment
• Minimized trigger play
MAG X REACH TRIGGER
MAG X REACH TRIGGER COMPONENTS
PARTS LIST
6 - O ring 1x3mm, BN70
18 - Mag X Reach Trigger Top
19 - Mag X Reach Trigger Bottom
20 - Trigger Axle
21 - M 2.5*6 Socket Head Screw
23 - Roller Bearing
24 - 8-32 x 3/16 Set Screw
TRIGGER
WARNING!
BE SURE THE TRIGGER IS NOT ADJUSTED
TO THE POINT WHERE IT IS TOO
SENSITIVE AND MAY CAUSE ACCIDENTAL
DISCHARGE OF THE MARKER.
