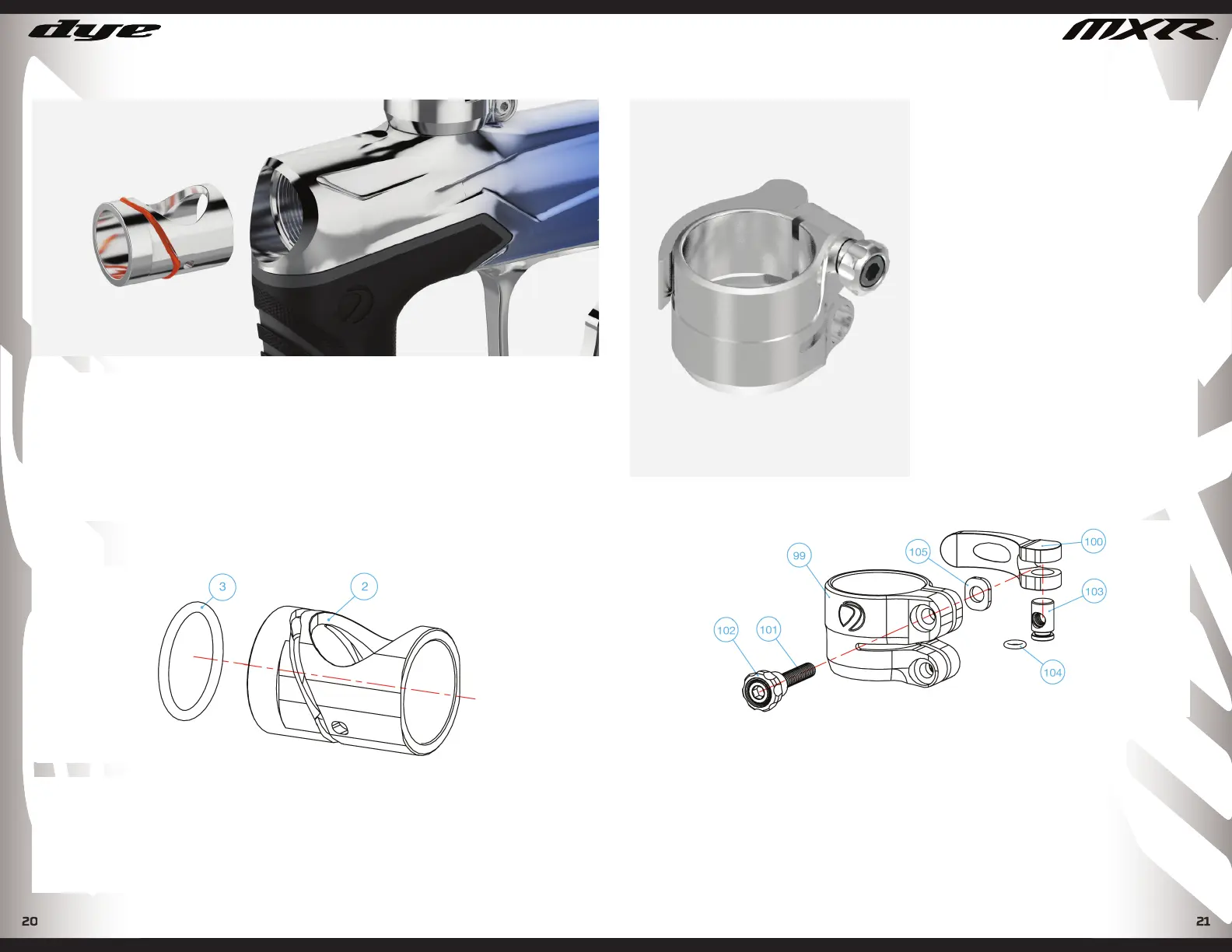

DETENT SYSTEM
The T.A.A.C. Detent System controls the paintball’s position in the breech on all
three axis of movement with 1 standard o-ring. The only maintenance required is to
replace the o-ring if it ever breaks or shows excessive wear or damage. To remove
the T.A.A.C. system from your marker, remove the barrel, then remove the breech
sleeve by reaching in from the front of the breech and pulling the sleeve straight
out the front of the Marker. To reinstall, make sure the T.A.A.C. system is aligned
correctly and push the sleeve into the breech until it is fully seated into position. You
should feel it “click” into position.
T.A.A.C. - TRI AXIAL ALIGNMENT SYSTEM
T.A.A.C. PARTS
PARTS LIST
2 - T.A.A.C. Breach System
3 - #017 N70 O-ring - Orange
Note: For exceptionally small diameter paint using a #016 brown o-ring may
offer better paint handling.
All metal, adjustable Leverlock
Clamping Feedneck securely locks in
loader for a compact, lower profi le.
Fits most loaders.
To install your DYE loader, swivel the
feedneck arm away from the feed-
neck body and rotate the thumb
wheel clockwise to tighten or coun-
terclockwise to loosen the grip on
your loader. Once the loader is insert-
ed, rotate the feedneck arm toward
the feedneck body taking care not to
over tighten.
LEVELOCK FEEDNECK
PARTS LIST
99 - Lockdown2 Feedneck Collar
100 - Lockdown2 Cam Lever
101 - 8-32, 1” Hex Screw
102 - Feedneck Knob Wheel
103 - Lockdown2 Lever Pin (Brass)
104 - 4*1.2 EP 70 O-ring
105 - Lockdown2 Feedneck Washer
FEEDNECK PARTS
FEEDNECK
