QUICK START GUIDE

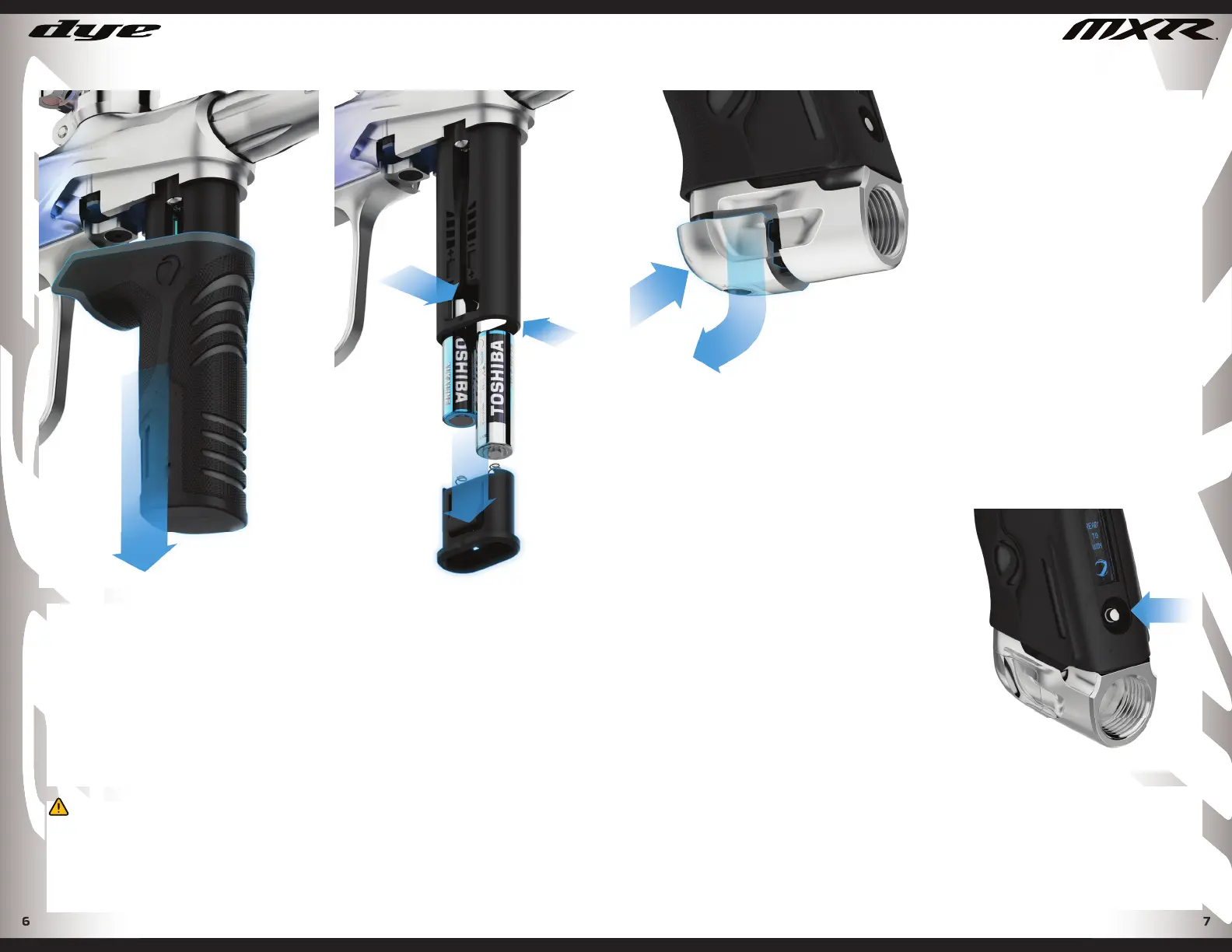

1- Pull the fore grip cover down and remove.
2- Squeeze the battery cover tabs in.
3- Remove battery cover.
4- Install two high quality AAs into the battery housing. Ensure the AA batteries
polarities are installed as displayed on the housing. Slide the battery cover back
into the housing until it locks in place. Push the fore grip cover up until it clicks into
place.
NOTE: For rechargeable batteries, verify the dip switch settings to ensure the
Rechargeable Battery Protection Mode is “on.”
AIR SUPPLY
The MXR should be operated using
air / nitrogen gas only. DO NOT
USE CO2. Tank output pressure
should not exceed 850psi. The
recommended tank output
pressure is 450-650psi.
1. GASSING UP THE MXR
Screw your air system into the
Slap2 ASA and slide the sled
rearward until it locks in the rear
engaged position.
2. DEGASSING THE MXR
Pull down the sled to disengage
the air until you hear air escape the
Marker.
POWER SUPPLY
1
2
3
4
• To power on your MXR marker
depress and hold the joystick
located on the back of the grip
frame, for 2 seconds. The LED will
illuminate and the boot screen will
illuminate on the OLED display.
• The anti-chop eye system is
automatically powered on during
boot up.
• To turn the eyes ON or OFF,
toggle and hold the joystick down
towards 6 O’clock for 2 seconds.
TURNING ON MXR
• The LED light provides feedback
for the anti-chop eye system.
• To get the best performance out
of your MXR, it is recommended
that you use a motorized loader
system. Preferably the Dye LT-R or
R-2 Loader.
LED LIGHT COLOR INDEX
Blue: Boot sequence
Red: Breech is clear, no ball
(Eyes on)
Green: Ball in breech ready to fi re
(Eyes on)
Blinking Red: Eyes are off
Blinking Green: Eye Failure
1
2
QUICK START GUIDE
WARNING!
• A LOW BATTERY WILL NOT BE ABLE TO POWER BOTH THE ACE EYE AND
THE TRIGGER SWITCH CAUSING ACE EYE FAILURE.
• IF THE BATTERY IS LOW, IT MAY NOT BE ABLE TO POWER THE SOLENOID
CORRECTLY. THIS WILL EFFECT THE MXR VELOCITY, CAUSING IT TO BECOME
INCONSISTENT AND/OR LOW.
TOSHIBA™ is a registered trademark of the Toshiba Corporation
