Hardware Used
A M6x12 Screw Qty: 16 pcs
B 6mm Flat Washer Qty: 16 pcs
C 6mm Spring Washer Qty: 16 pcs
3
2
1
A
C
B
B
C
A

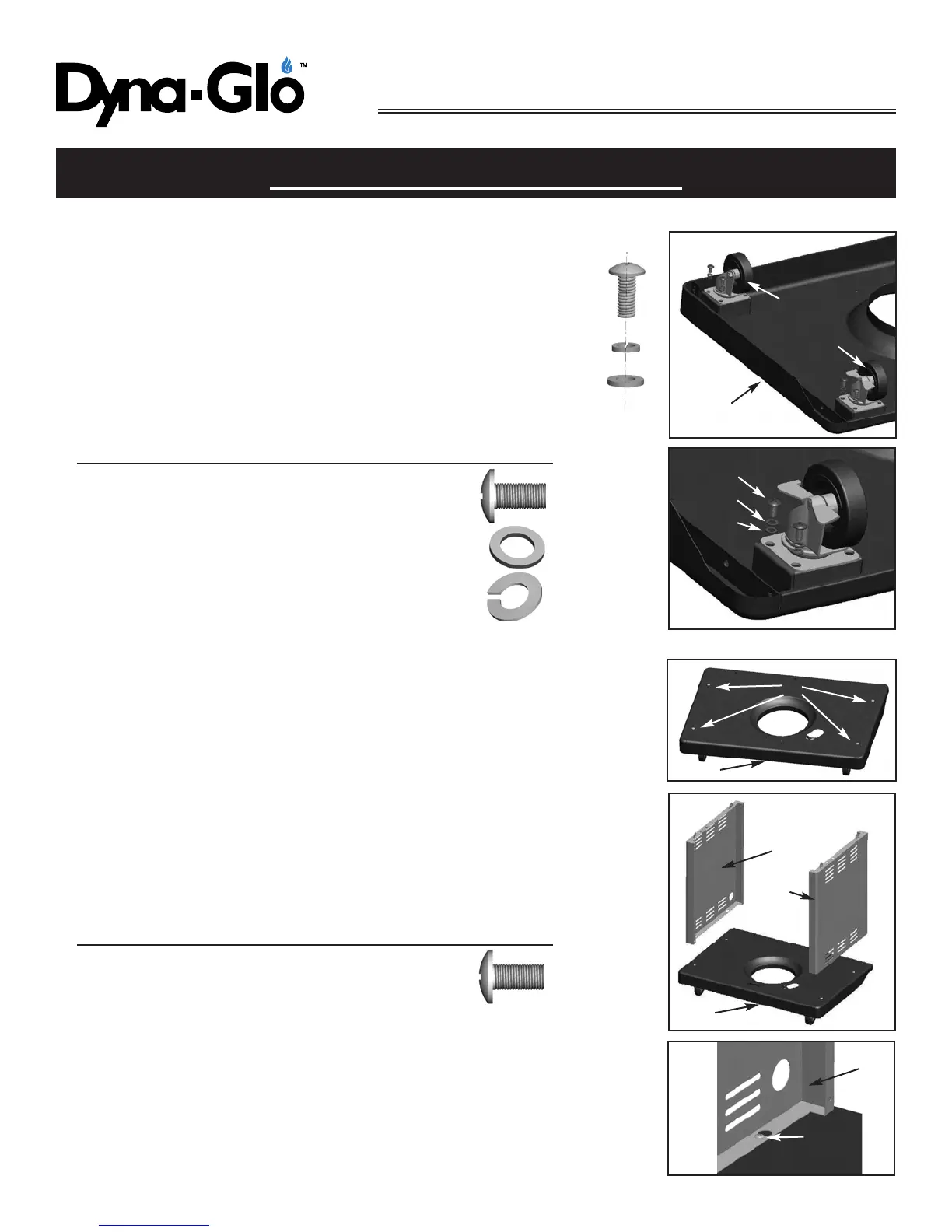

Step 1: Assemble the locking casters (2) and casters (3).
Secure the locking casters (2) with four screws each (A),
four spring washers each (C) and four flat washers each (B)
to the bottom shelf (1), then tighten all the screws. As shown,
the flat washer (B) is placed under the spring washer (C).
Install the casters (3) to the front side (not beveled) of bottom
shelf (1) using four screws (A), four spring washers (C), and
four flat washers (B), then tighten all screws.
Step 2: Assemble the cart side panels (4 & 5).
Assemble four screws (A) on the bottom shelf (1), making sure
there is a 4-6mm clearance from the screw head surface to the
bottom shelf (1). Using the larger portion of the screw hole,
place the cart left side panel (4) over the screws then slide the
panel to the smaller opening of the screw hole. Secure the
panels by tightening the screws, but do not fully tighten the
screws until after Step 3.
Attach the cart right side panel (5) to the bottom shelf (1) in
the same way.
Hardware Used
A M6x12 Screw Qty: 4 pcs
A
4
5
1
1
A
4
To Next Page
