/3*DV*ULOO
$66(0%/<,16758&7,216
13
Hardware Used
F M6x16 Screw Qty: 5 pcs

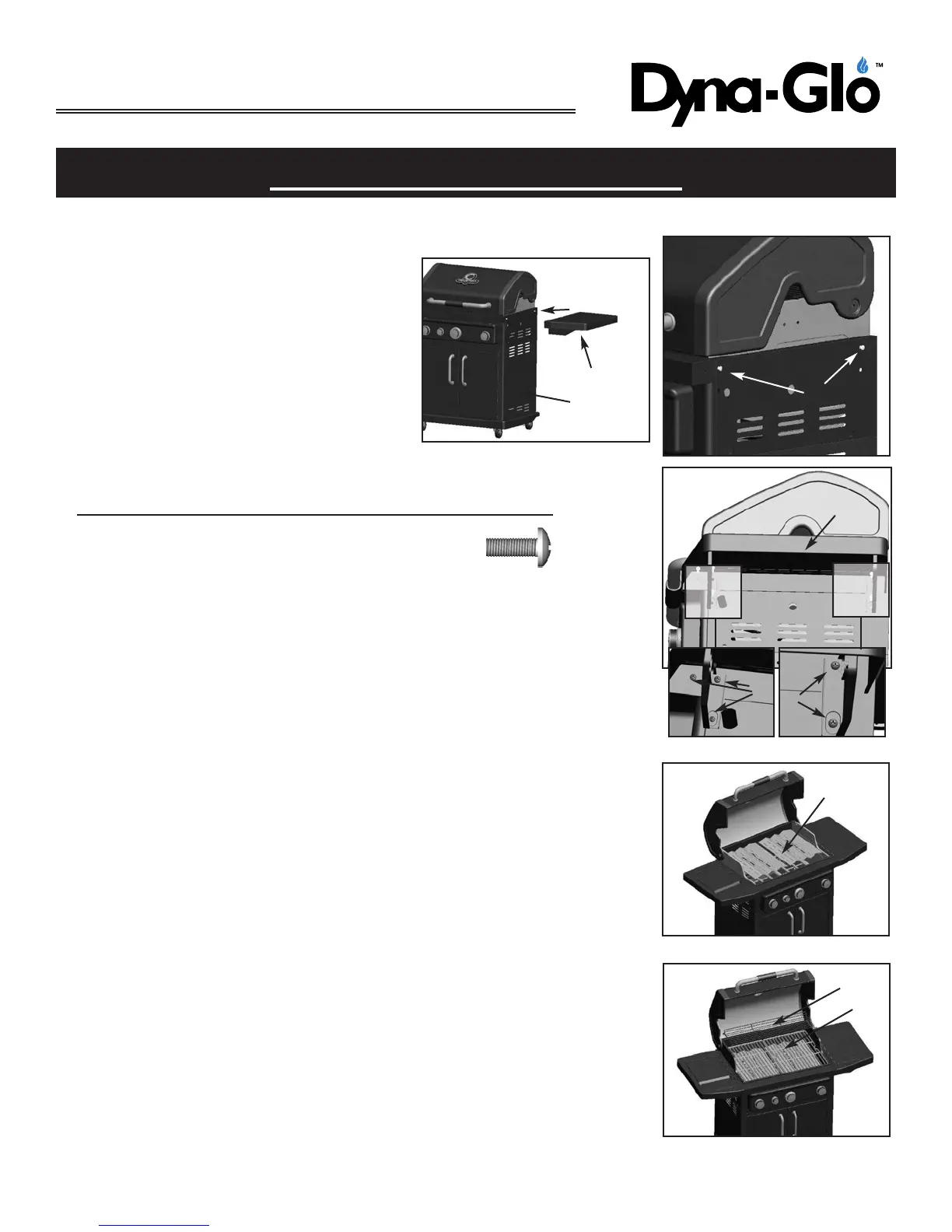

Step 9B: Attach right shelf assembly (18).
Install 2 screws (F) to the grill body
(15). Do not fully tighten screws
(keep approximately 5 mm from
surface). Align the key holes in the
right shelf assembly (18) with the 2
screws just installed.
Secure the screws (F) pre-assembled
to the right shelf assembly (18), then
tighten remaining 2 screws.
15
16
F
F
F
16
Step 10: Install the heat tent (24).
Open the lid and place the two heat tents (24) on the
brackets directly above the burners on the inside of the
grill body (15).
Step 11: Install the cooking grate (25) and warming rack(23).
Place two cooking grates (25) on the grill body brace and
grill rear panel.
Set the warming rack (23) in place as illustrated.
24
23
25
To Next Page
