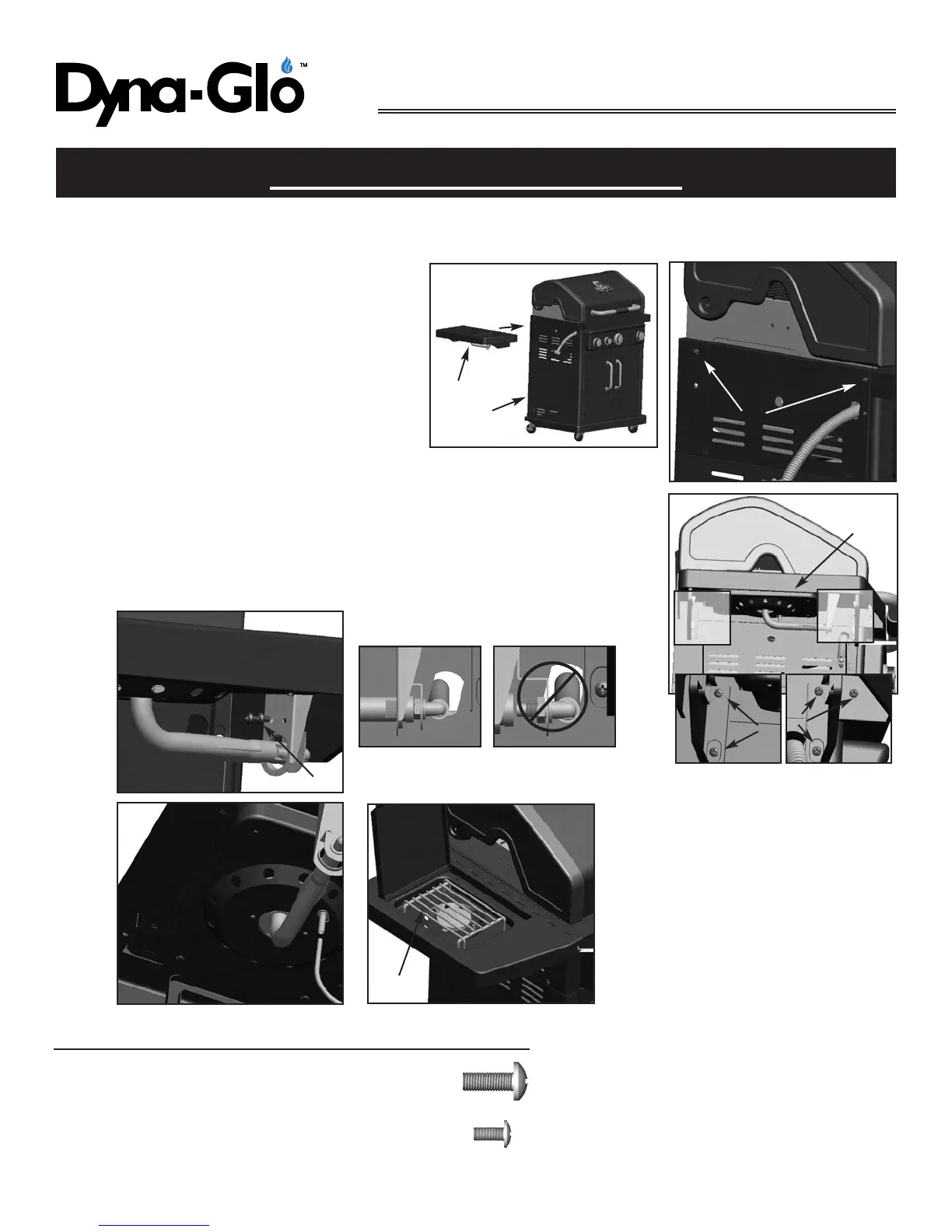

Step 9A: Attach the left side burner assembly (16).
Insert two screws (F) to the grill body (15)
as shown in Fig. A. Do not fully tighten
screws (keep approximately 5 mm from
surface). Align the key holes in the left
side burner assembly (16) with the two
screws just installed in the grill body (15).
Secure the 3 screws (F) pre-assembled
to the left side burner support, then
tighten the remaining 2 screws (F).
Align the orifice with the side burner tubing center (see Fig. B and
Fig. C below), and insert the orifice into the side burner tubing.
Use 2 screws (D) to secure the side burner orifice and side burner
orifice support to the side burner support. Install the ignition wiring
to the electrode. Align the key holes on the burner tray with the
shelf cooking grate (17) and set in place.
/3*DV*ULOO
$66(0%/<,16758&7,216
12
15
16
F
F
F
16
Hardware Used
F M6x16 Screw Qty: 5 pcs
D M4x10 Screw Qty: 2 pcs
D
17
Fig. B
Fig. A
Fig. C
