11
Hardware/Parts Used
H M6x25 Screw Qty: 2 pcs
22 Handle Bezel Qty: 2 pcs
21 Lid Handle Qty: 1 pc
13 Large Knob/Black Ring Qty: 2 pcs
14 Small Knob Qty: 1 pc
27 Large Knob/Red Ring Qty: 1 pc

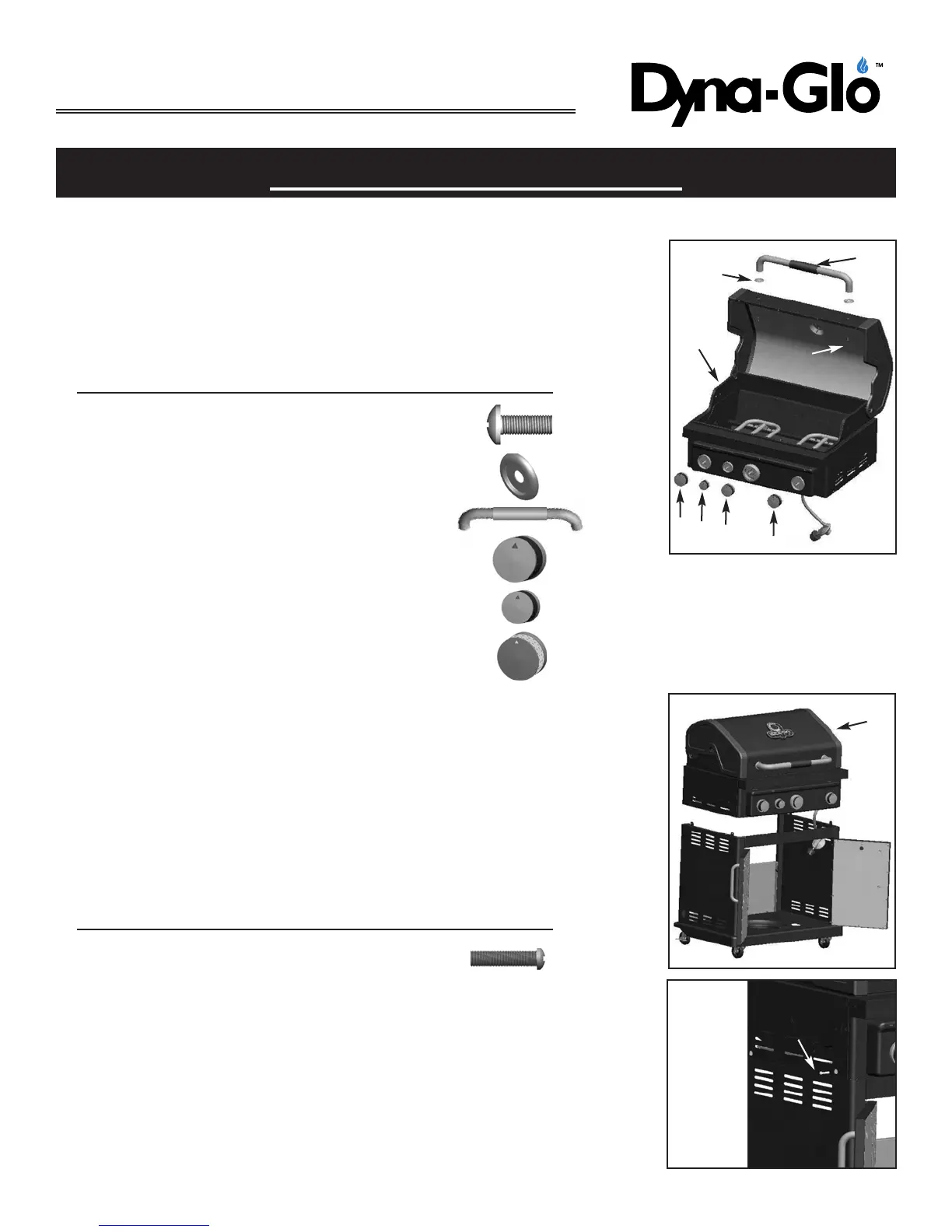

Step 7: Attach the control knobs (13, 14, and 27) and lid handle (21).
Attach the control knobs (13, 14, and 27) to the control panel of
the body (15). Remove the screws (H) and bezels (22) from the
lid handle assembly (21). Align the lid handle bezels (22) and lid
handle (21) with the predrilled holes in the top of the lid. Attach
handle with the 2 screws (H).
Step 8: Attach the grill body (15) to the cart.
Lock the back two casters to ensure the cart doesn’t move while
installing the grill body (15).
Carefully place the grill body (15) onto the cart. Make sure the
LPG hose is inside the cart. Align the holes in the grill body with
the holes in the cart. Secure the grill body (15) in place with 4
screws (E).
Hardware Used
E M6x20 Screw Qty: 4 pcs
E
15
15
21
22
H
14
13
27
13
To Next Page
