21CA 251 O251-1EN1

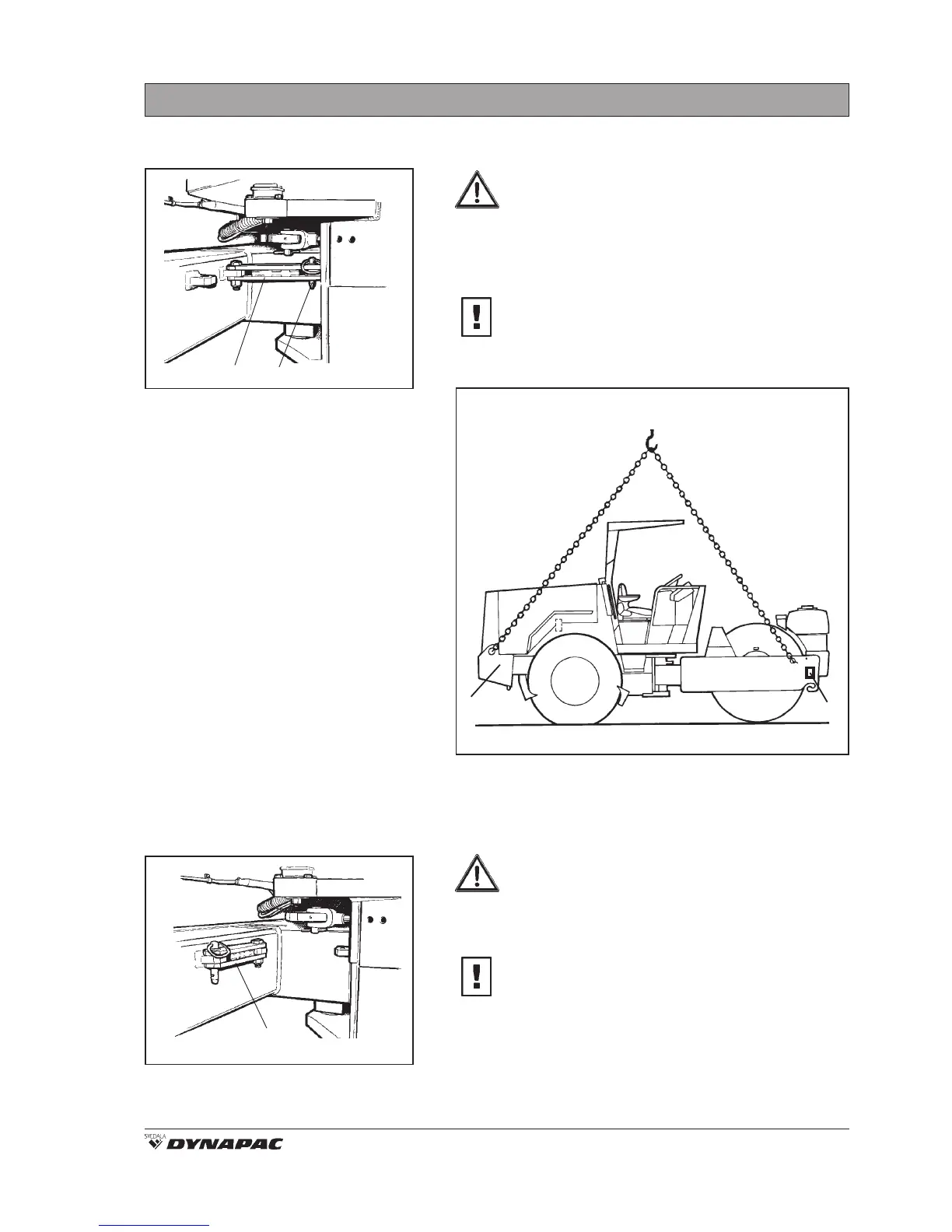

HOISTING
The articulation must be locked before
lifting the roller. Fold out the arm (1) and
secure it to the rear machine frame with
the cotter (2). Attach the lifting chains and
ensure that no parts will be crushed when
hoisting.
Steel wires, chains, etc, must be
dimensioned in conformance with current
regulations.
Locking the articulation joint
Fig. 27 Lifting the roller
1. Hoisting plate
(rear plate on left side)
Releasing the articulation joint
Fig. 26 left side of articulation
1. Articulation in interlocked mode
2. Locking pin
Fig. 28 Left side of articulation
1. Articulation lock in open mode
Weight: See data plate on the roller
Keep well clear of the hoisted machine.
Ensure that hoisting hooks are securely
anchored. Check weight of the machine by
reading the data punched on the hoisting
plate (1).
Remember to restore the articulation interlock
to its open mode before driving again.
2
1
1
1
1
