Dynapac CA 251 - Transportation Preparation

23CA 251 O251-1EN1
Chock (1) the wheels and drum.
Block up under the drum frame (2), to avoid overload
on the rubber suspension of the drum.
Clamp down the roller with wire (3) at all four corners.
Remember to restore the articulation
interlock to its open mode before driving
the roller again.
TRANSPORTATION
Interlock the articulation before hoisting
and transportation, follow the instructions
under the respective heading.
Locking the articulation joint

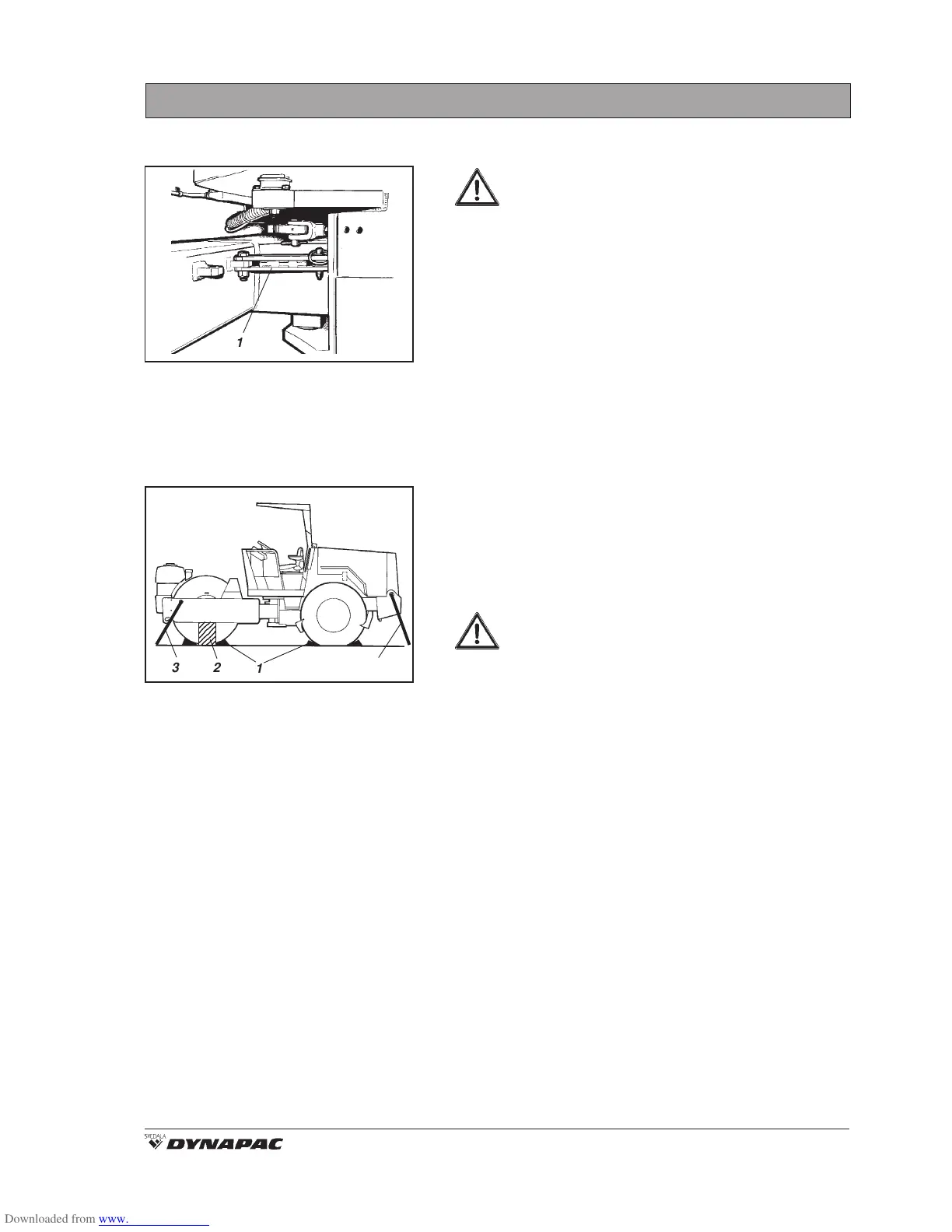

Fig. 32 Articulation joint/locking device
1. Mode for transportation and hoisting
Roller prepared for
transportation
Fig. 33 Transportation
1. Chock
2. Block up
3. Lashing wire
