7CA 251 O251-1EN1

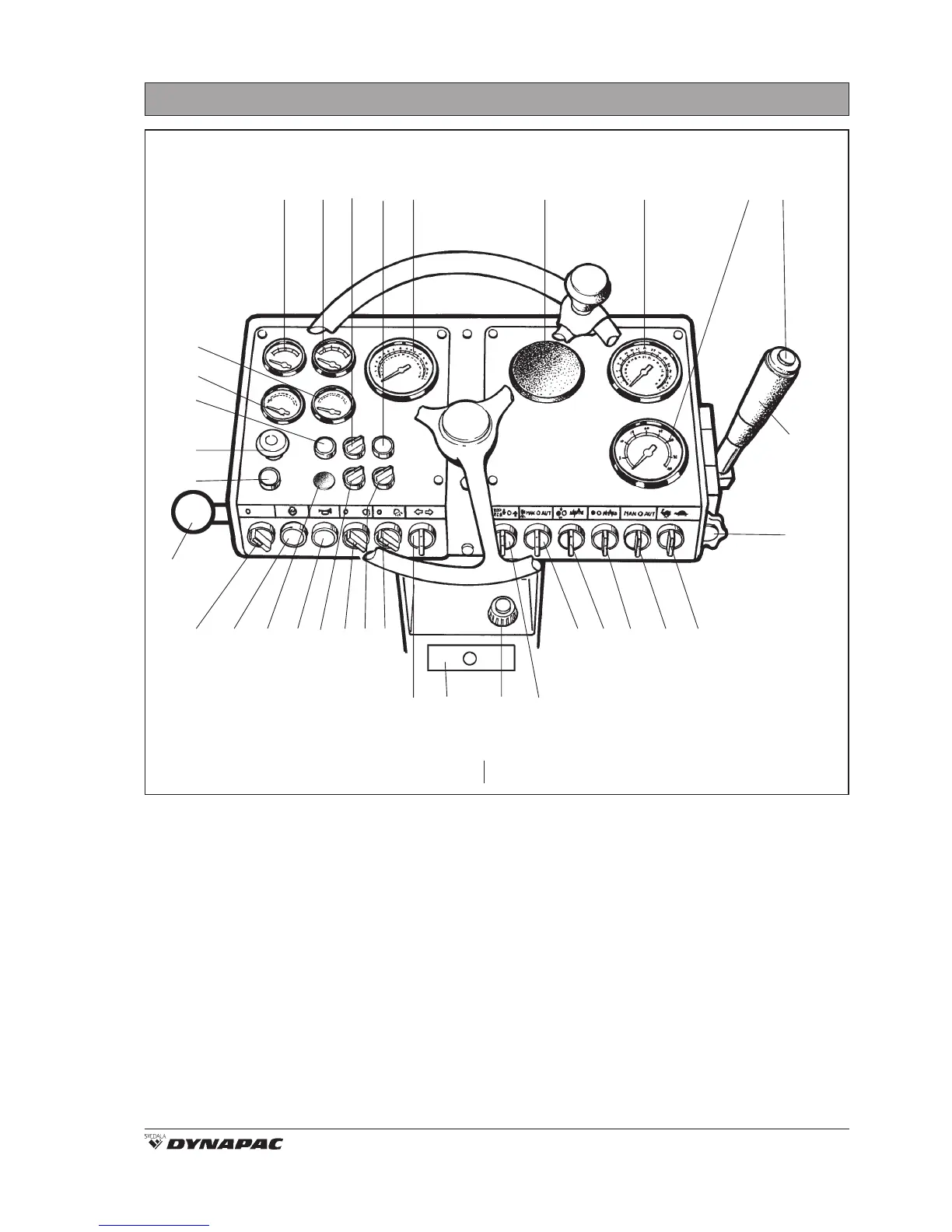

INSTRUMENTS AND CONTROLS
15 16 17 18 19 20 21 22 23
24
25
1 33 32 31
14
13
12
11
10
1 Direction indicator switch *
2 Working lights *
3 Hazard beacon *
4 Driving lights *
5 Hazard flashers *
6 Horn
7 Vacant
8 Starter contact
9 Stop switch
10 Reserve brake knob
11 Reservbromsreglage
12 Warning lamp –
engine oil pressure
13 Voltmeter
14 Fuel gauge
15 Hydraulic fluid,
Temperature gauge
16 Engine,
Temperature gauge
17 Main beam/Control lamp *
18 Warning lamp –
air cleaner
19 Tachometer/hourmeter
20 Compaction meter *
21 Frequency meter *
22 Speedometer *
23 Vibration ON/OFF
24 Forward/reverse lever
25 Speed limiting device *
26 Speed selector
27 Vibration selector
Man/Aut.*
28 Amplitude selector
Low/0/High
29 Watering/Tyres (A)
30 Watering Man/Aut/drum *
31 Frequency meter
ON/OFF *
32 Revs control
33 Fuse box
34 Handbook compartment
35 Lever – Strike-off blade
Up/Down *
* Optional equipment
Fig. 4
34
35
9 8 7 6 5 4 3 2 30 29 28 27 26
