20 CA 251/301 M251EN2
EVERY 250 HOURS OF OPERATION (Monthly)
Torque Hub (P, PD)
- Checking the Oil Level
Applies to versions P and PD only.
1. Position the roller on a level surface with the filler
plug at the top.
2. Wipe clean around the plugs.
3. Remove the plugs and check that oil reaches up to
the level plug.
4. Top off as required with transmission oil. See Lubri-
cant Specification.
2
1

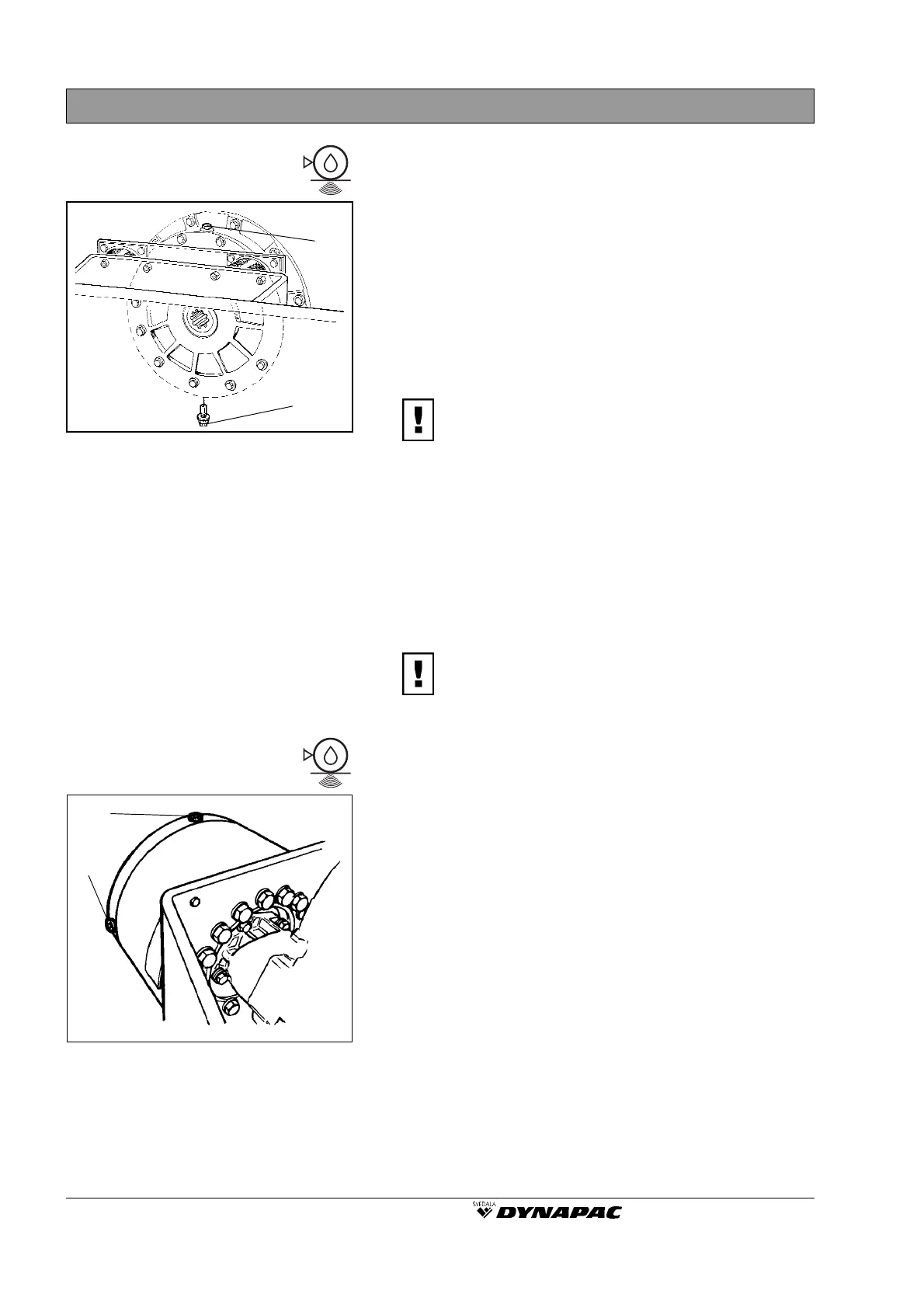

Fig. 31 Torque hub
1. Filler plug
2. Level/Drain plug
1
2
Fig. 30 Right side of drum
1. Filling/drain plug
2. Level plug
1. Position the roller on a flat surface with the filler plug
(1) (Large plug width across flats 24 mm) at the top
and screw off the plug.
2. Screw out the level plug (2) (Small plug width
across flats 13 mm) and oil should flow from the
plug hole. Oil level is correct when the flow stops.
If oil does not run out, top off through the plug hole
(1).
A small amount of oil may run out as the plug
(2) is screwed out, this is oil from the level
tube and does not necessarily indicate that
the level is correct.
3. Fill as required with synthetic oil MOBIL SHC 629 or
equivalent.
4. Wipe any metal particles from the magnetic filler
plug (1) before refitting.
5. Repeat the above items 1 to 4 on the other side of
the drum.
Do not overfill with oil, risk for overheating.
Drum (cassette)
- Checking the Oil Level
CAUTION
CAUTION
