Machine description
ICC1200C-1EN3.pdf2012-05-16

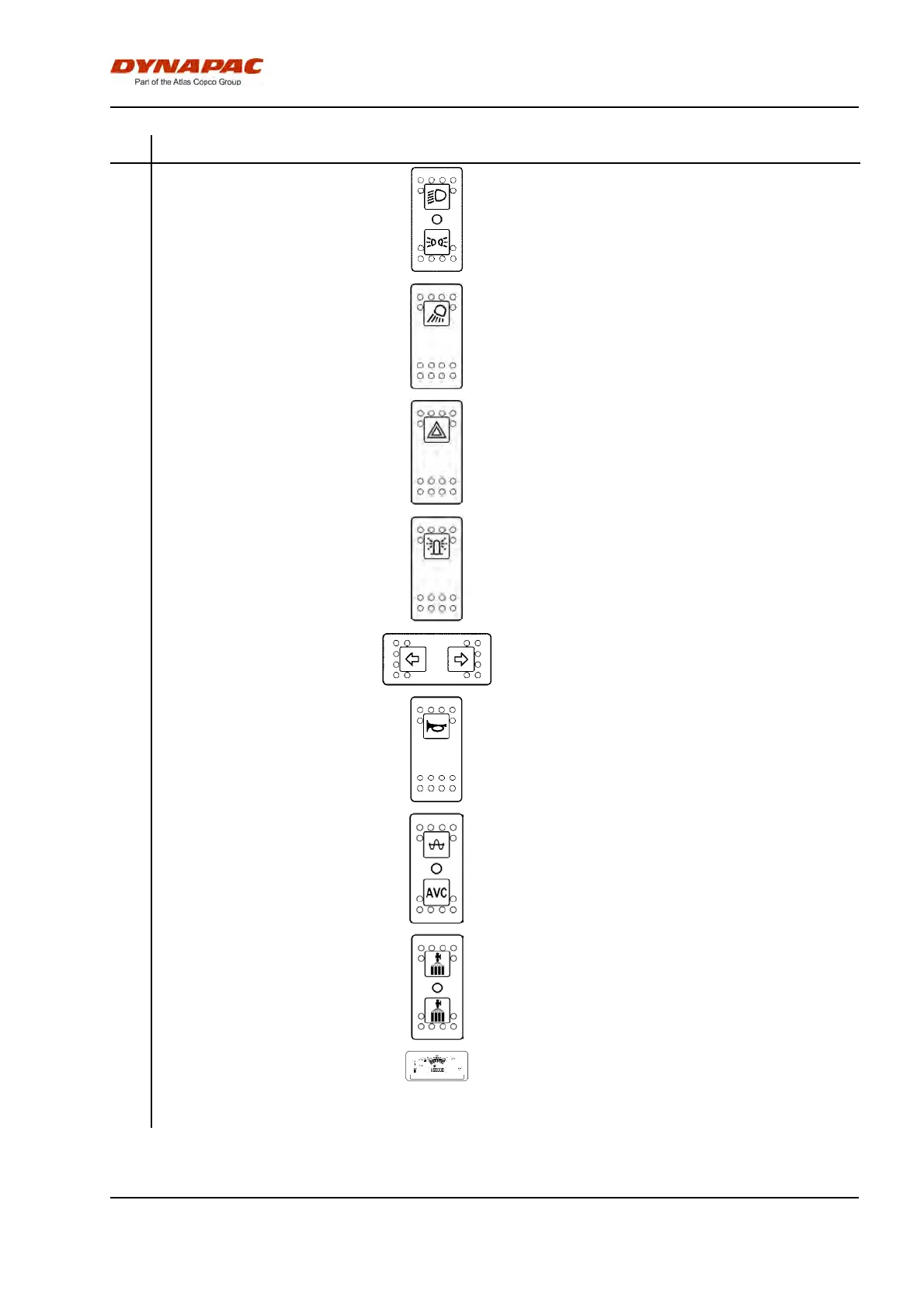

No Designation Symbol FunctionNo Designation Symbol Function
14. Driving lights, switch
(Optional)
Upper position = Traffic lighting goes on
Intermediate position = Lighting switched off
Lower position = Parking light goes on
14. Driving lights, switch
(Optional)
Upper position = Traffic lighting goes on
Intermediate position = Lighting switched off
Lower position = Parking light goes on
15. Working lights, switch
(Optional)
When depressed, the working lights are on15. Working lights, switch
(Optional)
When depressed, the working lights are on
16. Hazard warning lights,
switch (Optional)
Where depressed, the hazard warning lights are on16. Hazard warning lights,
switch (Optional)
Where depressed, the hazard warning lights are on
17. Hazard beacon, switch Where depressed, the hazard beacon is on17. Hazard beacon, switch Where depressed, the hazard beacon is on
18. Direction indicators, switch
(Optional)
When depressed to the left, the left direction
indicators are on etc. In the middle position the
function is shut off.
18. Direction indicators, switch
(Optional)
When depressed to the left, the left direction
indicators are on etc. In the middle position the
function is shut off.
19. Horn, switch Press to sound the horn.19. Horn, switch Press to sound the horn.
20. Vibration MAN/AUTO, switch In the upper position, the vibration is switched
on/off with the switch on the forward/reverse lever.
The function is activated with the switch.
In the intermediate position the vibration system is
completely switched off.
In the lower position the vibration is switched on or
off automatically via the forward/reverse lever.
20. Vibration MAN/AUTO, switch In the upper position, the vibration is switched
on/off with the switch on the forward/reverse lever.
The function is activated with the switch.
In the intermediate position the vibration system is
completely switched off.
In the lower position the vibration is switched on or
off automatically via the forward/reverse lever.
21. Sprinkler system tires,
switch
Regulates water flow to the tires.
Upper position = Intermittent operation
Lower position = Continuous operation
21. Sprinkler system tires,
switch
Regulates water flow to the tires.
Upper position = Intermittent operation
Lower position = Continuous operation
22. Control panel22. Control panel
23. Warning lamp, low fuel level The lamp comes on when the fuel level in the tank
is low.
23. Warning lamp, low fuel level The lamp comes on when the fuel level in the tank
is low.
31
