Dynapac CC1200C - Releasing Wheel Motor Brakes

Miscellaneous
ICC1200C-1EN3.pdf 2012-05-16
1 2
3

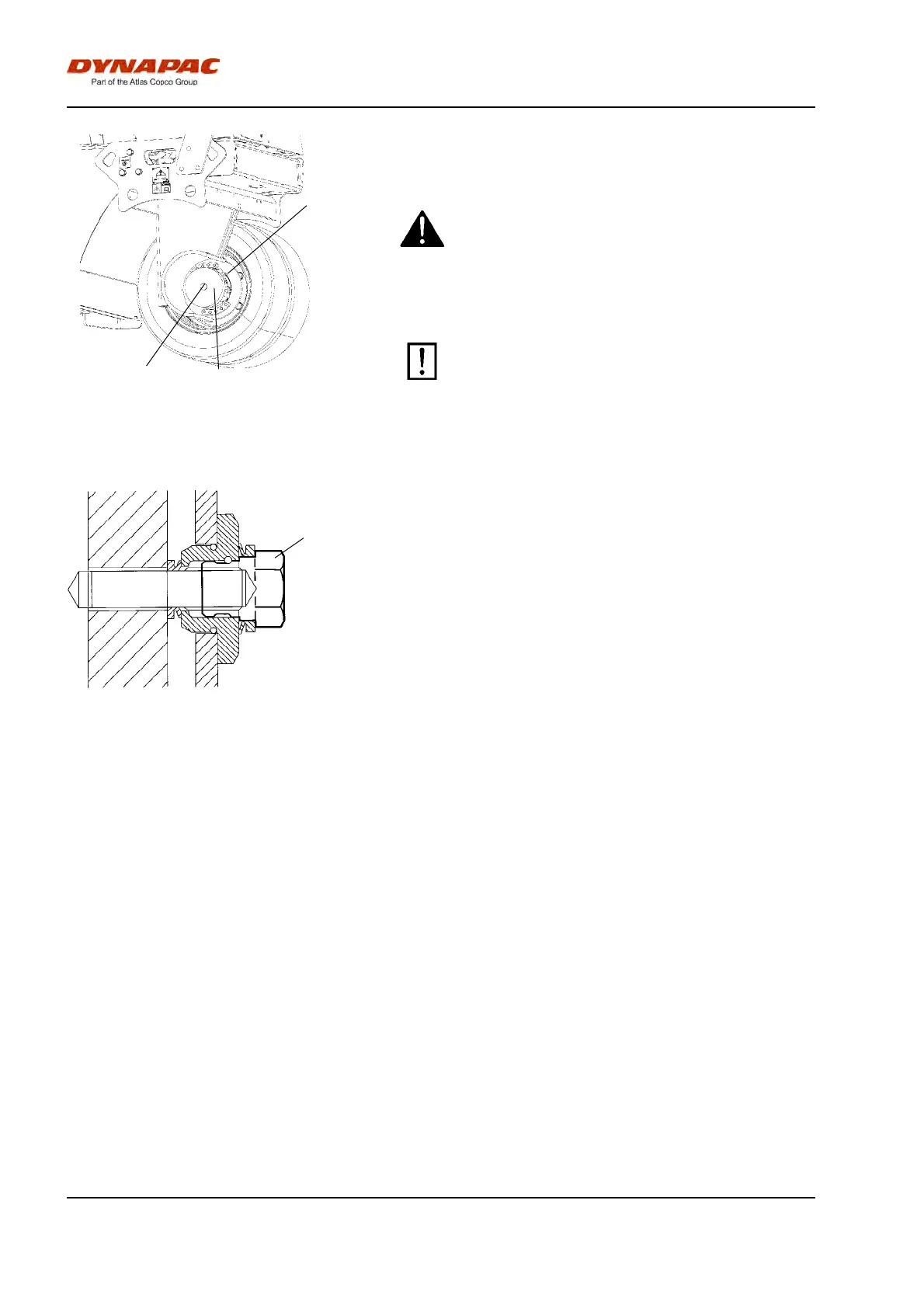

Fig. Left drum side
1. Release screw
2. Brake housing
3. Drive motor
Releasing the brake, wheel motors (Optional)
Activate the parking brake, and stop the engine.
Block the drum with a chock to prevent movement;
the roller can start rolling when the brakes are
released.
Activate the parking brake, and stop the engine.
Block the drum with a chock to prevent movement;
the roller can start rolling when the brakes are
released.
The disc brakes in each drive motor must be
released mechanically as shown below before the
towing the roller.
The disc brakes in each drive motor must be
released mechanically as shown below before the
towing the roller.
1
Fig. Brake housing
1. Release screw
Use a key with an 18 mm socket.
Turn the release screw (1) a 1 1/2 turn clockwise to
release the brake.
Release the brakes on both drums.
Turn the same screws a 1 1/2 turn anticlockwise to
activate the brakes again after towing.
52
