11
CC 102/C/122/C/132/142/C O102EN3

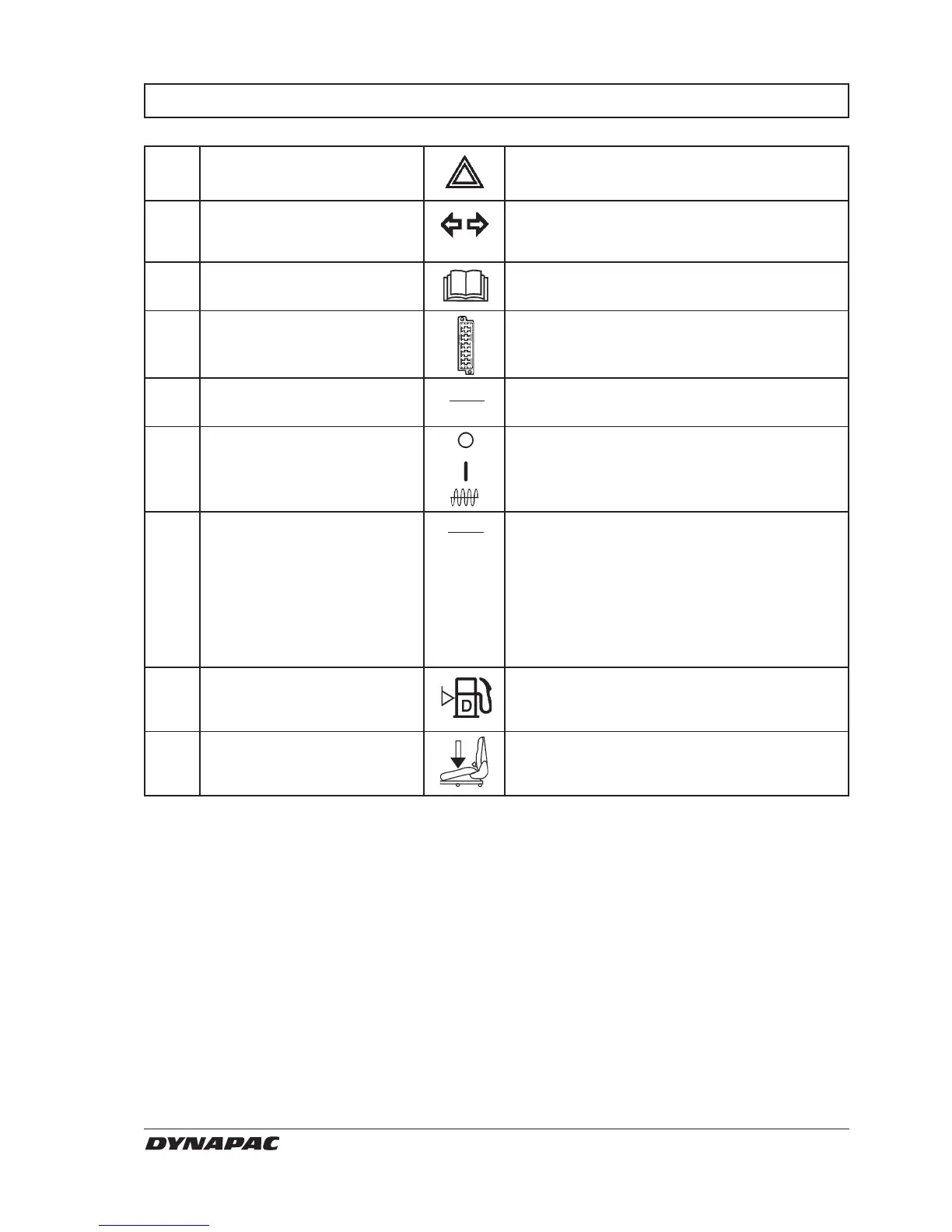

15 Hazard flasher, Turn right to switch on the flashing
switch (optional) warning lights.
16 Direction indicator, Turn left to switch on the left direction
switch (optional) indicator. The flashing indicator is OFF in the
middle position.
17 Pocket for manuals Pull up and open the top of the compartment
for access to handbooks.
18 Fuse box Contains fuses for the electrical system.
(on front of steering column) See under the heading ”Electrical system” for
a description of the functions of the fuses.
19 Rev control, The right position gives engine idling revs.
diesel engine The left position gives full revs.
20 Vibration ON/OFF, Press once and release to switch vibration
switch ON, press again to switch vibration OFF. The
above applies only when switch 5 is in the left
position.
21 Forward/Reverse lever The lever must be in neutral to enable the
engine to start; the engine will not start if the
forward/reverse lever is in any other position.
The forward/reverse lever controls the driving
direction and speed of the roller. Move the
lever forward to drive the roller forward, etc.
The speed of the roller is proportional to the
distance of the lever from the neutral position.
The further from neutral the higher the speed.
22 Warning lamp, When the lamp lights, there is only sufficient
low fuel level (optional) fuel left for a short distance. Refuel as soon
as possible.
23 Seat switch Remain seated during all operation. If the
operator rises from his seat the horn will
sound, or the brakes will be applied.
INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION
