12
CC 102/C/122/C/132/142/C O102EN3
1 2 3 4 5 6 7 8 9 10 11 12

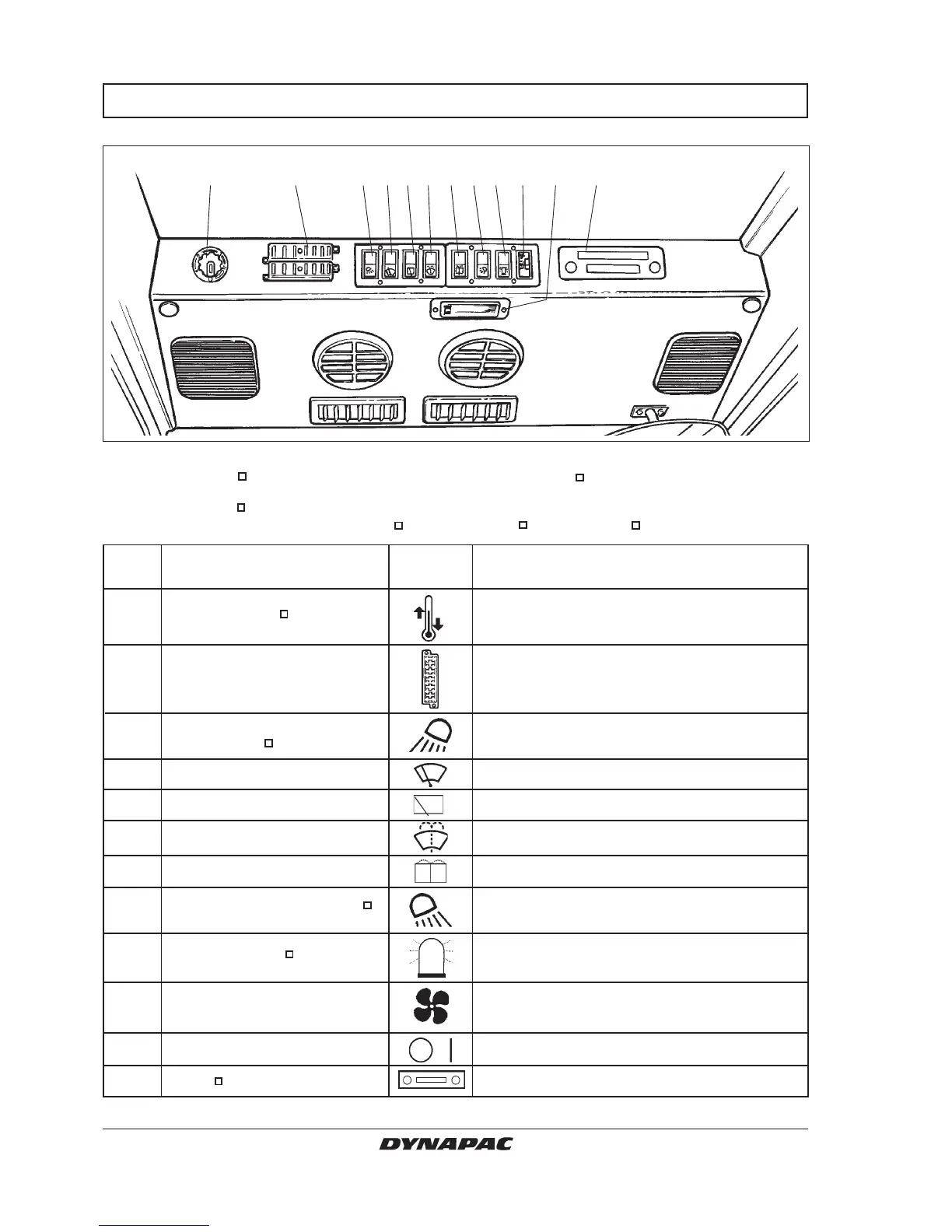

Fig. 8 Cab
1. Heater control
2. Fuse boxes
3. Working lights
4. Front wiper
5. Rear wiper
6. Front washer
7. Rear washer
8. Working lights
9. Hazard beacon
10. Fan
11. Interior lighting
12. Radio = Optional equipment
Items Designation Symbol Function
in fig. 8
1 Heater control Regulates heat in the cab.
Turn right to increase heat, turn left to reduce.
2 Fuse boxes (cab) Contains fuses for the electrical system.
See under the heading ”Electrical system” for
a description of the functions of the fuses.
3 Working lights,
front, switch Press to switch on the front working lights.
4 Front wiper switch Press to operate the front windshield wiper.
5 Rear wiper switch Press to operate the rear windshield wiper.
6 Front washer switch Press to wash the front window.
7 Rear washer switch Press to wash the rear window.
8 Rear working lights switch Press to switch on the rear working lights.
9 Hazard beacon Press to switch on the hazard beacon.
10 Fan switch Press to operate the fan.
11 Interior lighting switch Push forward to switch on the interior lighting.
12 Radio
INSTRUMENTS AND CONTROLS IN CAB
