Dynascan DS2 DS322LR4-1 User Manual

DS322LR4-1 User Manual 13

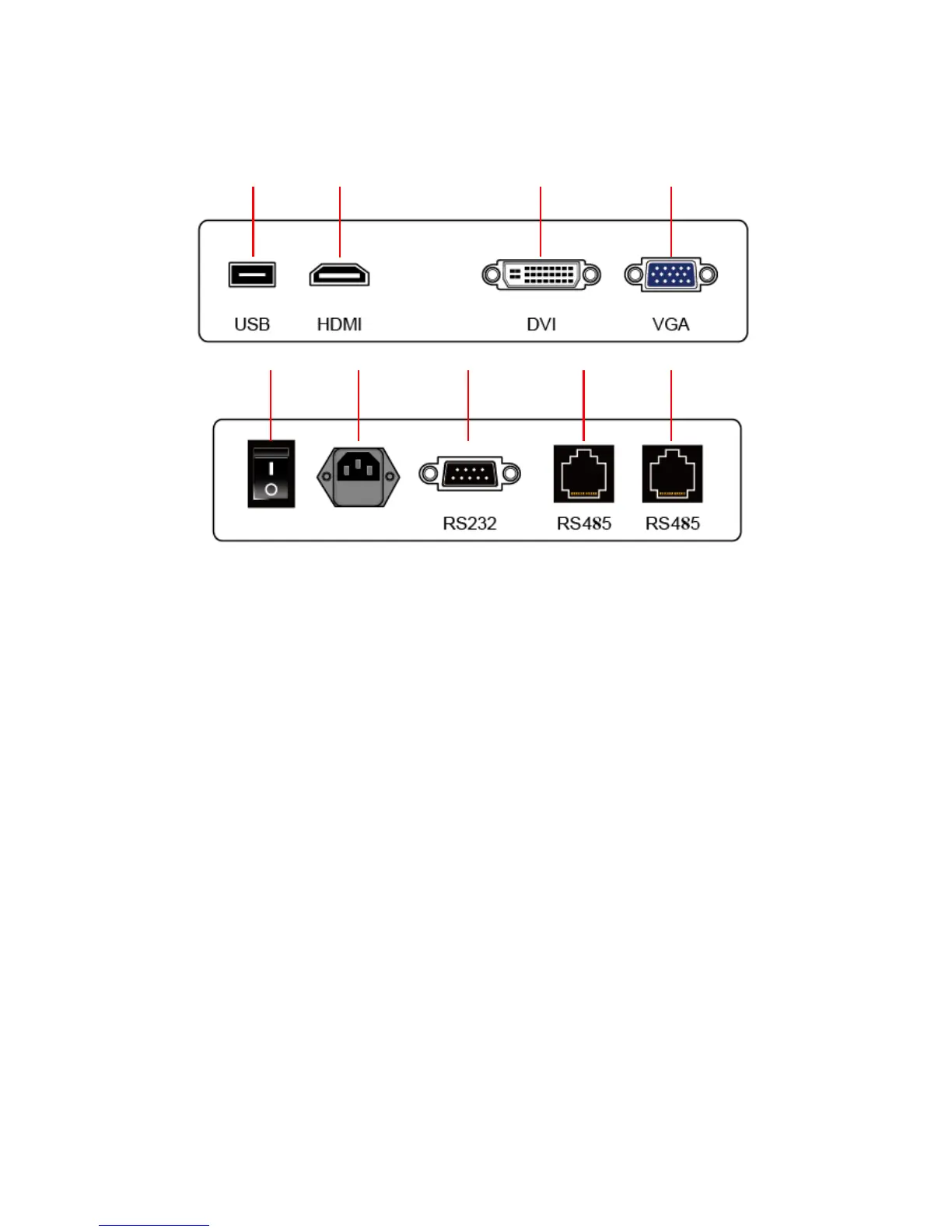

Input / Output Terminals
1. VGA (IN): Connect the VGA output of a PC, or an AV device by using a VGA cable.
2. DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device by using a
DVI-HDMI cable.
3. HDMI (IN): Connect the HDMI output of a PC, or an AV device by using a HDMI cable.
4. USB: USB can play content (photo, music, movie).
5. RS485 (OUT): RJ45 control function for the daisy chain application.
6. RS485 (IN): RJ45 network input connection for the use of remote control from computer.
7. RS232 (IN): RS232C network input connection for the use of remote control from computer.
8. AC (IN): Connect the supplied power cord to the wall outlet.
9. Power Switch: Press to switch the main power on/off.
○
5
○
2
○
1
○
8
○
9
○
7
○
6
○
3
○
4

Dynascan DS2 DS322LR4-1 Specifications

General

Brand	Dynascan
Model	DS2 DS322LR4-1
Category	Monitor
Language	English
