Dynatron® 850plus & 550plus
Ultrasound Technical Information
101
Beam Profile
(For Dynatron 850plus users only. The Dynatron 550plus does not offer ultrasound.) The

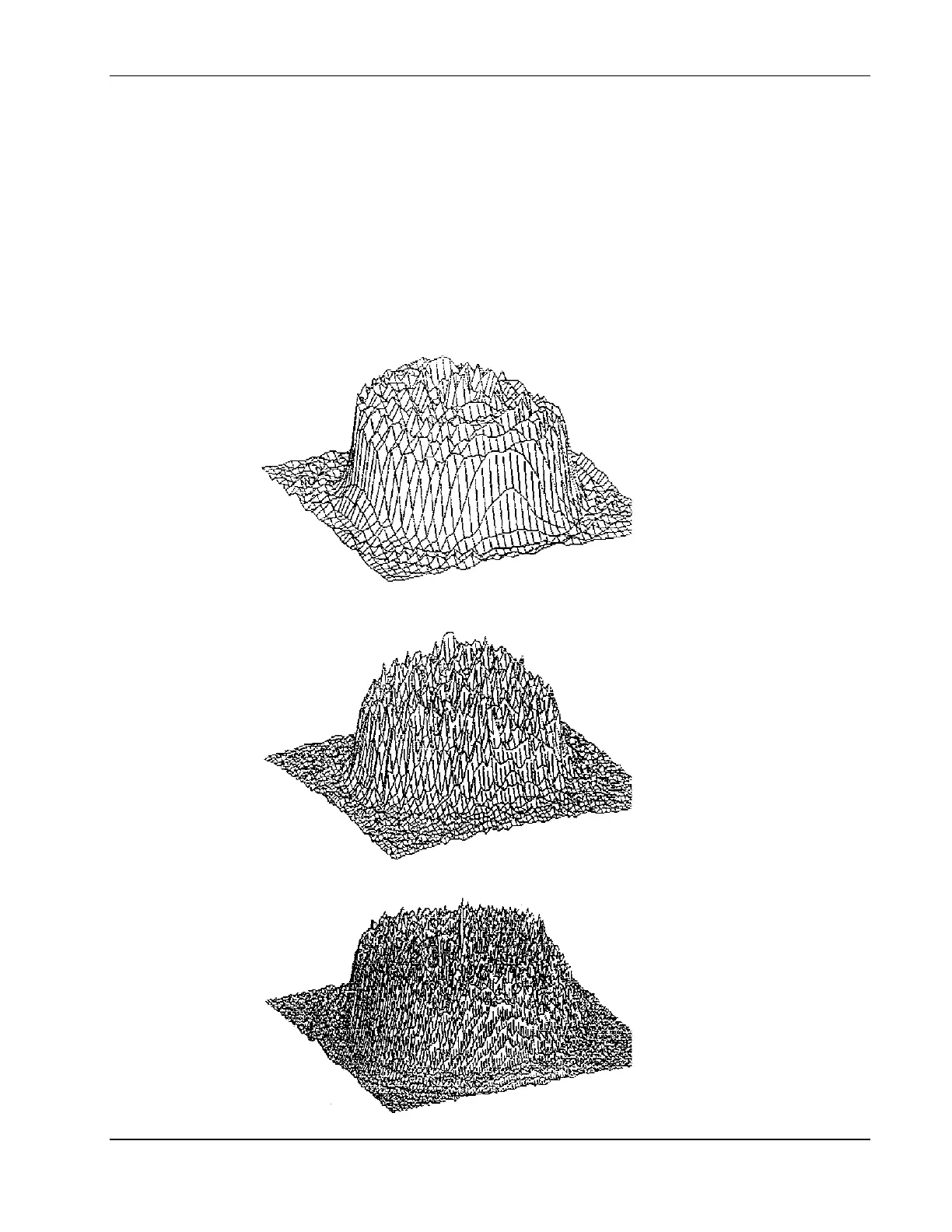

following diagrams show the typical spatial distribution of the radiated field for each size of
Dynatron 850plus sound head. This applies to the radiation emitted into the equivalent of an
infinite medium of distilled, degassed water at 30˚ C and with line voltage variations in the range
of ±10 percent of the rated value.
1 MHz
2 MHz
3 MHz
10 cm
2
Head. Near Field
