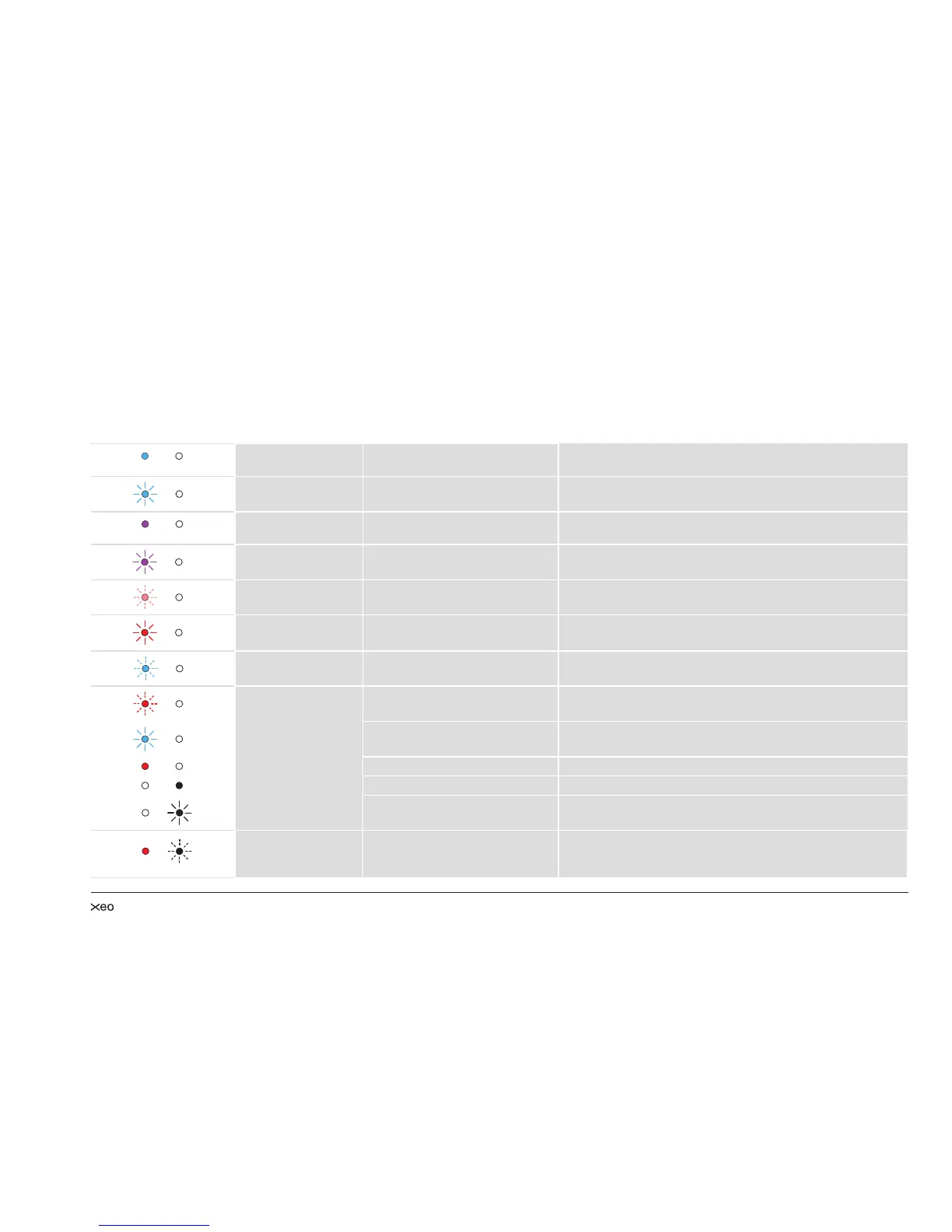

Status LEDs on the front
The two LEDs in the upper left corner of the cabinet front indicate the operational state of the speakers
and system with various colors and blinking functions.
On-state Illuminated in blue The speaker is switched on, a 44.1/48k transmitter connection
is established, and an audio signal is played back.
On-state Slow blinking in blue The speaker is switched on, 44.1/48k transmitter connection is
established, but an audio signal cannot be found.
On-state Illuminated in purple The speaker is switched on, a 88.2/96k transmitter/master
connection is established, and an audio signal is played back.
On-state Slow blinking in purple The speaker is switched on, 88.2/96k transmitter/master
connection is established, but an audio signal cannot be found.
Switch-on process Fast blinking dimly in red
for 40 s
The speaker is being switched on.
Connection Slow blinking in red There is no active transmitter/master or no connection possible.
Search Fast blinking in blue for 20 min Searching for an active input.
Synchronization/
Connection
Fast blinking in red for 10 s System synchronization during no transmitter/master
connection.
Blue LED is turned off for 0.2 s New transmitter ID, transmitter input, or direct input is selected.
Illuminated in red for 5 s Receiver mode is changing.
Illuminated in white Bluetooth connection is established.
Slow blinking in white Speaker is in pairing mode.
Firmware loading White LED: slow to fast blinking
during the load sequence,
Red LED: illuminated
Firmware is being loaded.
