Dyson DC 23 Service Manual

Service manual
Fitting notes
17

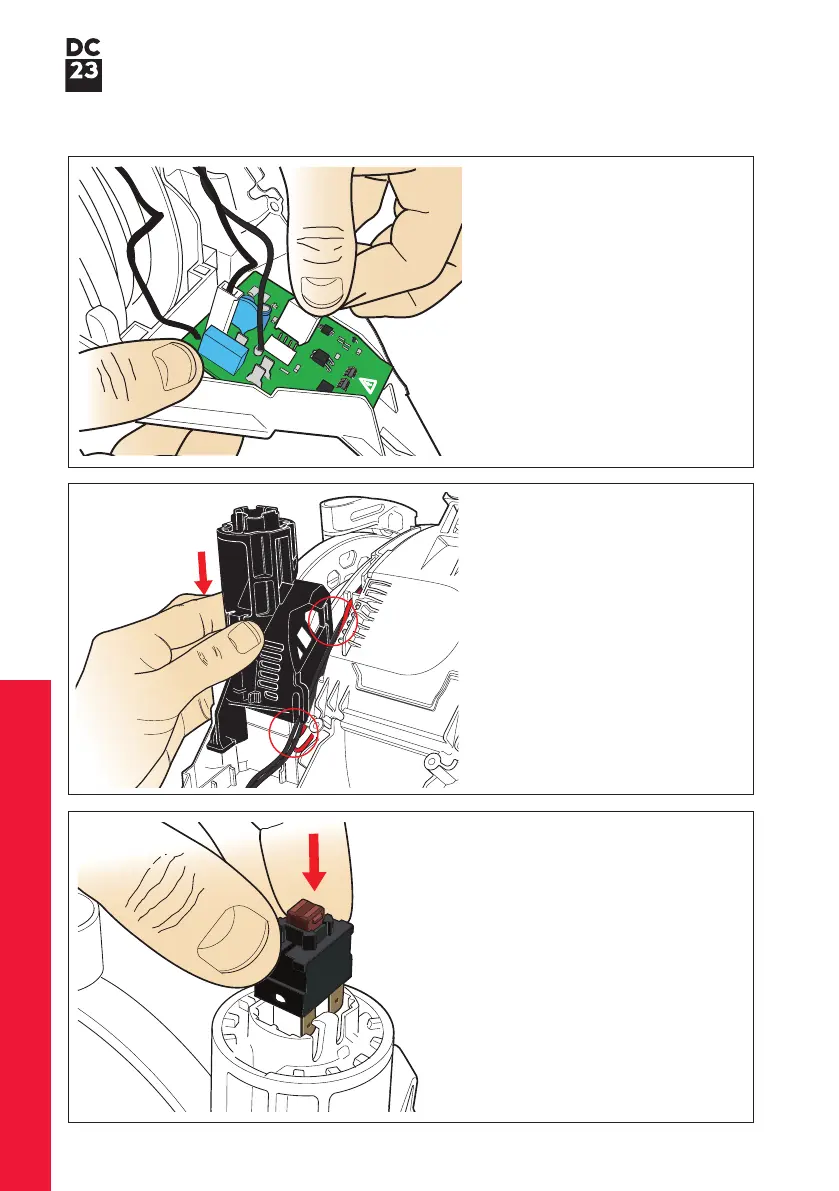

33 Lower the switch housing onto the
detail on the side of the chassis
ensuring the wires are retained
within the detail on the front of the
housing.
Fit the screw in the front of the
switch housing.
34 If previously removed locate the
switch into the top of the switch
housing.
32 If previously removed, locate the
PCB assembly onto the product.
Carefully connect all wires.
Motorhead variant only

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
