Fitting notes

Service manual

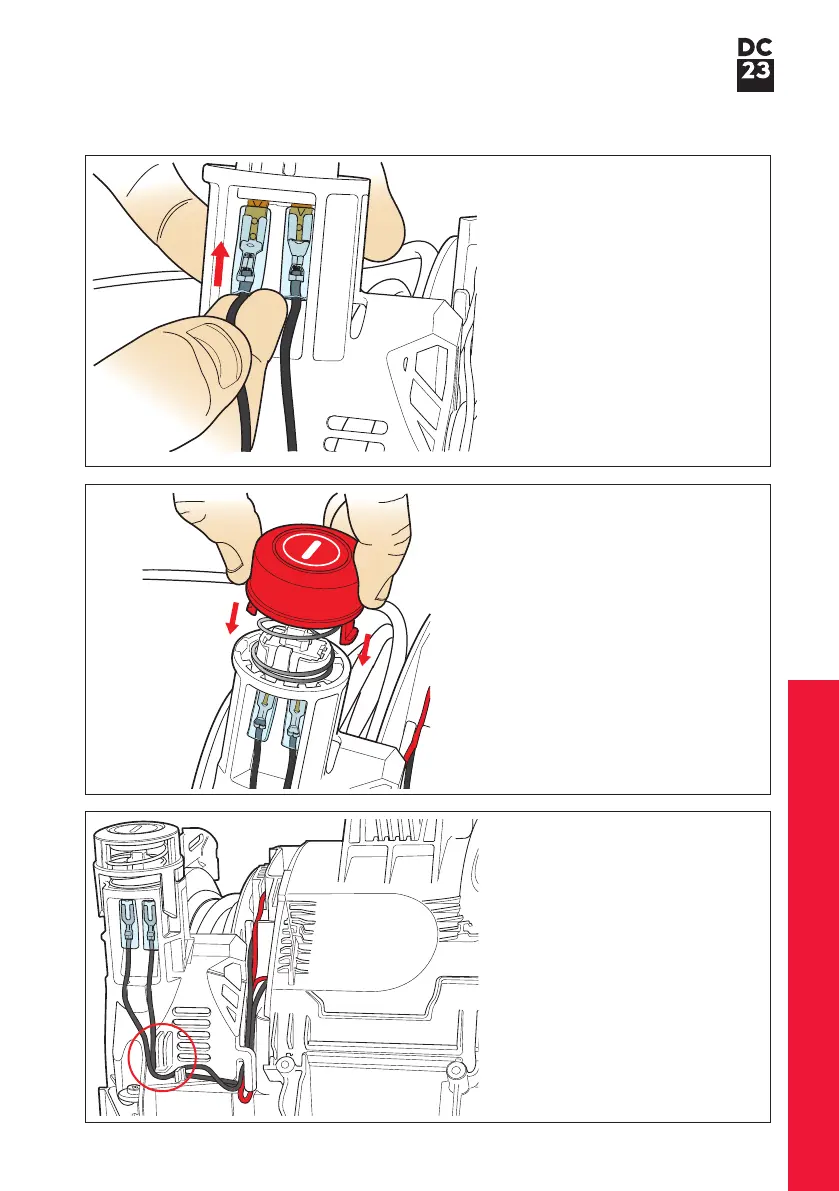

36 If previously removed push the

on/off actuator onto the switch

ensuring the lugs click into the

switch housing.

37 Dress the switch wires into the

channels provided on the switch

housing.

35 Attach the wires to the switch.

Table of Contents3
Electrical Safety Testing5
Electrical Overview6
Wiring Schematic Motorhead Variant7
Electrical Fault Diagnostic - Motorhead Variant8
Cable Rewind Replacement - Removal9
Cable Rewind Replacement - Fitting17
Motor Bucket Assembly Replacement - Removal25
Motor Bucket Assembly Replacement - Fitting30
Main Chassis Replacement - Dismantle35
Main Chassis Replacement - Assemble40
Sub-Assemblies - bin Assembly43
Sub-Assemblies - Power Wand Hose Assembly45
Sub-Assemblies - Power Floor Tool - Dismantle48
Sub-Assemblies - Power Floor Tool - Assemble59
Main Body66
Cyclone and bin Assemblies67
Wand and Hose Assemblies68
Power Floor Tool Assembly69
