42

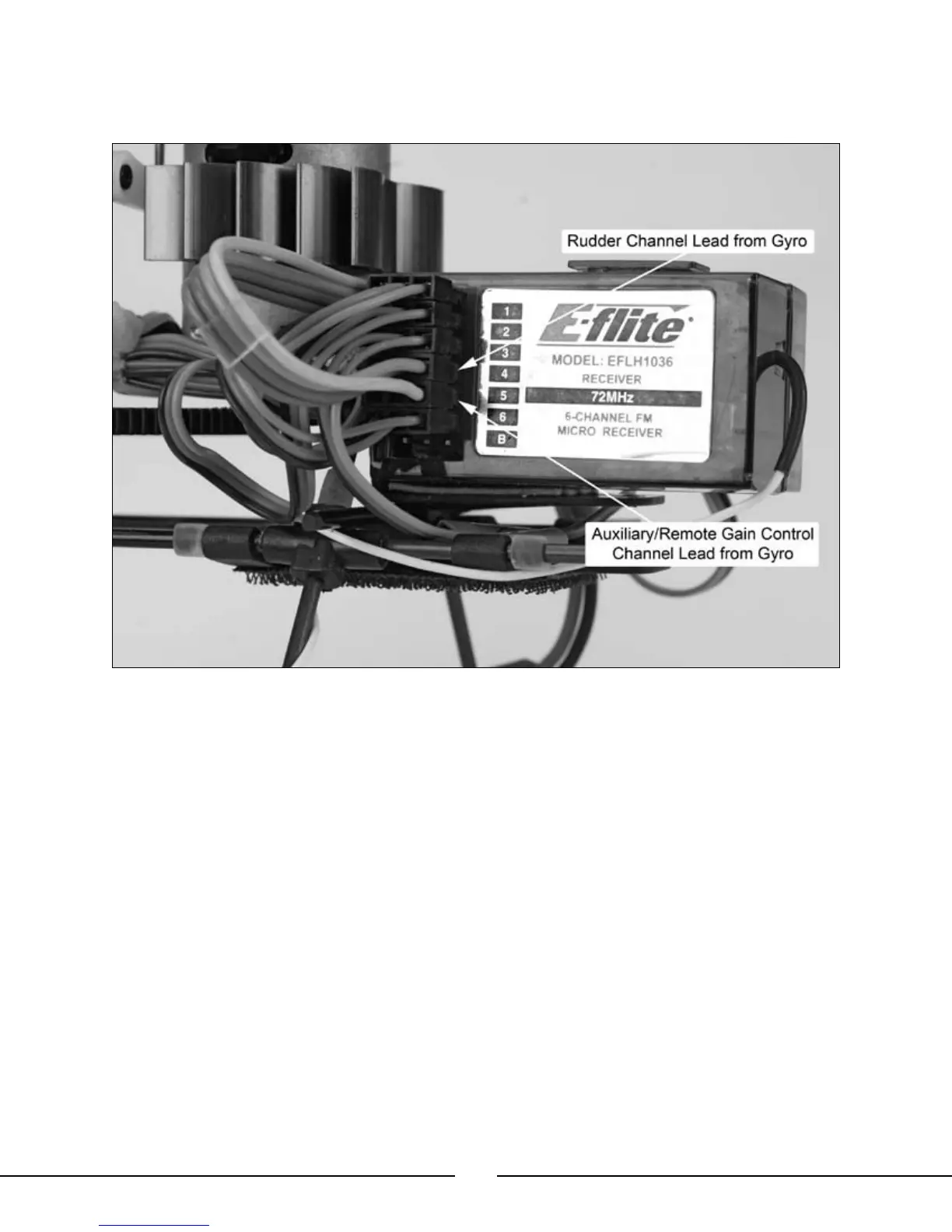

• If you will be using the remote gain control option for setting the gyro mode and gain from the transmitter, plug
the gyro’s auxiliary (AUX) lead into channel 5 of the receiver. Be sure that the lead is oriented properly so that it
is plugged into the “signal” (like the orange wire on the servo leads) side of the receiver’s pins.
Note: It is important to secure the 3-in-1 rudder, gyro rudder and auxiliary channel leads so that they
can not come in contact with the pinion and main gear, servo arms or motor case. We suggest using
the cable/zip tie wraps included in the “Mounting Accessories & Wrench” package to secure the leads
to the main frame.
