5.0 SENSORS
5.1 Sensors arrangement
5.2 Sensor types and relevant positioning
S1 S2 S3 S4
FLEX-Sensor O 2
Cod. AAA32-240



FLEX-Sensor CO+H 2
Cod. AACSE05



FLEX-Sensor NO
Cod. AACSE06



FLEX-Sensor NO 2
Cod. AG526-W00


 


FLEX-Sensor SO 2
Cod. AD527-W04


 


FLEX-Sensor CO 100.000
Cod. AACSE17



FLEX-Sensor CO 20.000
Cod. AACSE18



FLEX-Sensor CO+H 2 low range
Cod. AACSE24



FLEX-Sensor NO low range
Cod. AACSE25



FLEX-Sensor NO 2 low range
Cod. AACSE26


 


FLEX-Sensor SO 2 low range
Cod. AACSE28


 


CODE
POSITION

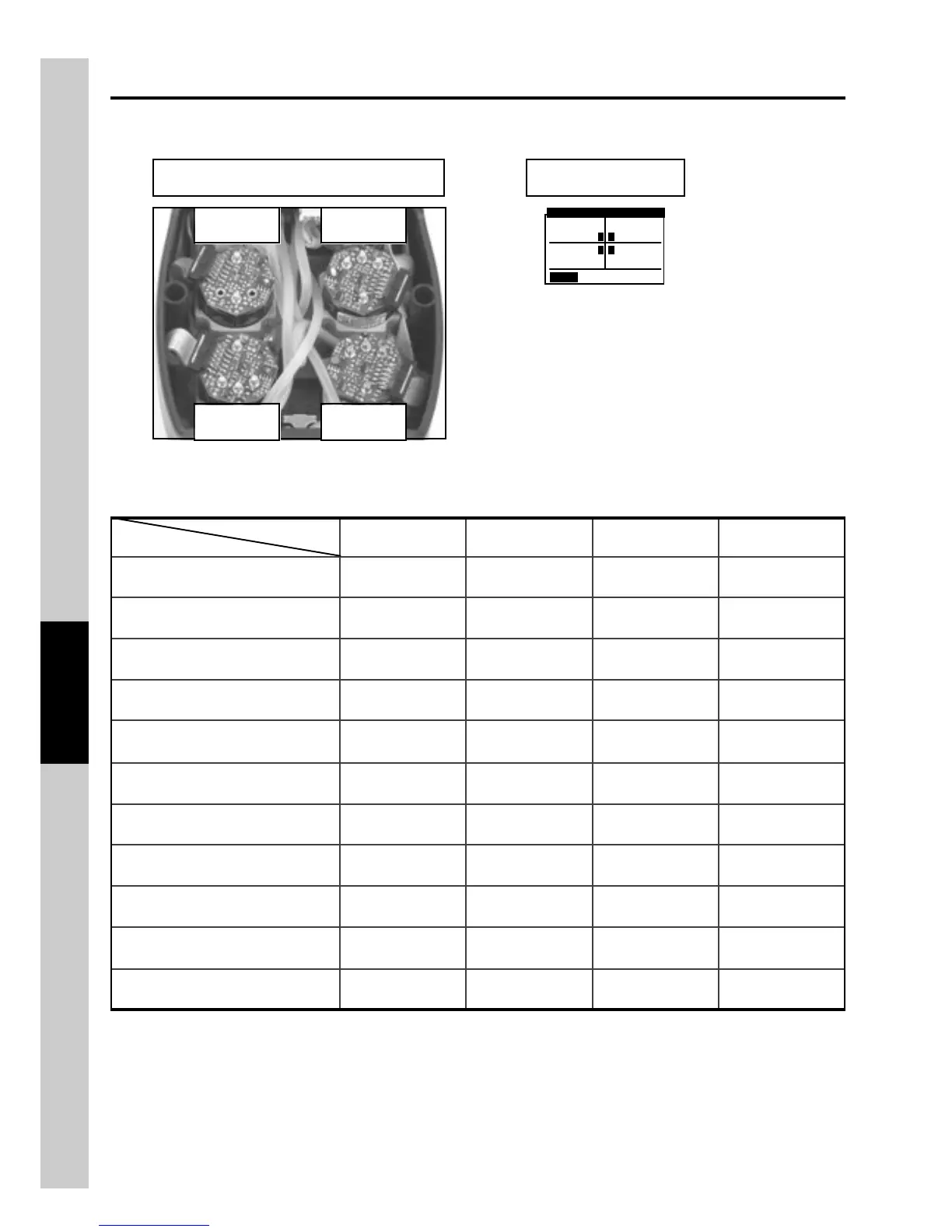

SENSORS ARRANGEMENT INSIDE
THE SENSORS COMPARTMENT
POSITION
S2
POSITION
S1
POSITION
S4
POSITION
S3
GRAPHICAL DISPLAY
OF ARRANGEMENT
SENSORS TYPE
QUIT CONFIRM
1 3
2 4
O 2 NO
CO SO 2
1
2
3
4
5
6
7
8
