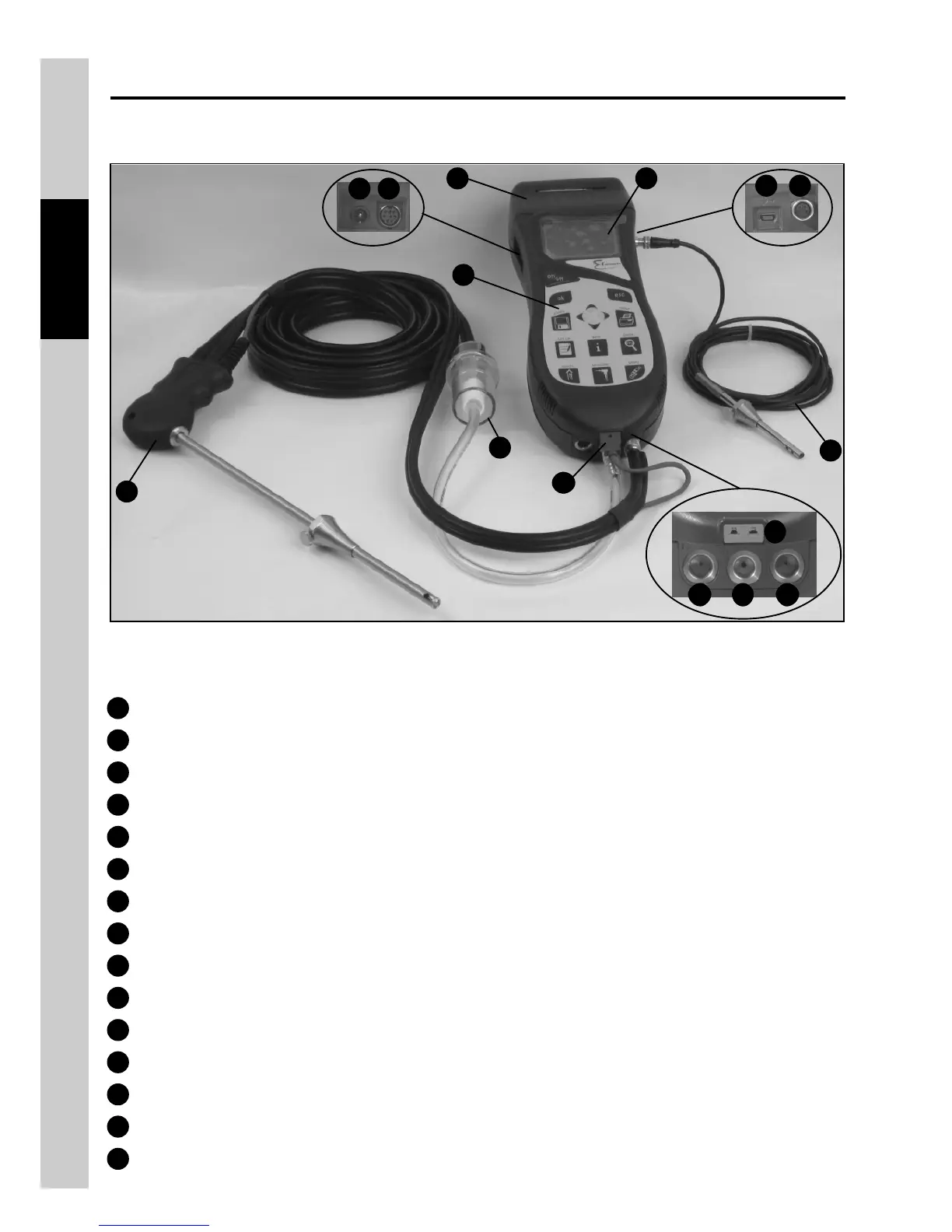

2.2 Overview of Flue Gas Analyzer Components
LEGEND
A
Keypad
B
Display
C
Cover to access the impact printer
D
Flue Sampling probe
E
Condensate separator and fine dust filter unit (Water Trap Assembly)
F
Compensated male connector of the fumes exhaust temperature probe
G
Combustion air temperature probe
H
P- connector (negative input for measuring differential pressure)
I
A - connector (sample probe input by means of the water trap)
L
P+ connector (positive input for measuring draft)
N
Battery charger socket
O
Serial cable socket for connecting to the draft gauge and to the ancillary probes
M
Temperature Tc-K female connector
Q
Female connector for connecting the combustion air probe (Incoming Air — Condensing Units)
P
Mini-USB socket for connecting to a PC
G
E
F
A
D
B
C
Q P
N O
M
H I L
Fig. 2.2
