5.5 Expandability to 4 sensors
In the 4400 instrument range, two are the versions which can be expanded:
The upgrading of the number of sensors can be easily done by the user by performing the following directions:
- Both the expandable instruments are arranged in a way to accept one or two additional sensors in positions S3
and S4.
- Identify, with the help of paragraph 5.2 'Sensor types and relevant positioning' the sensor (s) which must be
added to the existing configuration.
- To install the new sensors follow all the steps described in the paragraph 'MAINTENANCE' under 'gas sensors
replacement'.

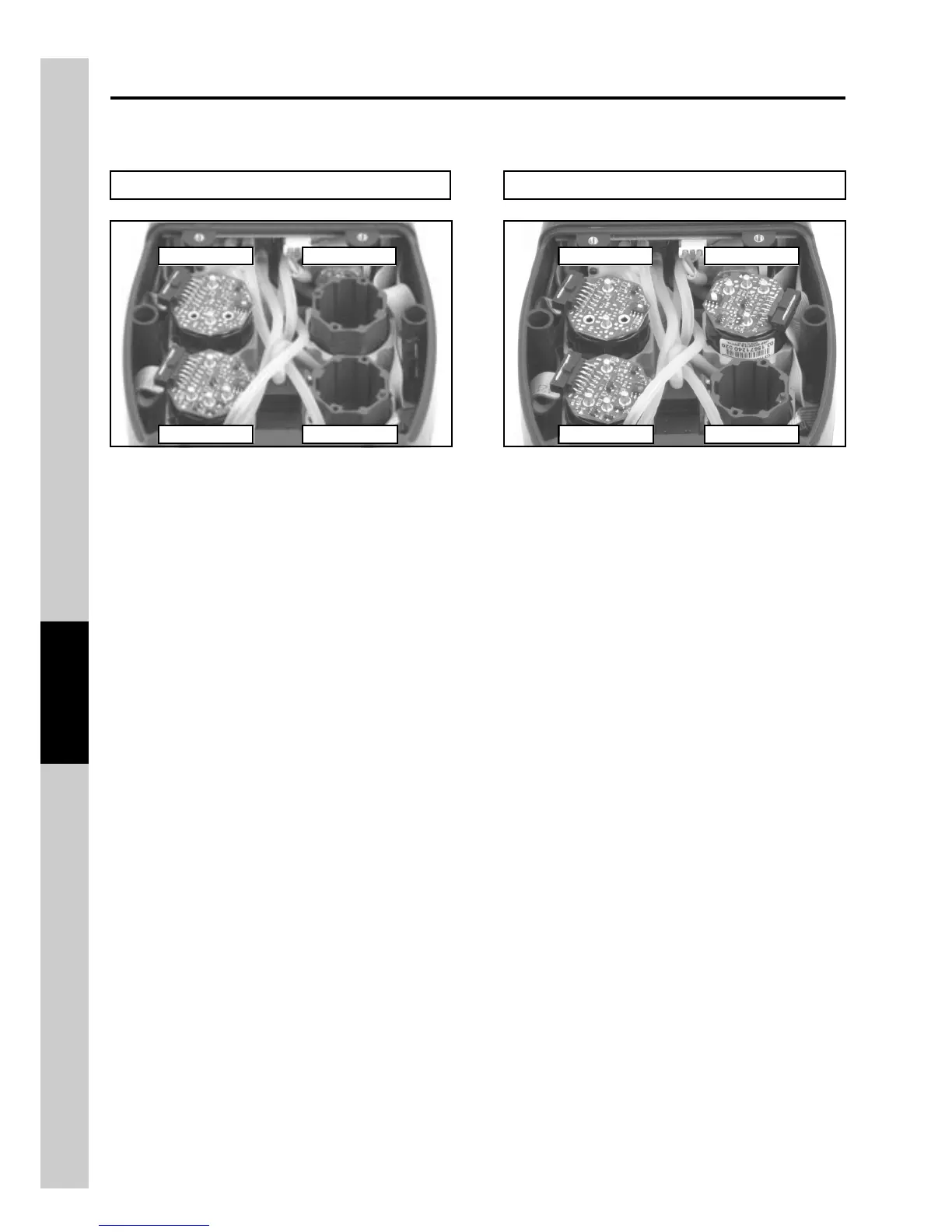

POSITION S4
POSITION S1
POSITION S2
POSITION S3
4400-1: 3 sensors, expandable to 4 sensors.
POSITION S4
POSITION S1
POSITION S2
POSITION S3
4400-: 2 sensors, expandable to 3 or 4 sensors.
