OPERATION AND SERVICE INFORMATION
Page 5
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B
CONTROLS AND INDICATORS
Vehicle controls and indicators consist of:
1. Key Switch / Direction Selector
2. State Of Charge Meter (optional)
3. Head Light Switch (optional)
4. Turn Signal Switch (optional)
5. Horn Button (optional)
6. Accelerator Pedal
7. Service Brake Pedal
8. Run/Tow Switch
l

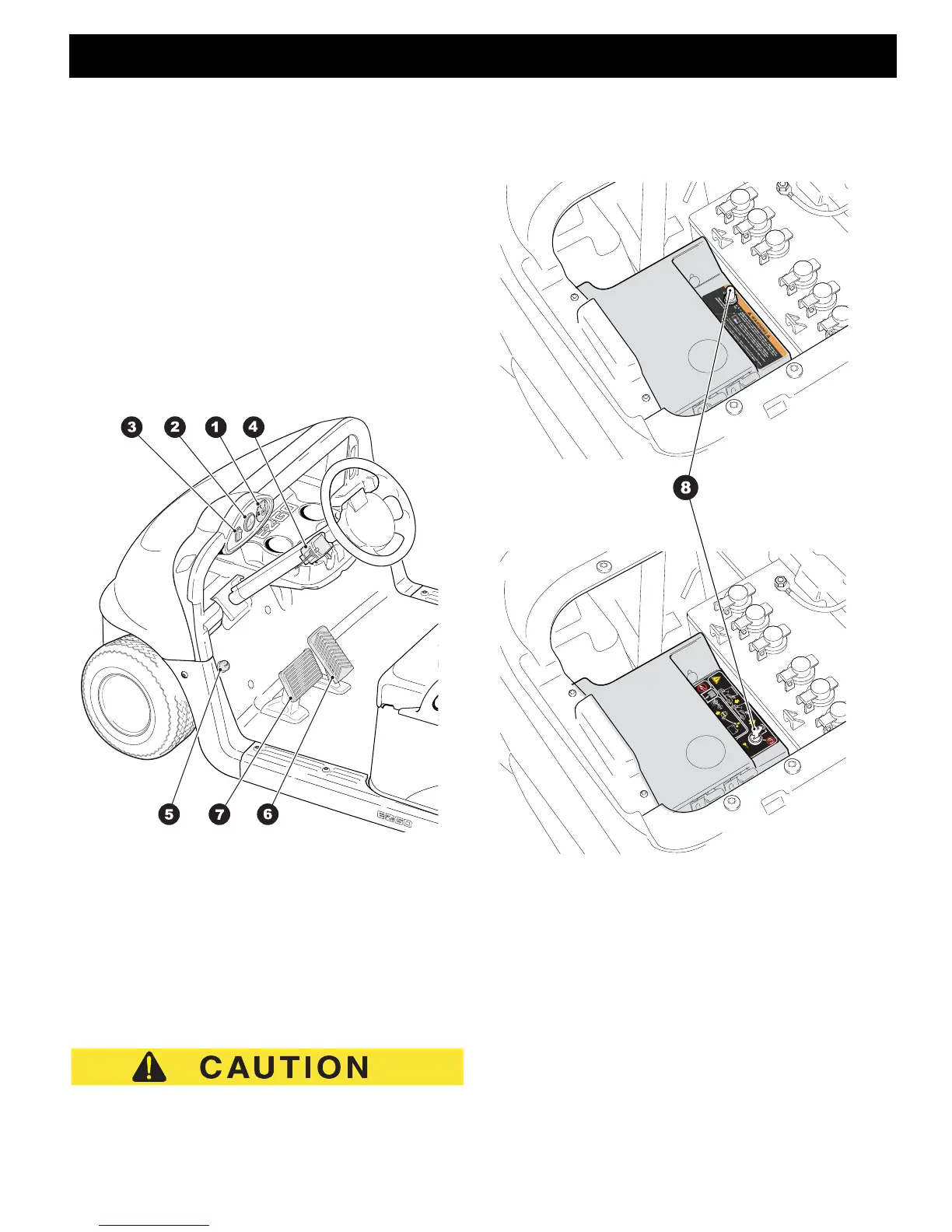

Fig. 8 Operator Controls & Gauges
KEY SWITCH/DIRECTION SELECTOR
Located on the dash panel, the key switch/direction se-
lector (1) enables the electrical system of the vehicle to
be turned on and off by turning the key; it also functions
as the direction selector for forward, neutral or reverse.
To prevent inadvertent operation of the vehicle when left
unattended, the key should be turned to the ‘OFF’ posi-
tion and removed.
To reduce the possibility of component damage, the
vehicle must be stopped before moving the key switch/
direction selector.
Fig. 9 Run/Tow Switch
STATE OF CHARGE METER (OPTIONAL
EQUIPMENT)
If the vehicle is equipped with a state of charge meter
(2), it is located in the dash panel to the left of the key
switch (1) (Ref. Fig. 8). The state of charge meter indi-
cates the amount of usable power in the batteries. The
state of charge meter on the electric vehicle shows the
condition of the battery pack with F indicating a full
charge on the battery pack and E indicating the battery
pack needs to be charged.
