Installation, Operation and Parts Manual
EE-6435B .WF
stable. Once the stack is complete, restrain it using straps, ropes or other suitable methods.
A maximum of two packs can be stacked on lorries, in containers, and in railway wagons, on condition that the packs are strapped together
and restrained to stop them falling.
Opening the packs
When the lift is delivered make sure that it has not been damaged during transportation and that all the parts specified on the packing list are
present.
Packs must be opened adopting all the precautions required to avoid injury to persons (keep at a safe distance when cutting the straps) or
damage to parts of the machine (be careful that no parts are dropped while you are opening the packing)
Take special care with the hydraulic power unit, the control panel and the platform cylinder.
PRODUCTS DESCRIPTIONS
3.1 General descriptions
This four post lift is generally composed by four posts, two beams, two platforms, a hydraulic oil cylinder and a set of power unit. It is driven by
an electro-hydraulic system. Up and down of platforms is controlled by the to and fro movement of the oil cylinder. To ensure safety for
operators, it is equipped with mechanical safety locks in the four posts , which will automatically engaged in the process of lifting so as to
prevent the platforms from sudden dropping down in case the hydraulic system fails to work.
3.2 Construction of the lift

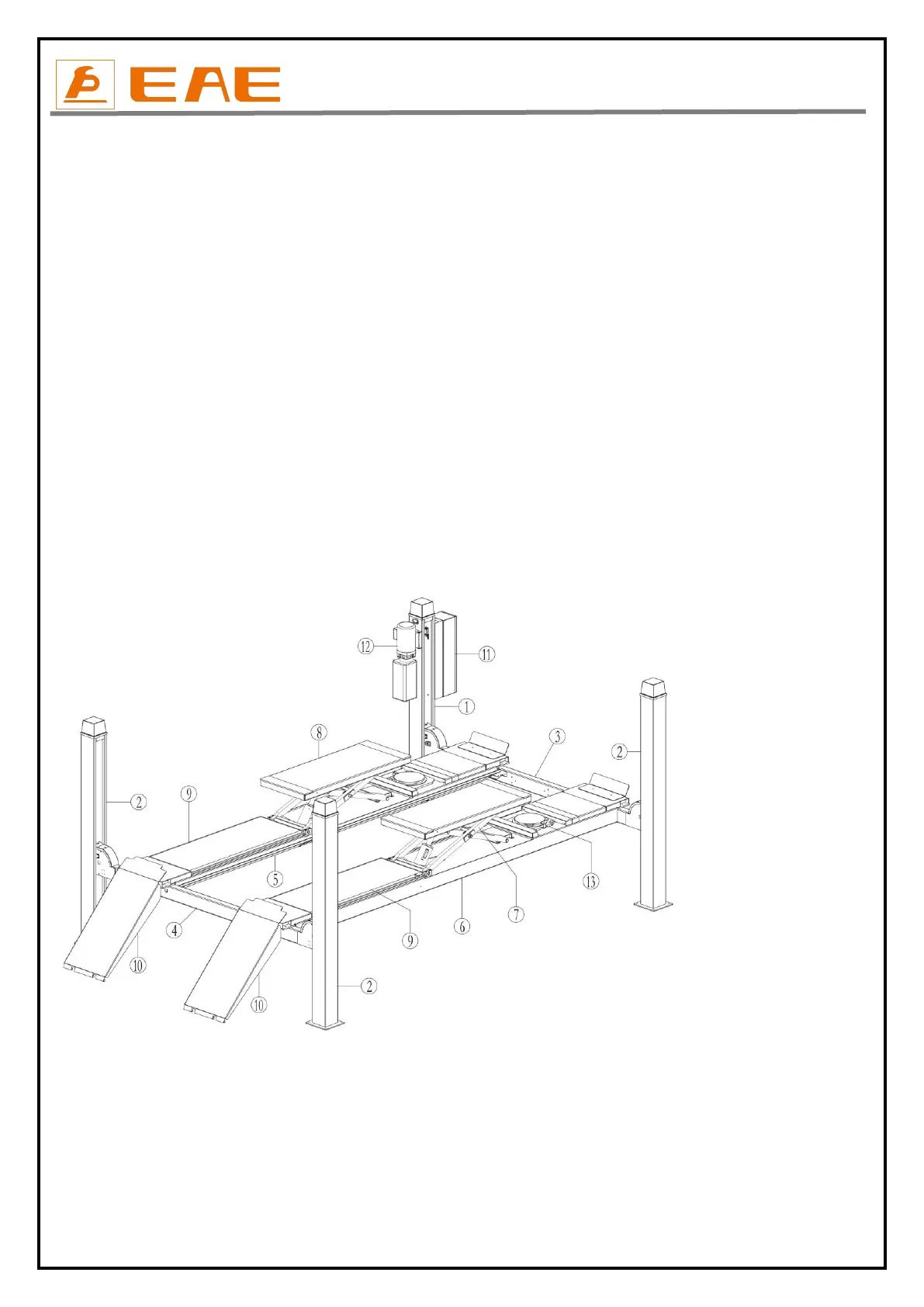

1. Power side post 2.post 3.power side crossbeam 4.the secondary crossbeam 5.Main platform 6. The secondary platform 7.main platform of
the secondary lift 8. The secondary platform of the secondary lift 9. Side slip 10. Drive-on ramps 11. Control box 12.Power unit 13.Turntabl
(optional)
