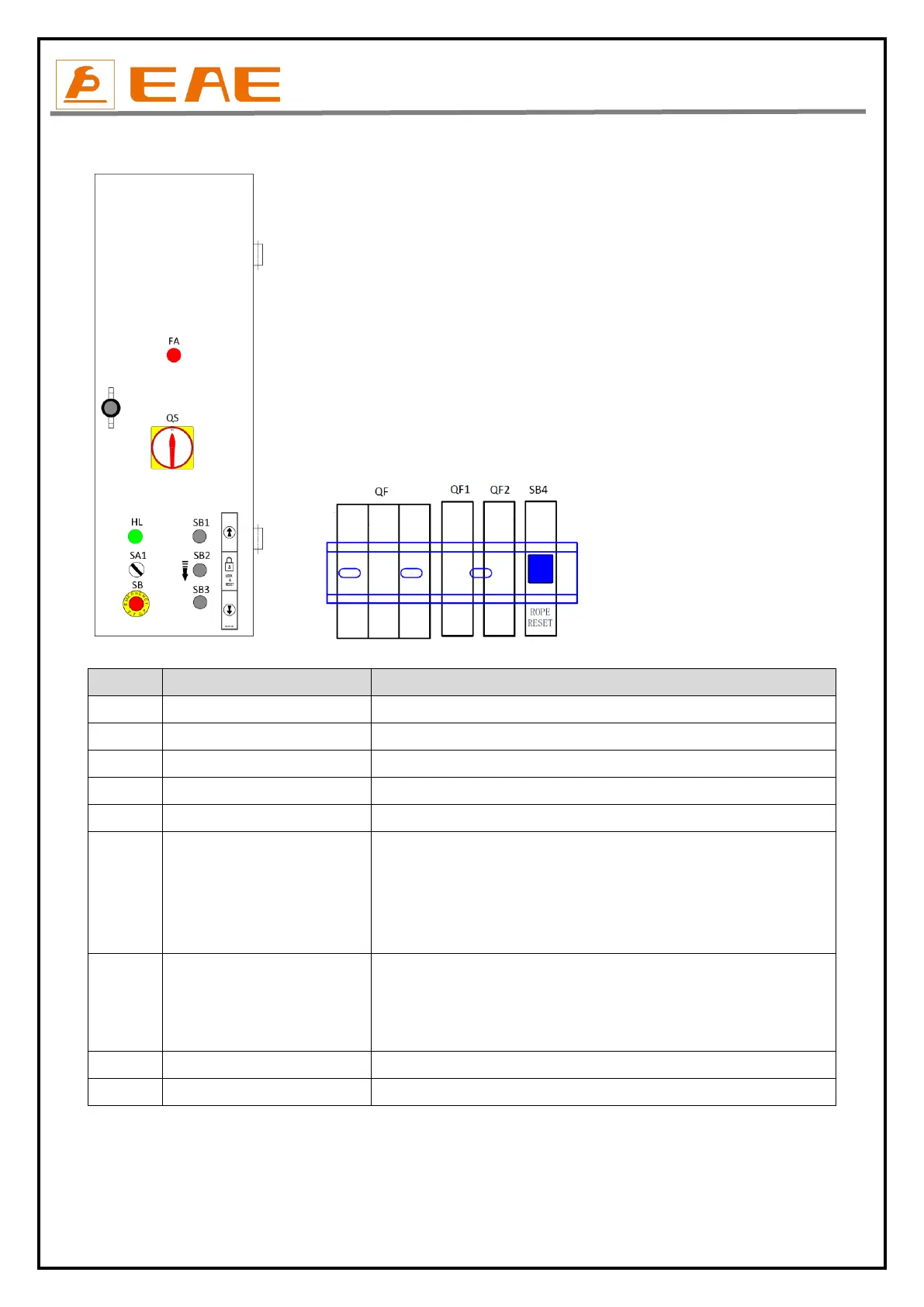

5.2 Descriptions of control panel
POS.
Name
Function
FA
Alarm buzzer
Low height warning
QS
Power switch
Power on/ off
HL
Power indicator
Display if electricity is connected
SB1
UP button
Control the rising movement
SB3
DOWN I button
Control the initial lowering movement
SB2
Safety lock /DOWN II button
1.1 In case the clearance between the platform and the floor is more than
300mm, press DOWN II button to lock the platform.
1.2 In case the clearance between the platform and the floor is less than
300mm, press DOWN II, the platform will continue lowering to the lowest
position and alarm buzz will be heard.
SB4
Reset button
As the lift is equipped with ‘out of level protection system’, in case the steel
ropes are not properly adjusted, UP and DOWN button will lose its control
function. In this case the operator can push this button and DOWN button to
lower the platform in emergency conditions.
SA1
Selection switch
Shift working status from lift to the secondary lift.
SB
Emergency stop
Ensure quick stop in emergency situations
