Installation, Operation and Parts Manual
EE-6435B .WF
INSTALLATION INSTRUCTIONS
4.1 Preparations before installation

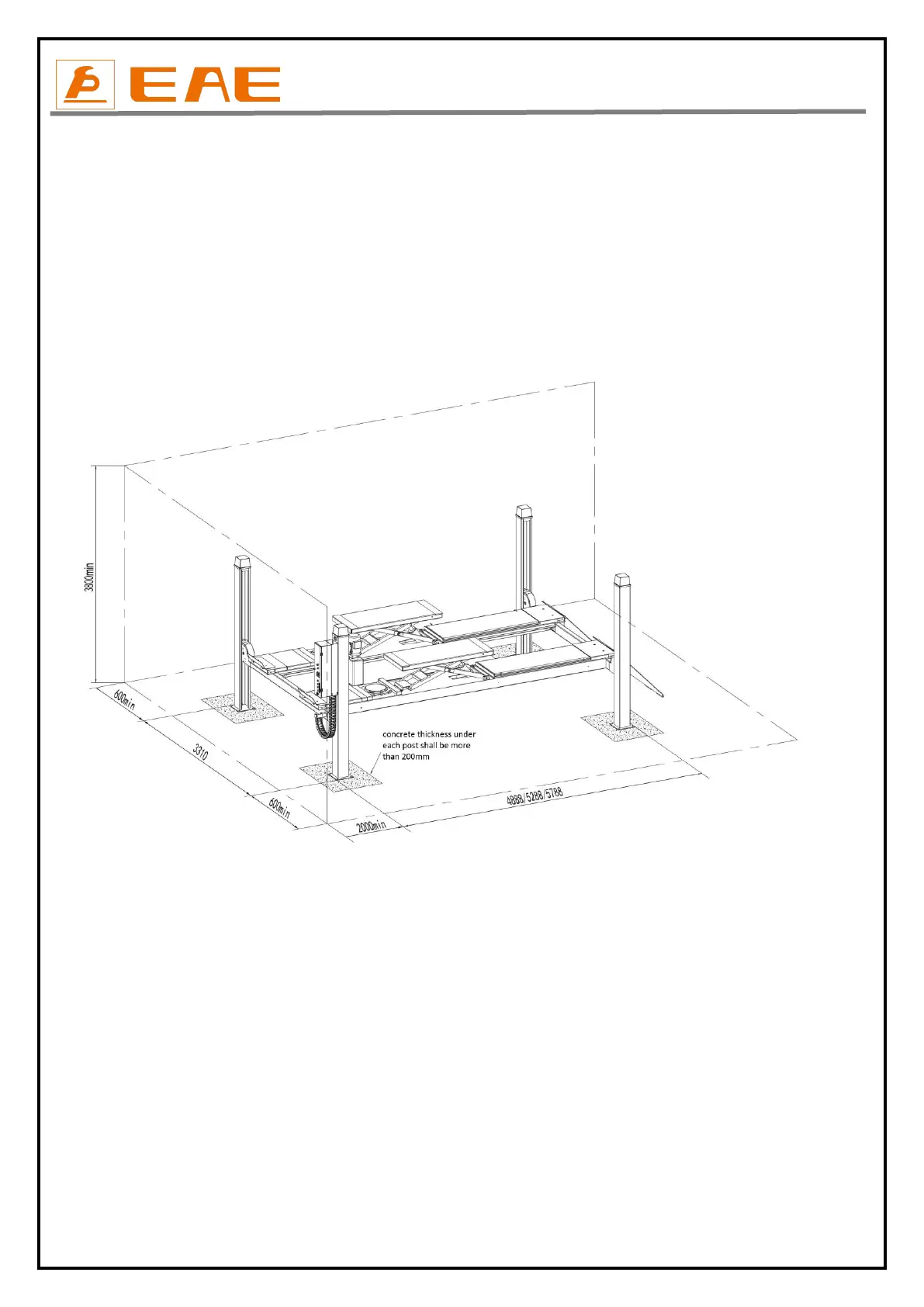

4.1.1 Space requirements.
Refer to 3.3 for the dimensions of the lift. There must also be a clearance of at least 1 meter between the lifting platform and fixed elements
(e.g. wall) in all lifting positions. There must be sufficient space at the ends of the lifting platform for driving vehicles on and off.
To stop vehicles colliding with the ceiling, it is advisable to fit an overhead light barrier in low ceiling buildings.
4.1.2 Foundations and connections
The user must have the following work performed before erecting the lift.
Construction of the foundation following consultation with the manufacturer’s customer service or an authorized service agent.
Routing of the wiring to the installation location. The user must provide fuse protection for the connection.
Routing of the compressed air connection to the installation location. The user must install a service unit upstream of the connection.
Refer also to the corresponding information in the operation instructions.
