Installation, Operation and Parts Manual
EE-6435B .WF
1.5 Risks and safety instructions

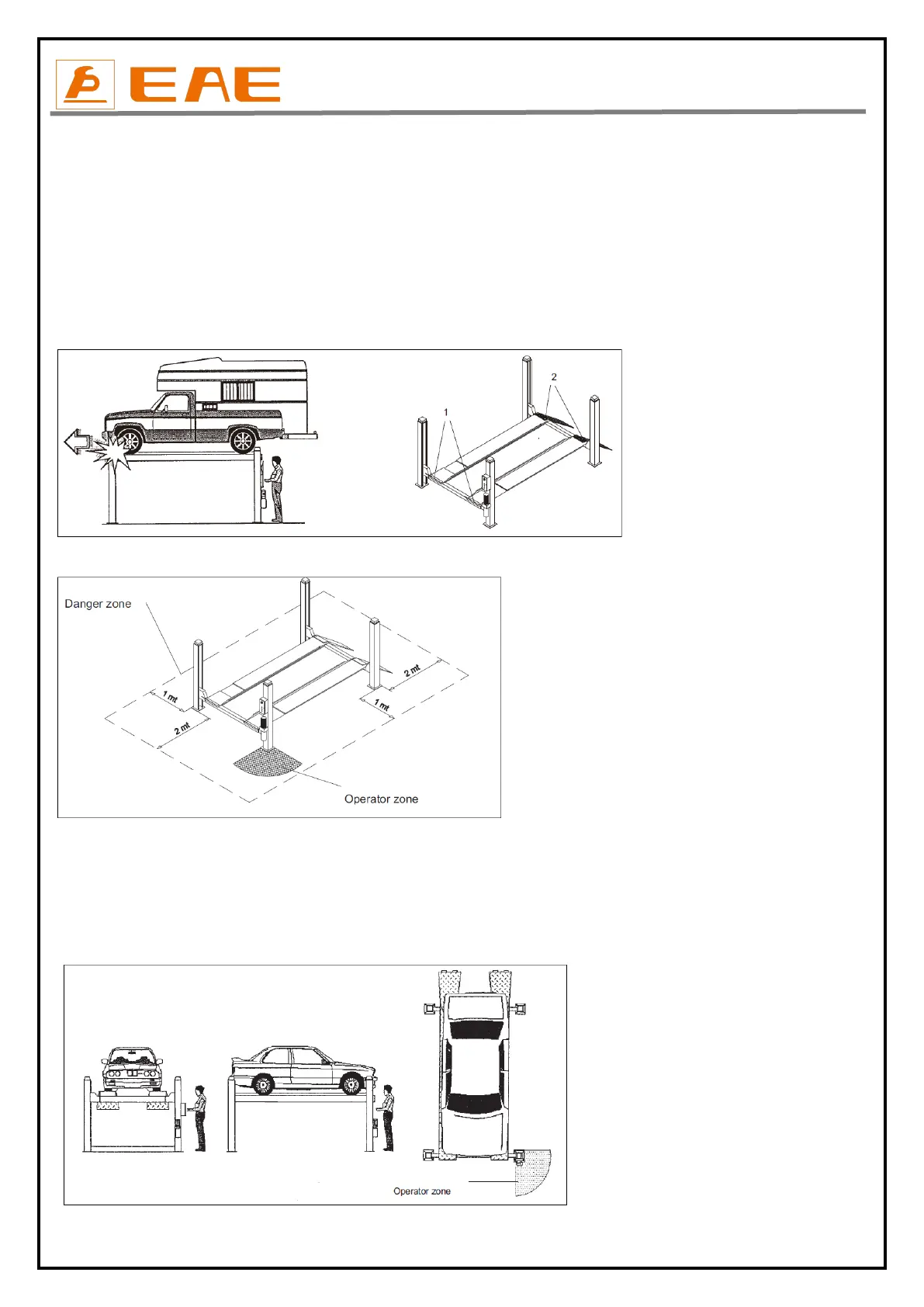

During lift functioning, the operator must remain in the control station as defined in figure 1.
The presence of persons beneath the cross-pieces and/or the platforms when they are moving, or the presence of persons inside the danger
zone indicated in figure 2 is strictly prohibited. The area occupied from the lift and its surrounding width 1, 2 meters of the lift are defined as
“DANGER ZONE”.
The operator parking area, only for operating the lift, is defined as “OPERATEOR ZONE”.
During operations persons are admitted to the area beneath the vehicle only when the vehicle is already in the elevated position, when the
cross-pieces and platforms are stationary, and when the mechanical safety devices (wedges) are firmly engaged in the slots on the safety rods.
(Fig. 1)
(Fig. 2)
RISK OF CRUSHING (OPERATOR)
Possible if the operator controlling the lift is not in the specified position at the control panel.
When the platforms (and vehicle) are lowering the operator must never be partly or completely underneath or near of the movable structure.
Always remain in the operator zone (Fig. 3).
(Fig. 3) Operator zone
