EAE EE-6435B.WF - Annex4, Exploded Drawings and Parts List

Installation, Operation and Parts Manual
EE-6435B .WF
37

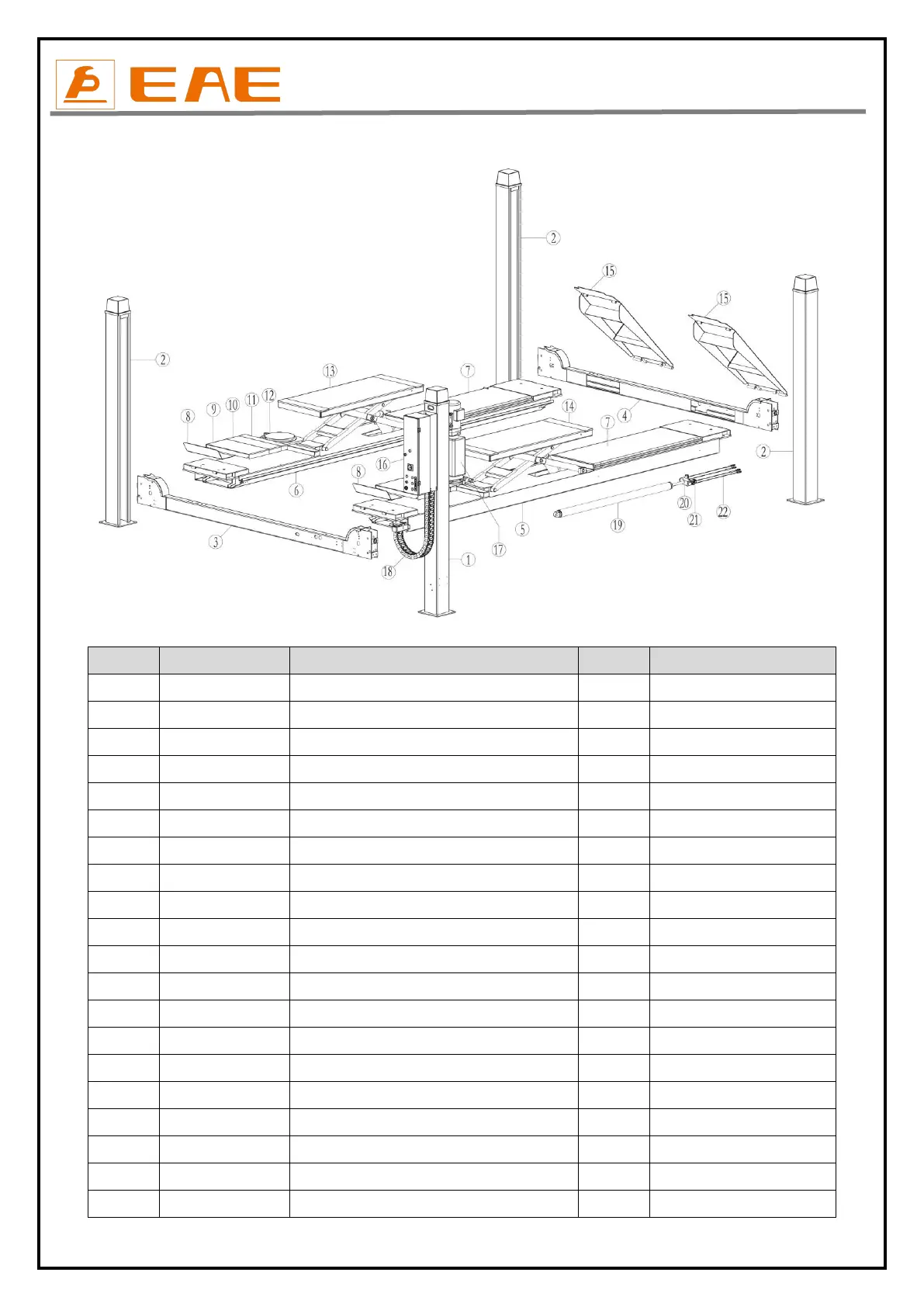

Annex4,Exploded drawings and parts list
Pos.
CODE
Name
QTY
NOTE
1
Power side post B
1
2
Secondary post
3
3
Power side crossbeam
1
4
Secondary crossbeam
1
5
Main platform
1
6
Secondary platform
1
7
Slip plate
2
8
Front wheel retaining plate
2
9
614027279
Portable box(380)
2
10
614027280
Portable box(200)
2
11
Portable box(90)
4
48L/52L
12
615027049
Turntable（optional）
2
13
Auxiliary lifting platform (main)
1
14
Auxiliary lifting platform (secondary)
1
15
610027922
Drive-on ramp
2
16
Control unit
1
17
Power unit
1
18
208101007
Plastic chain
1
19
615027005
5T oil cylinder
1
20
614027033B
Steel rope connection block
1
