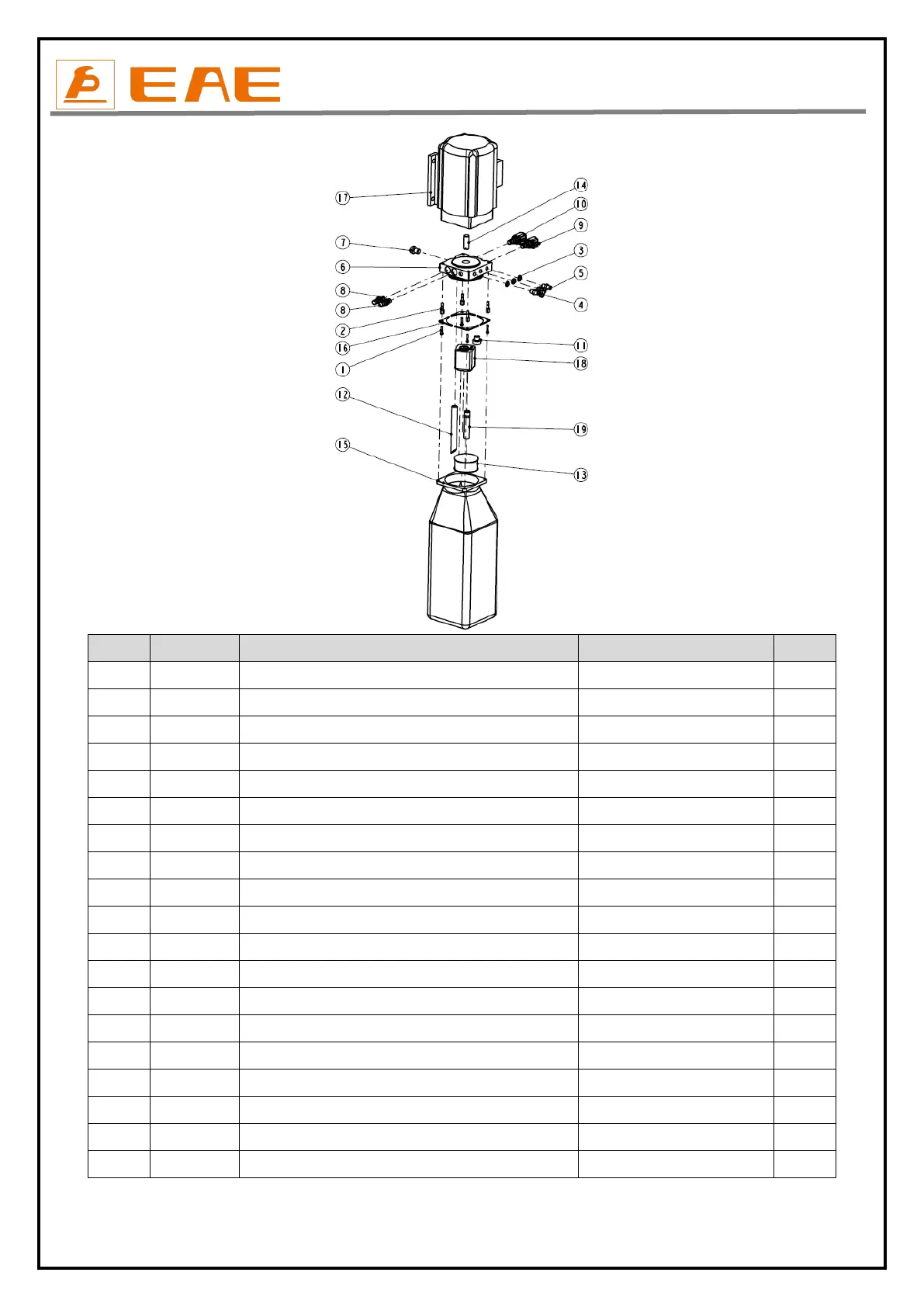

EAE EE-6435B.WF - Page 32

Installation, Operation and Parts Manual
EE-6435B .WF
32
Pos.
CODE
Name
Specification
Qty
1
201103001
Hex flange screw
M5*25
4
2
202109064
Hex socket cylinder head screw
M6*30
4
3
207103019
Composite seal ring
M14
3
4
310101003
Straight connector
M14X1.5-G1/4/60
2
5
310102013
90 degree connector with swivel
08N-M14S
1
6
330101079
Composite hydraulic block
YF-64040
1
7
330302001
Single way valve
DYF-C
1
8
330304001
Overflow valve
EYF-C
2
9
330308002
Solenoid directional valve (2 phase 3 way)
LSV-08
1
10
330308006
Solenoid unloading valve
DHF06-220H/DC24
1
11
330308015
Pressure supplementing valve (fixed throttle hole )
BCYF-C-I3.5
1
12
330402001
Oil -return tube
YH-D
1
13
330403001
Filter
YG-C
1
14
330404001
Coupling
YL-A
1
15
330405012
Oil tank
10L
1
16
410010091
Reinforced plate for oil tank
6254A-A5-B12
4
17
320201004
Motor
380V-2.2KW AL -3PH-50HZ-2P
1
18
330201012H
Gear pump
CBK-F242-H
1
19
330402001
Oil return tube
YX-BL-
1
