Eagle Nebula - Physical Dimensions

3 | P a g e

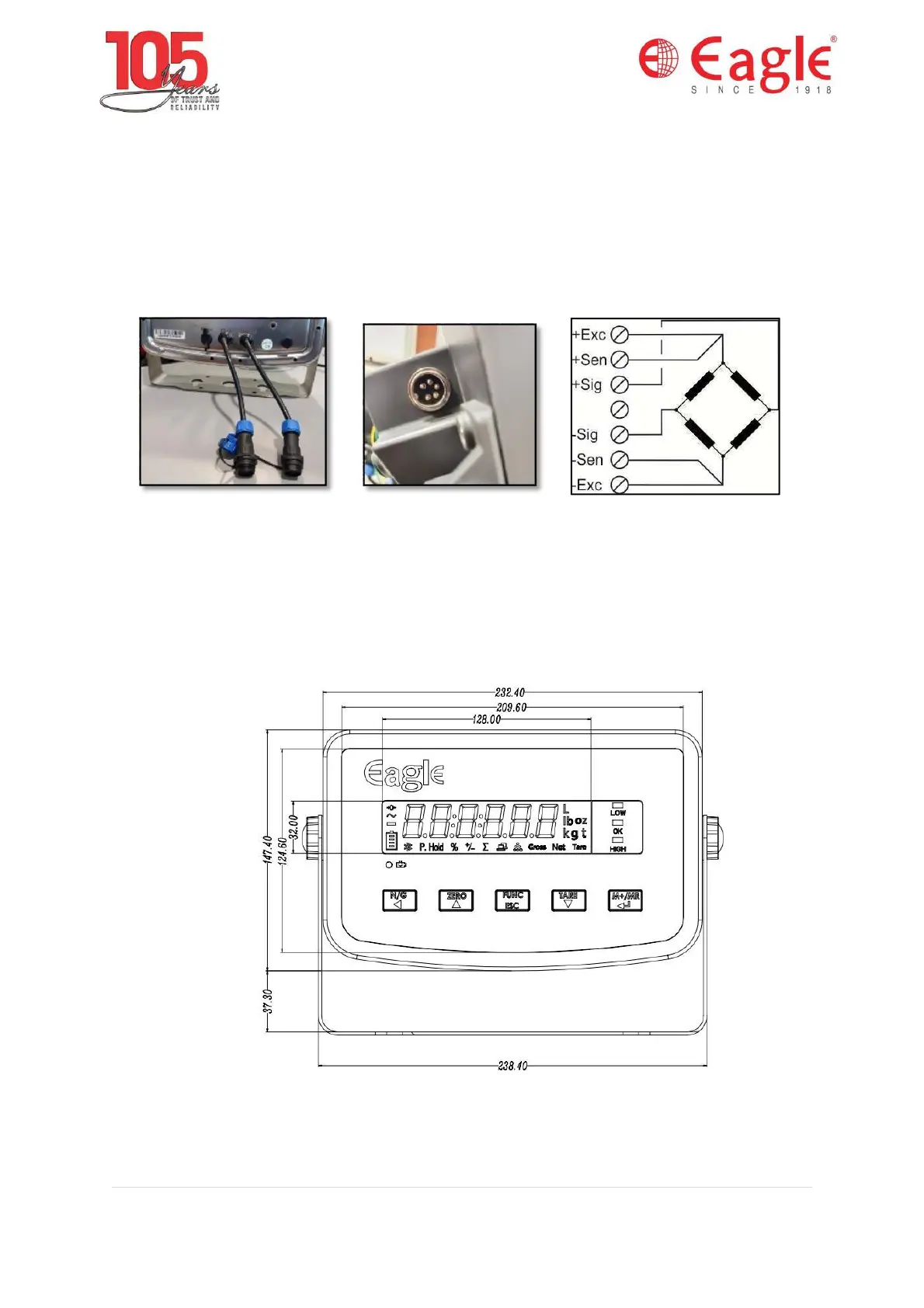

Load cell Pin Connection as per below,
1. Ex+
2. Ex –
3. Sig +
4. Sig –
5. Shield
Load cell Connector SS & ABS Variant 4 wire LC connection
1.4 Physical Dimensions
Please refer below dimension of Nebula SS Indicator and ABS
Indicator
(Nebula SS Indicator Dimensions)
