Eastech Flow Controls Vantage 2210 User Manual

Vantage Series 2200

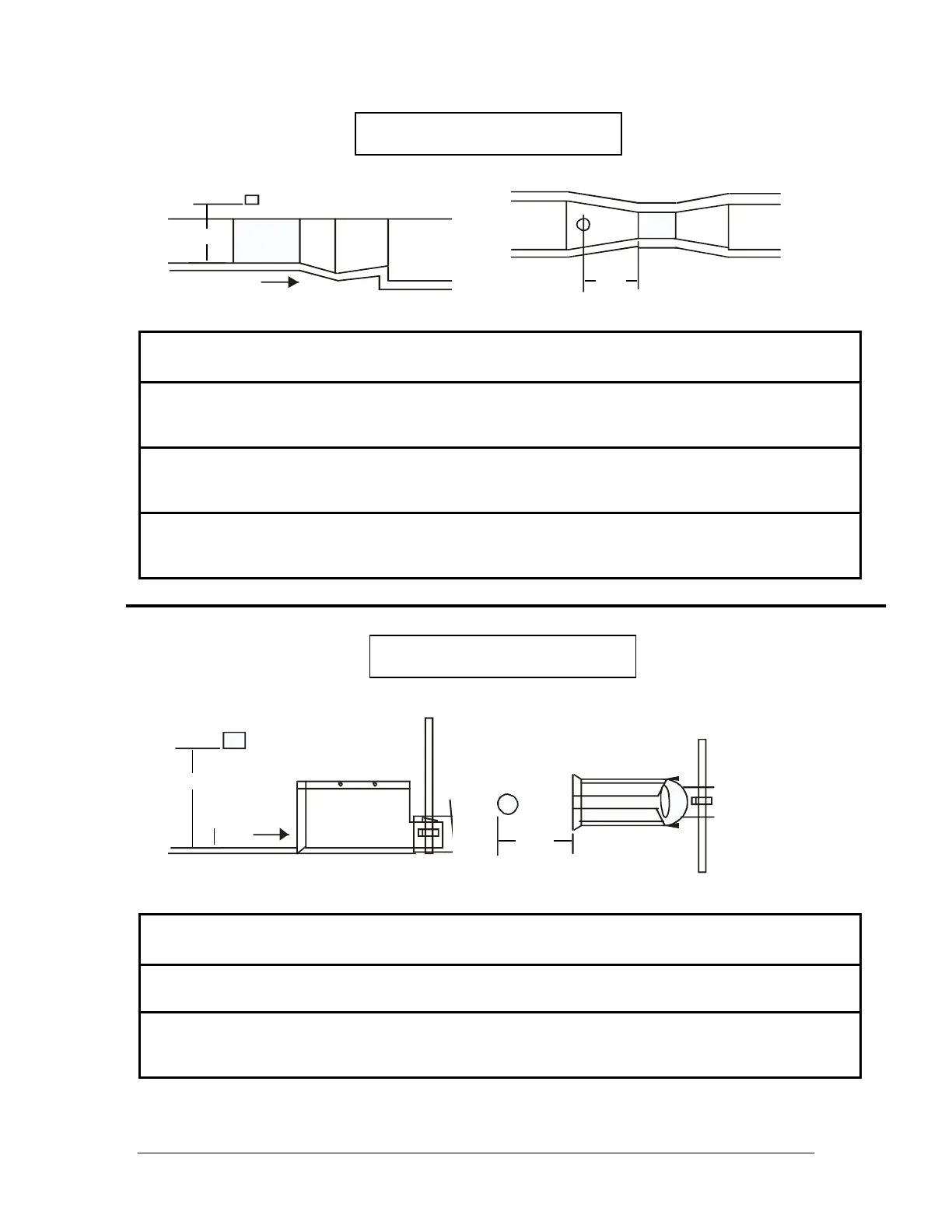

Sensor Vertical and Horizontal Mounting References
Flow
Side View
V Mt
Top View
H Mt
Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise
(in.) (in.) (in.) Min. Max. Max (in.)
2 11.00 21.46 60 210 9.46
3 12.00 30.21 85 850 18.21
6 16.00 30.29 180 1800 18.29
9 22.50 38.01 280 4500 26.01
12 35.25 42.70 375 7500 30.70
18 37.25 43.70 550 12000 31.70
24 39.25 43.47 700 16000 31.47
36 43.25 43.98 1100 25000 31.98
48 47.00 44.75 1350 35000 32.75
V M t
Fluid
Surface
Flow
Side View
Floor
Top View
H Mt
Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise
(in.) (in.) (in.) Min. Max. Max (in.)
4 5.75 17.86 45 90 5.86
6 7.75 20.94 60 250 8.94
8 9.75 24.32 75 550 12.32
10 11.75 27.58 80 1000 15.58
12 13.75 29.99 100 1500 17.99
3-12
MANHOLE FLUMES
PARSHALL FLUMES
