Vantage series 2200
4.00"
2.75"
1.88"
3.00"
5.00"
.38"
.38"
FB7
0.43"
2.08"
2.71"
3.50"
2.50"
ORing
1" NPT
2" NPT
FB5
2-2

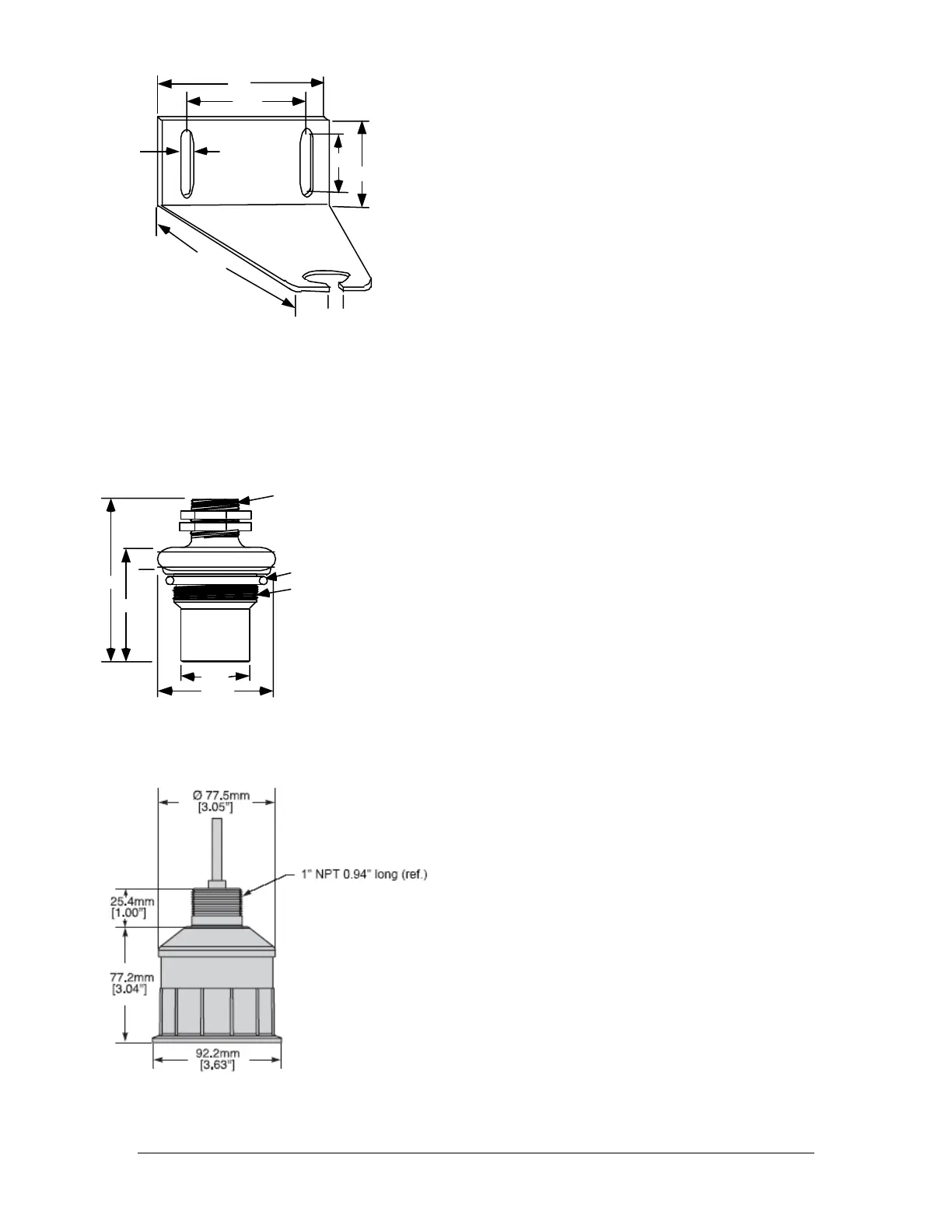

Sensor Mounting Bracket Dimensions:
The Vantage series 2200 is supplied with a stainless
steel mounting bracket. The mounting bracket should
be leveled in both plains. The 2200 sensor will be
mounted to the 1 inch hole in the mounting bracket.
Remove the top 1 inch nut from the sensor, slide the
cable through the slot in the bracket, and slide the 1
inch nipple on the sensor up through the 1 inch hole
in the bracket. Replace the 1 inch nut on the nipple
and tighten, or screw conduit fitting to nipple and
tighten to secure sensor. Adjust other nut if
necessary. Do not over tighten the nut.
FB7 Sensor Dimensions:
The FB7 sensor is used with flow or level applications
where the maximum head rise (maximum level) is
15.00 ft or less. (See specifications Page 1-2.) There is
a 1 inch NPT threaded nipple on top of the sensor for
mounting on optional mounting bracket and a 2 inch
NPT thread on the bottom barrel of the sensor for tank
mounting. An o'ring is provided on the sensor if
mounting with 2" NPT thread. This o'ring must be
used or sensor operation will be affected.
FB5 Sensor Dimensions:
The FB5 sensor is used with flow or level applications
where the maximum head rise (maximum level) is
25.00 ft or less. (See specifications Page 1-2.) There is
a 1 inch NPT threaded nipple on top of the sensor for
mounting on the mounting bracket.
