Vantage Series 2200
Vantage series 2200 Splice Procedure
When additional cable length is required, cable can be spliced up to a total length of 1000 feet. The
cable provided with the 2200 sensor has 2 twisted pairs with shields around each pair and a shield
around both pairs. Eastech Flow Controls Inc. splice kit part number is 544700-0001 which will include
butt splice connectors and coax seal strips. Prepare the sensor end wire and the wire to be spliced per
the following instructions. Must use Belden type 8728 or equal, 2 twisted pairs, 22 awg (7x30)
shielded wire.
1. Slice the outer cover on the wire and spread open to expose the foil on the two wire pairs. Be
careful not to slice into the foil or the inner wires
. There will be two pairs of wires, each being
covered by a colored foil. Split
the two pairs of wire.

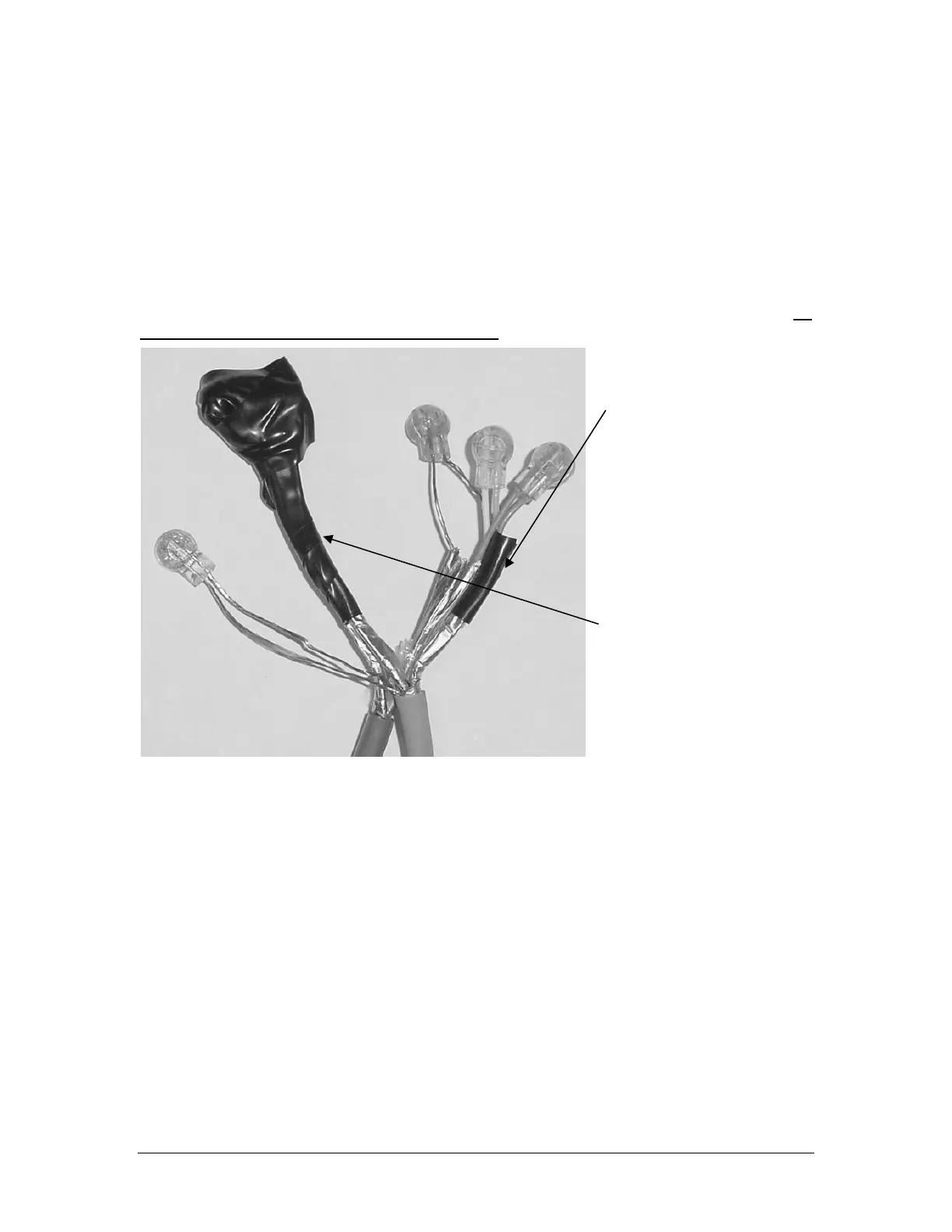

2. Use electrical tape and tape
the end of the foil on each
bundle to keep the bundles
separate.
3. Place the end of the wires
into the butt splice connectors.
Use pliers and crimp the round
part of the butt splice
connectors. There will be seven
(7) splices which includes the
four colored wires and three
shields.
4. Wrap each spliced pair with
its shield wire with electrical
tape.
5. Use the two strips of coax
seal to wrap the entire splice
after verifying operation of the
unit.
