Vantage Series 2200
Inserted Components:

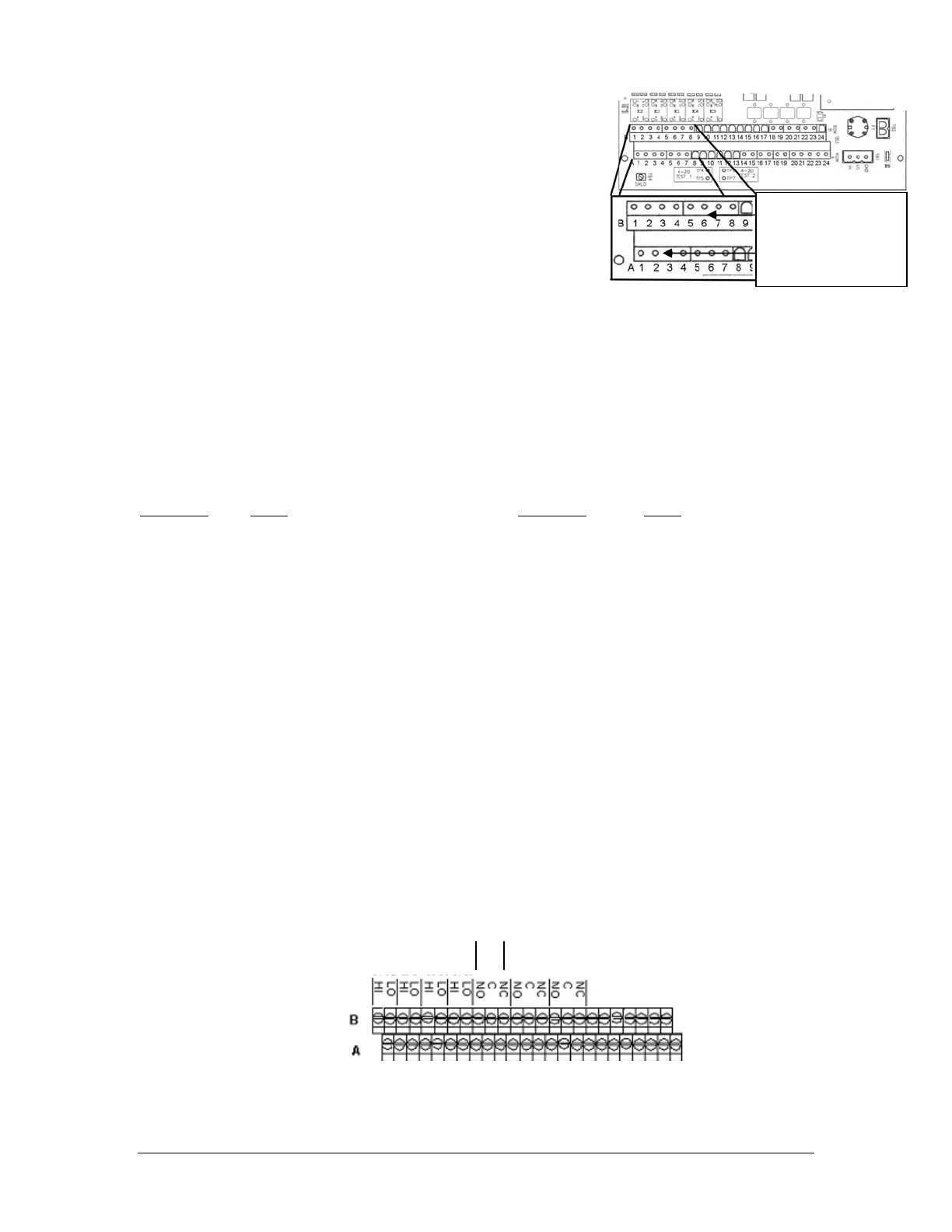

There may be a component added to the terminal strips on the Compensator
inputs. The component size and type is determined by various
Cable lengths and the style of sensor chosen. For cable lengths 5 to 150ft
A 6800pf capacitor will be installed on terminals 5 & 7 for a single sensor.
For Single Sensor: The component will be attached to Row A,
Terminals 5 & 7.
For Dual Sensors: The components will be attached to Row A,
Terminals 5 & 7 and 6 & 7.
Adding or Cutting Cable Lengths:
If adding or cutting cable lengths in the field the component style or
Value may change. Be sure to due a frequency tune on any new sensor
Or electronics that are replaced. (Page 11)
Other Wiring:
FB sensor with Grey cable: FB sensors with Orange Cable:
Belden 9365 Belden 3124A
Terminal
Wire Terminal Wire
A1 Red A1 Red
A2 Black A2 Black
A3 White A3 White
A4 Shield A4 Green & Shield
FB1 sensor with Yellow Triax cable: Belden 9222
Terminal Wire
A1 Center conductor
A2 Middle shield
A3 Outer shield
A4 Open
If the unit is supplied with the modem option, the telephone connection is made on the Relay #5 NO
(TIP) and NC (RING) terminals as shown below.
2-5
Top Row B:
For Dual Sensors Only
Bottom Row A:
For Single sensor only.
2-5
Telephone connections for modem
TIP RING
