Vantage Series 2200
Installation

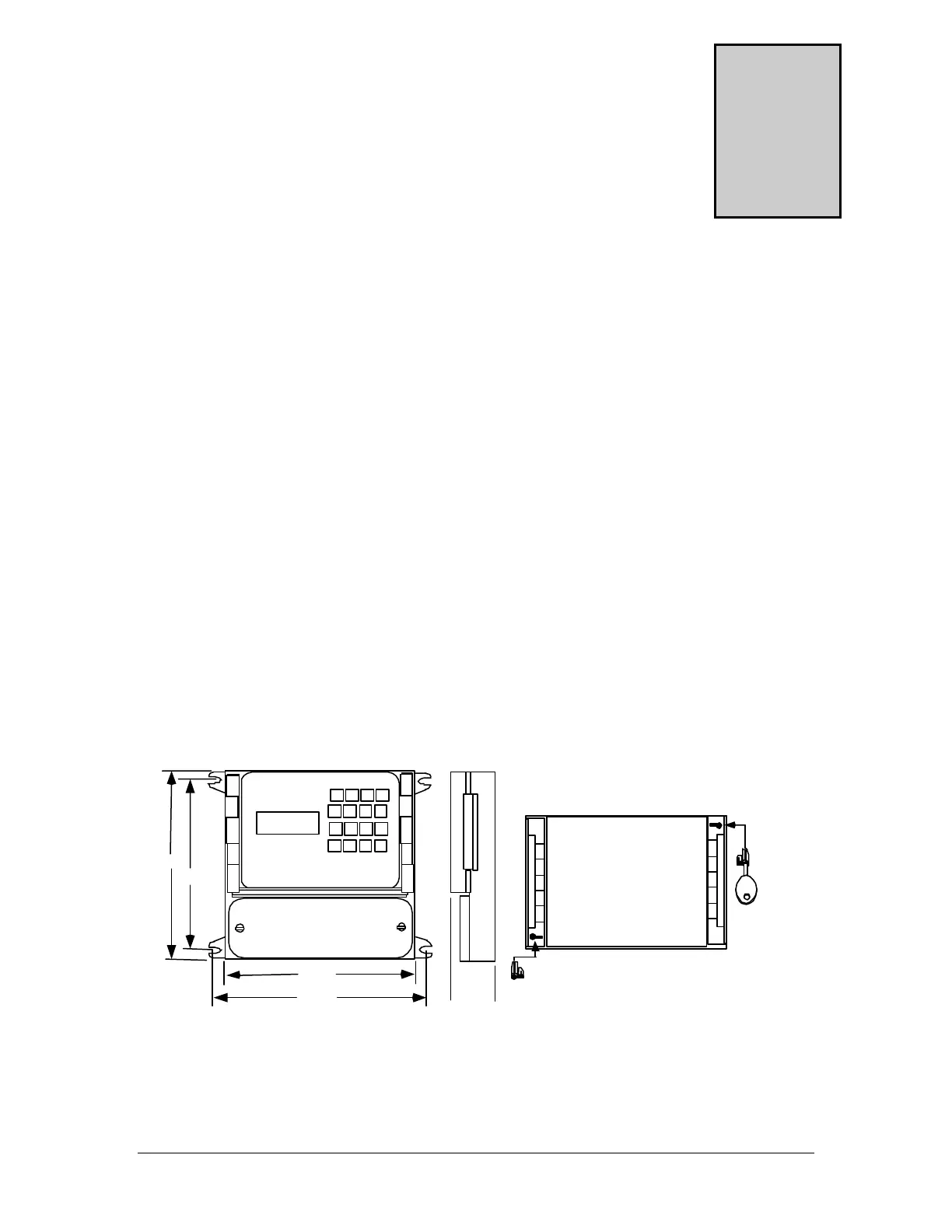

Enclosure Mounting
The enclosure is rated IP 66 (NEMA 4X). A sunshade is recommended for outdoor installation. There
are two stainless steel mounting brackets factory assembled to the enclosure. The mounting feet have slots
for ¼" bolts (4 places). The electronics should be mounted with the display at eye level or lower. There are
three ½ inch holes in the bottom of the enclosure for conduit fittings. These holes have rubber plugs
installed at the factory. The holes used for wiring must be properly prepared and sealed to maintain rating. If
you do not use all three holes for conduit, leave the rubber plugs in the holes to protect the enclosure ratings.
Opening the Enclosure:
There are two hinged door clasps on the front cover of the enclosure. To open, put thumb on one of the
hinges, pull toward the outside of the enclosure. Once the hinge pops to the outside it will lower allowing
the clasp at the bottom of the hinge to release. Swing the cover towards the front to open. The opposite side
will act as a hinge to swing the door freely. To close, clasp the bottom side of the hinge and push the top of
the hinge toward the enclosure until it locks.
Hinge Lock and Optional Door Lock
There are two plastic gray plugs supplied with the Vantage series 2200. These plugs may be used to
permanently disable one side of the hinged handles. If an optional door lock was supplied with the unit then
one side of the hinge handle should be plugged and the other side will have the key lock used. Either side
hinge handle may be disabled. Insert the gray plug into the keyhole. Warning: This will permanently
disable the hinge handle. The other side can be used for the key provided for the optional lock.
Note: The key will need to be left in the hinge handle if the door is to remain unlocked. The only way
the key can be removed is if the hinge handle is locked.
Note: When supplied with the optional modem the enclosure height is 12.875” instead of 9.319”.
Section
2
2.756"
8.25"
9.319"
8.917"
9.496"
2-1
