Eastech Flow Controls Vantage 2210 User Manual

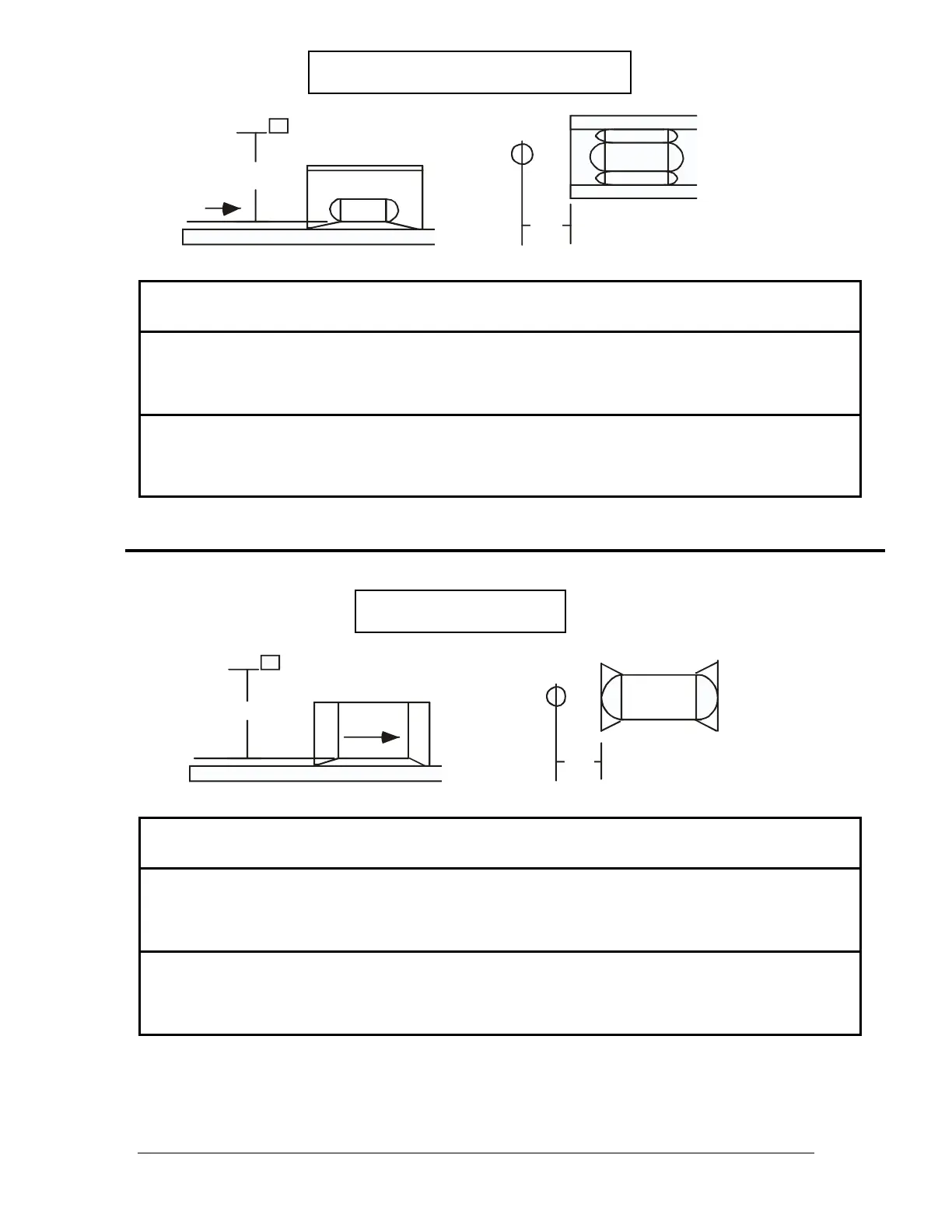

Vantage Series 2200
V Mt
Flow
Side View
H Mt
Top View
Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise
(in.) (in.) (in.) Min. Max. Max (in.)
6 3.00 17.16 130 200 5.16
8 4.00 18.77 145 400 6.77
10 5.00 20.46 175 700 8.46
12 6.00 22.15 200 1100 10.15
15 7.50 24.96 220 2000 12.96
18 9.00 27.13 270 3000 15.13
21 10.50 29.85 300 4500 17.85
24 12.00 32.77 325 6500 20.77
V M t
Flow
Side View
H Mt
Top View
Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise
(in.) (in.) (in.) Min. Max. Max (in.)
6 * 16.91 10 140 4.91
8 * 17.98 135 250 5.98
10 * 20.16 180 500 8.16
12 * 21.06 210 700 9.06
15 * 23.19 250 1200 11.19
18 * 24.77 300 1750 12.77
21 * 28.45 360 3000 16.45
24 * 29.05 400 3600 17.05
(*) HORIZONTAL MOUNTING DIMENSIONS; LOCATE SENSOR JUST UPSTREAM OF CONVERGENCE
ON ALL SIZES
3-13
LAGCO FLUMES
PALMER BOWLUS FLUMES
