CChhaapptteerr 55 SSppeecciiffiiccaattiioonnss
55..11 WWeeiigghhttss aanndd DDiimmeennssiioonnss
This chapter provides the following specifications:
• Dimensions and weights
• Electrical connections
• Rear Panel Outlet Options
Table 3. Weights and Dimensions
Model
Dimensions HXWXD (mm/inch)
Weight (kg/lb)
BPM125XX 130 x 440 x 663 / 5.1 x 17.3 x 26.1 17/38
Table 4. Input Connection Type
Model
Input Connection
BPM125XX
Hardwired (L1, L2, N, G)

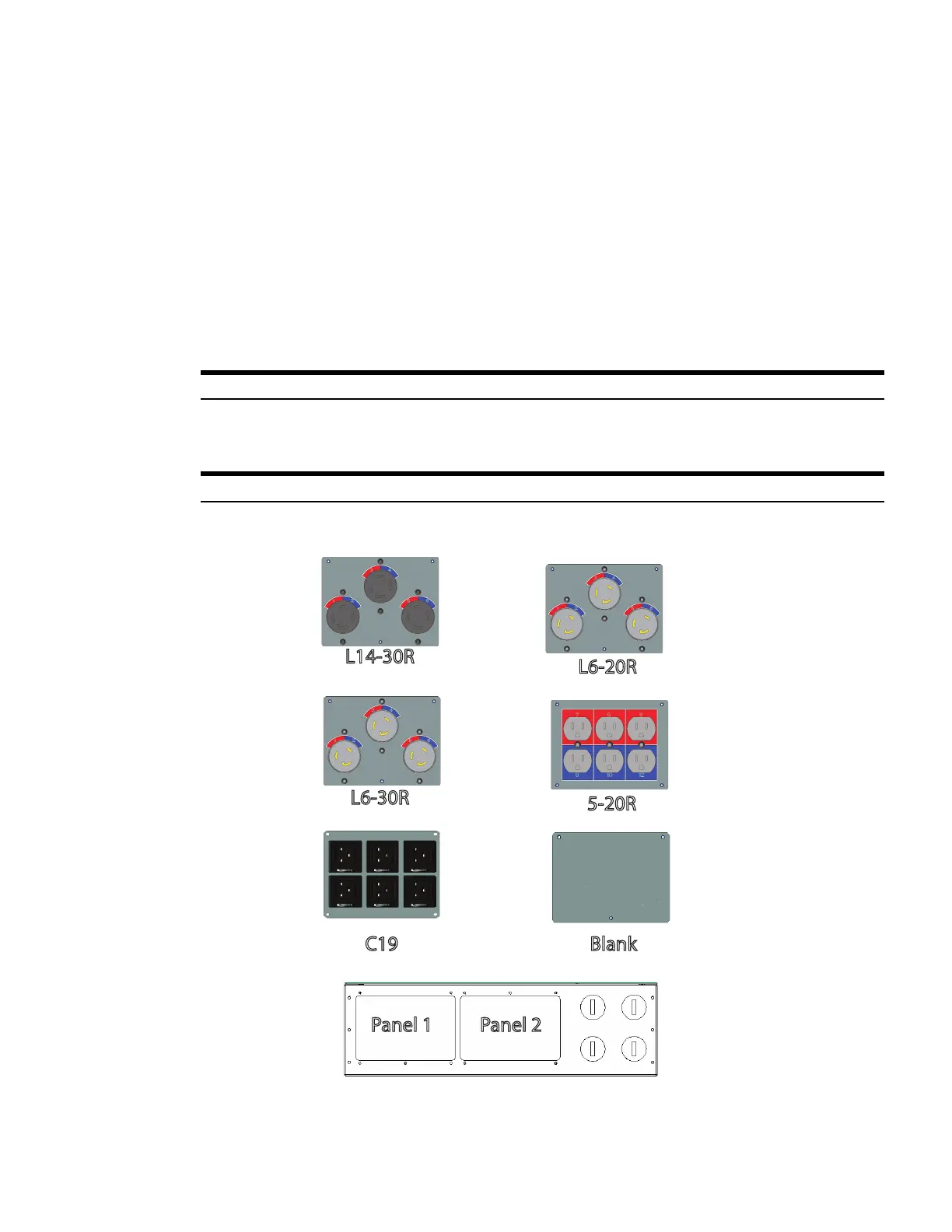

Figure 20. Rear Panel Outlet Options
L14-30R
L6-30R
L6-20R
5-20R
C19 Blank
Panel 1 Panel 2
