UPS-MOUNTED BYPASS SWITCH INSTALLATION
Eaton 9155 UPS (8–15 kVA) User's Guide S 164201553 Rev G (www.eaton.com/powerquality)
27
7. Secure the sides of the module to the L-brackets using six screws (see
Figure 17).
8. Secure the top of the module to the top cabinet using four of the screws
removed in Step 1.
9. Continue to the following section, “Wiring the MBM/PDM.”
Screws to L-Bracket
(three each side)
Screws for
Top of Module

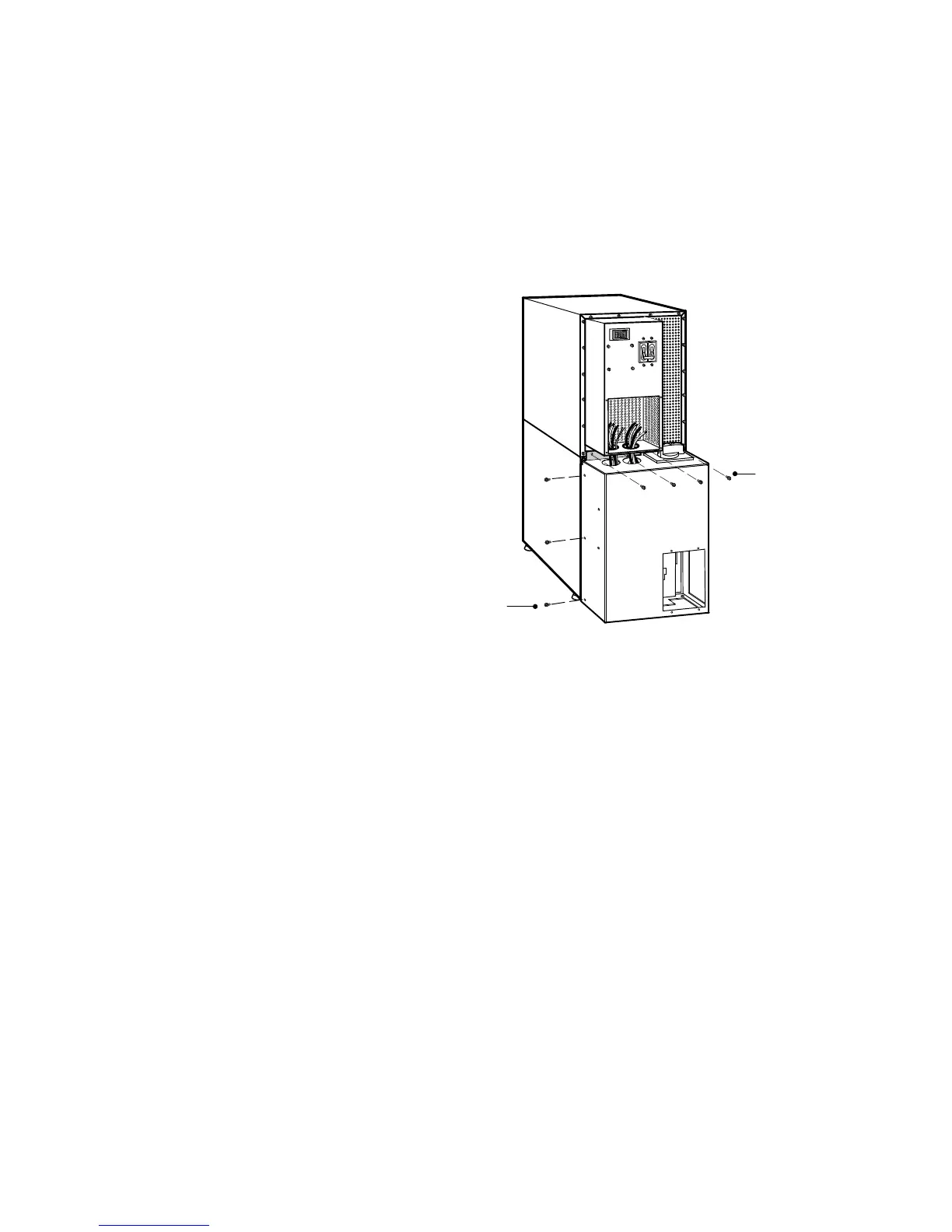

Figure 17. Securing the MBM or PDM (MBM Shown)
