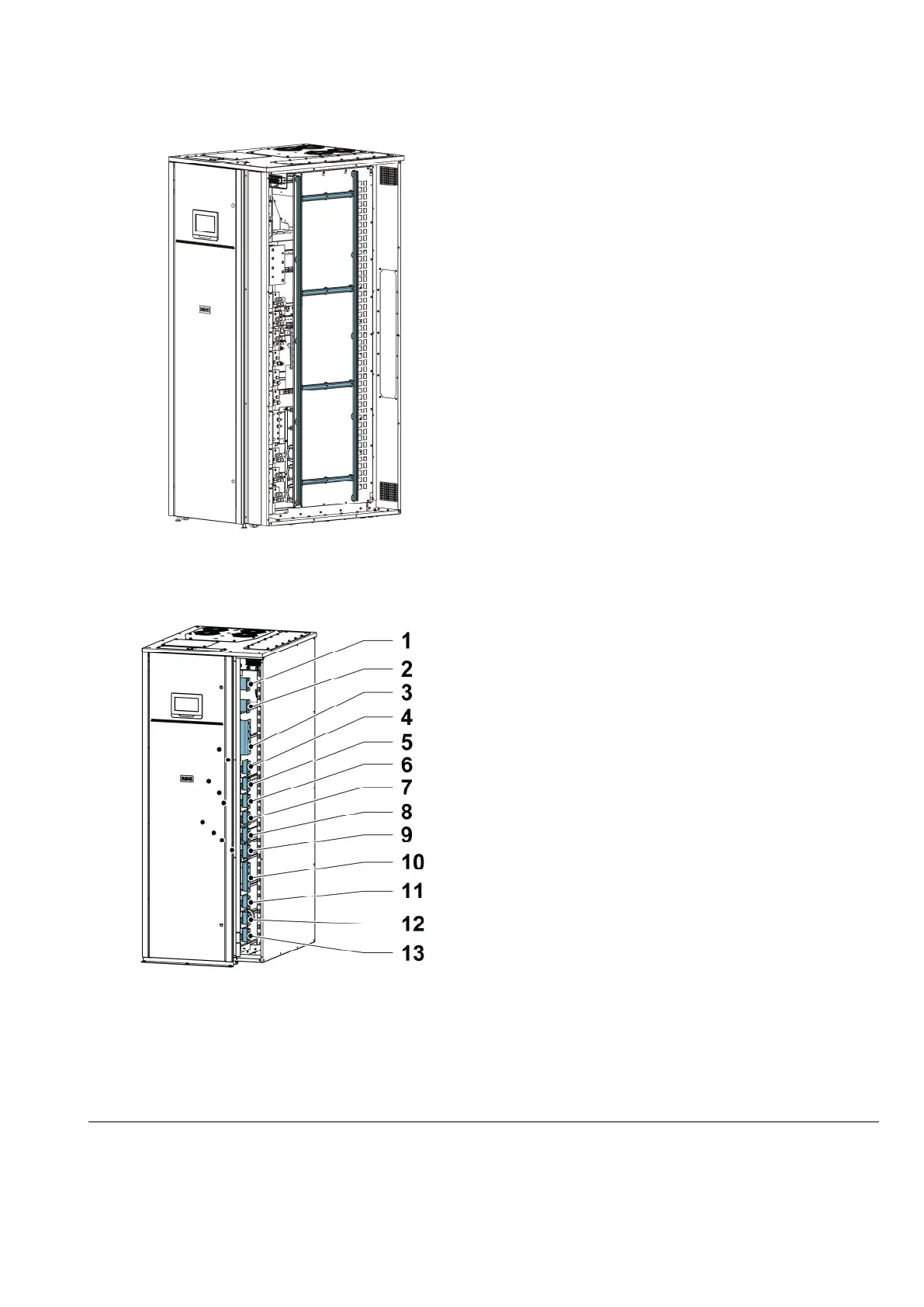

Figure 15. Cable support beams
Figure 16. Connector locations
X4 Battery X2 Bypass output
1 Batt + 7 X2:L1
2 Batt - 8 X2:L2
9 X2:L3
