2. Installation
2.4 Connection terminals
2.4 Connection terminals
Tool for all easyE4 devices:
Flat-blade screwdriver with a 3.5 x 0.6 mm blade
and for fastening on screw terminals (optional)
a tightening torque 0.5 - 0.7 Nm.
2.4.1 Cable cross-sections

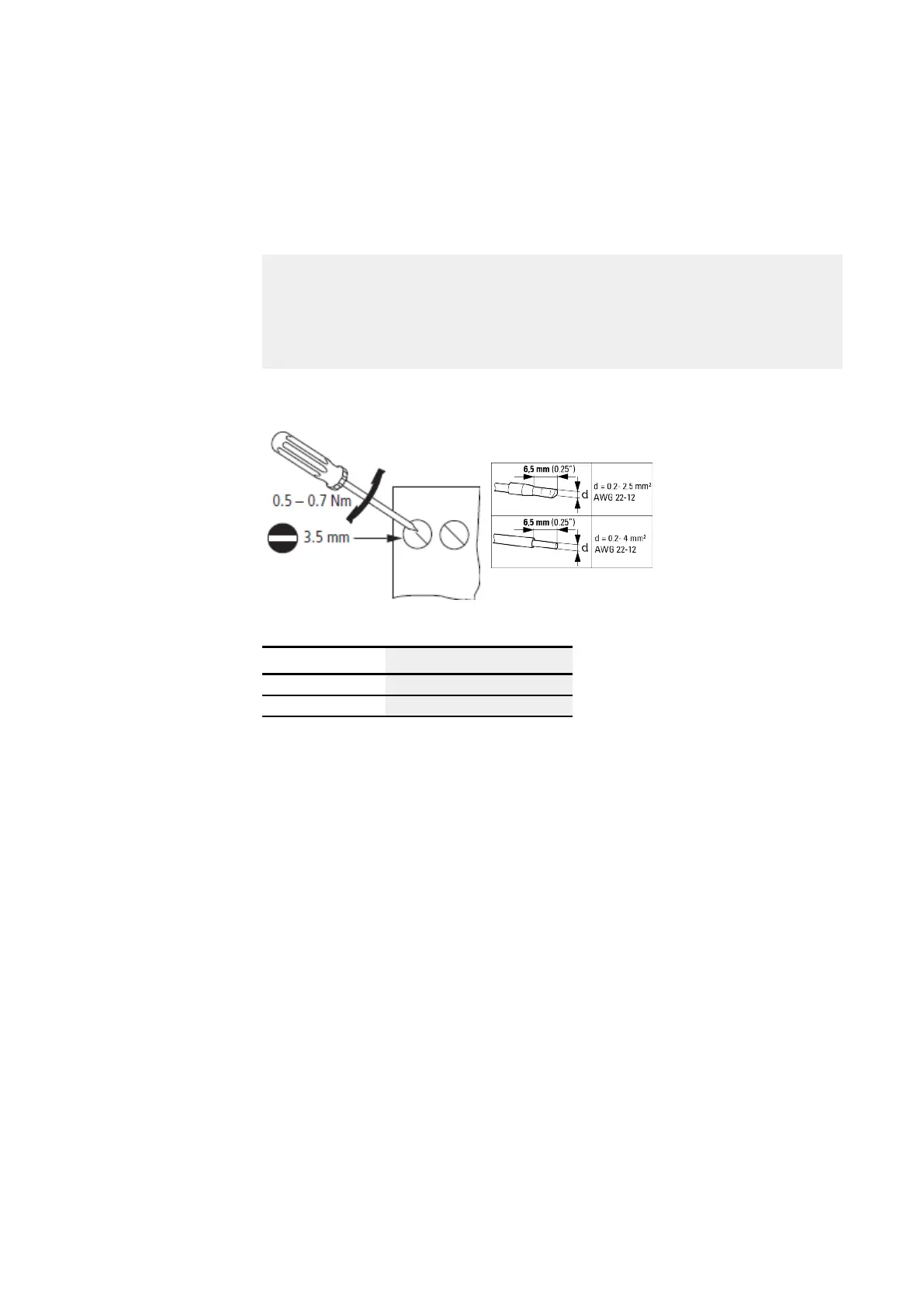

Figure 12: Screw length stripping length
Terminal capacity in mm²
solid 0.2 to 4 (AWG 22 -12)
Flexible with ferrule 0.2 to 2.5
See also
→ Section "Connecting the Ethernet cable", page 65
48
easyE4 11/18 MN050009 EN www.eaton.com
