2. Installation
2.5 External connections
2.5.3 Ethernet
Every easyE4 base device features an Ethernet port.
This Ethernet port is a Cat 5 port.
Make sure to use compatible standard RJ45 Ethernet cables only.
The Ethernet port on the base device serves as a communication interface.
The Ethernet controllers support transfer rates of 10Mbit/s and 100Mbit/s.

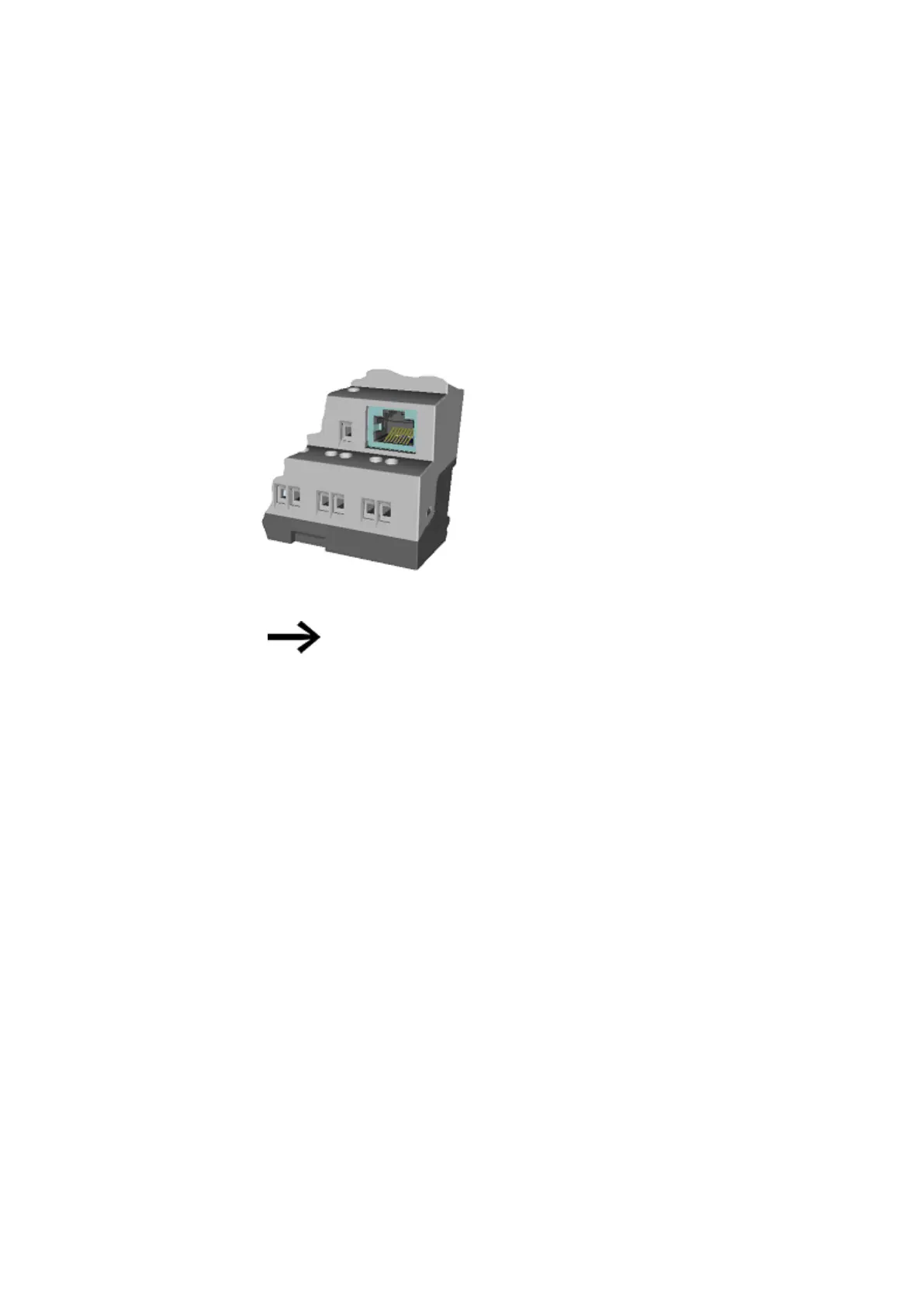

Figure 28: RJ-45 socket, 8-pole
If you integrate the EASY-E4-... into an Ethernet network, you
will need to connect the functional earth to the corresponding
terminal.
To commission the communications between the EASY-E4-... control relay and the
device to which the Ethernet cable is connected, follow the description for the con-
nected device.
64
easyE4 11/18 MN050009 EN www.eaton.com
